3.5L 24v - EcoBoost Gen2
Manufacturers
3.5L 24v - EcoBoost Gen2
Warning: Last items in stock!
New product

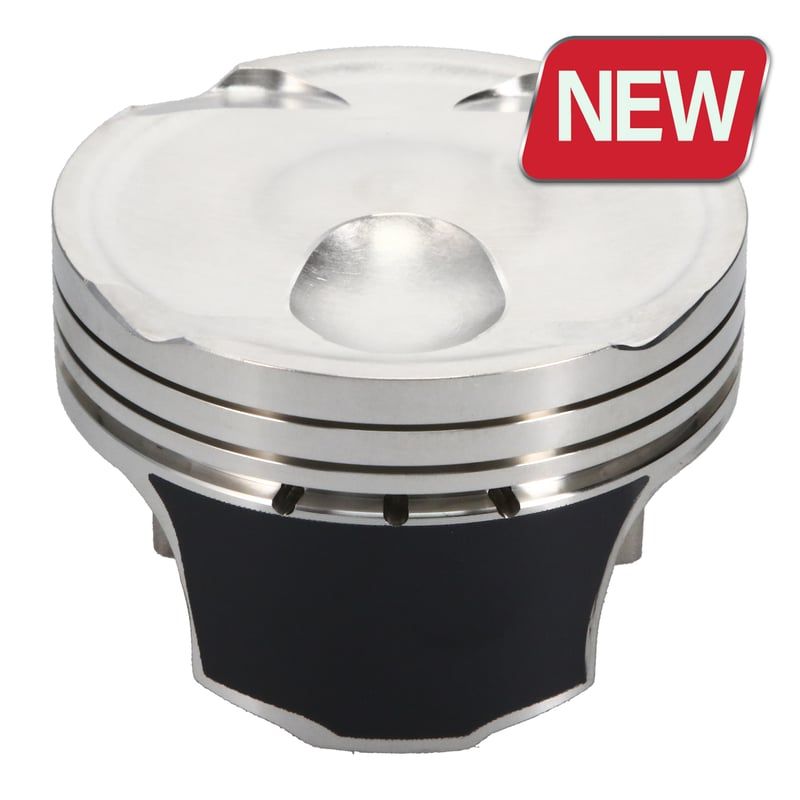

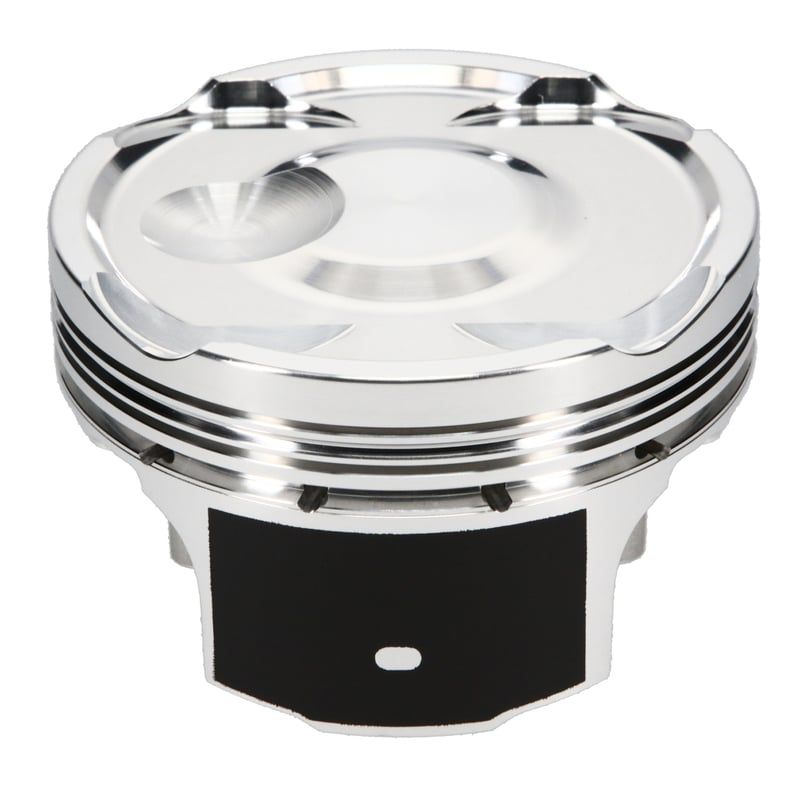

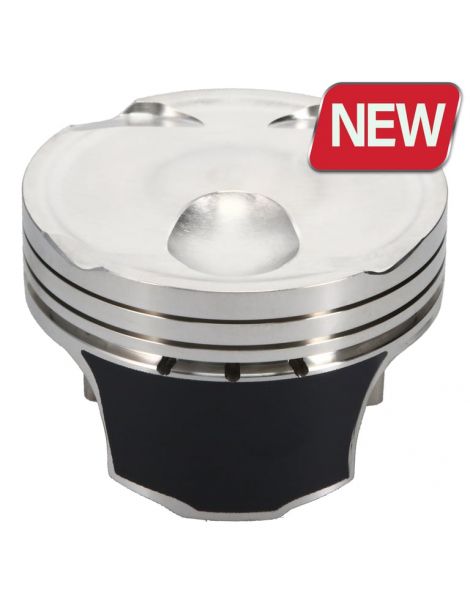

Ford 3.5 EcoBoost Gen 2 forged pistons bores 92.5-93 mm, RV 10-10.5:1, axle 23 mm. JE FSR & Wiseco ranges. Sorted table + F-150/Raptor/Limited, Expedition & Navigator compatibilities.
Specifications of the forged pistons offered by NSB Concept for Ford 3.5 L 24 v EcoBoost (Gen 2) :
| Reference piston | Bore (mm)OEM 92,5 | CROEM 10,5 :1 | pin (mm)OEM 23 | Height pin (mm)OEM 31,5 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-360928 | 92,5 | 10 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -12,5 | 385 | NC |
| JE-360932 | 92,5 | 10,5 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -19,1 | NC | NC |
| WK738M925 | 92,5 | 10,5 :1 | 23 | 31,55 | Wiseco | 2618 | Skirt | NC | -7,3 | NC | 9250XX |
| JE-360929 | 92,63 | 10 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -12,7 | 387 | NC |
| JE-360933 | 92,63 | 10,5 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -19,3 | NC | NC |
| JE-360930 | 92,75 | 10 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -12,9 | 390 | NC |
| JE-360934 | 92,75 | 10,5 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -19,4 | NC | NC |
| JE-360931 | 93 | 10 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -13,1 | 392 | NC |
| JE-360935 | 93 | 10,5 :1 | 23 | 31,5 | JE FSR | 2618 | NC | FSR | -19,7 | NC | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Ford | Expedition / MAX | U553 | 3.5 EcoBoost Gen 2 | 375–400 | 2018 – 2020 |
| Ford | F‑150 (13e Gen.) | P552 | 3.5 EcoBoost Gen 2 | 375 | 2017 – 2020 |
| Ford | F‑150 Limited | P552 | 3.5 EcoBoost HO Gen 2 | 450 | 2019 – 2020 |
| Ford | F‑150 Raptor | P552 | 3.5 EcoBoost HO Gen 2 | 450 | 2017 – 2020 |
| Lincoln | Navigator / L | U554 (T3) | 3.5 EcoBoost HO Gen 2 | 450 | 2018 – 2020 |
Manufacturer piston references (OEM):
HL3Z‑6108‑C (droite/RH), HL3Z‑6108‑D (gauche/LH)HL3Z‑6108‑E (droite/RH), HL3Z‑6108‑F (gauche/LH)HL7Z‑6108‑J (droite/RH), HL7Z‑6108‑K (gauche/LH)HL7Z‑6108‑G (droite/RH), HL7Z‑6108‑H (gauche/LH)HL3Z‑6108‑C (RH), HL3Z‑6108‑D (LH)HL3Z‑6108‑E (RH), HL3Z‑6108‑F (LH)HL7Z‑6108‑J (RH), HL7Z‑6108‑K (LH)HL7Z‑6108‑G (RH), HL7Z‑6108‑H (LH)Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
