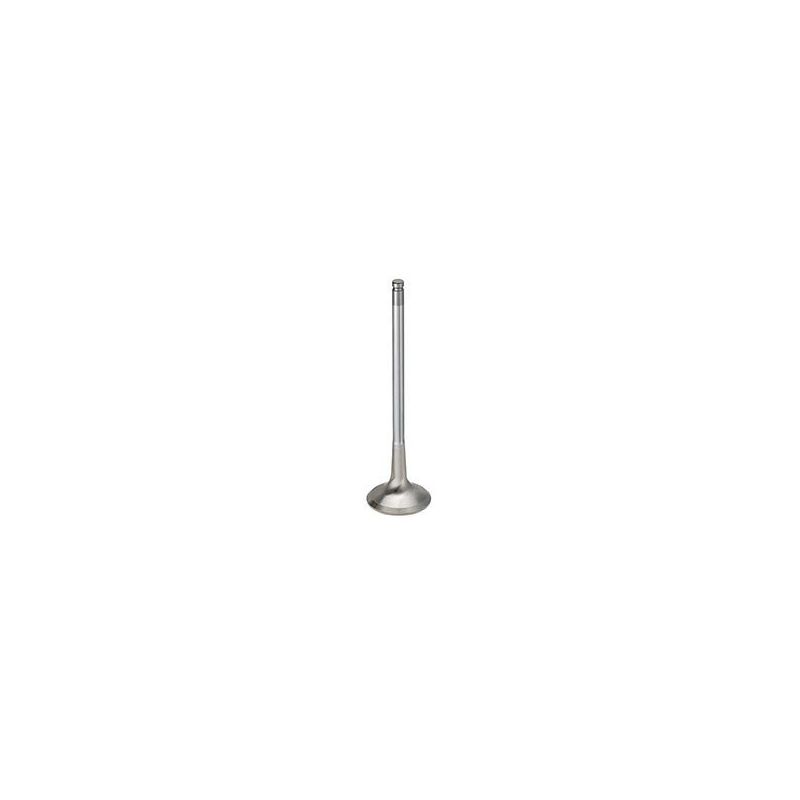

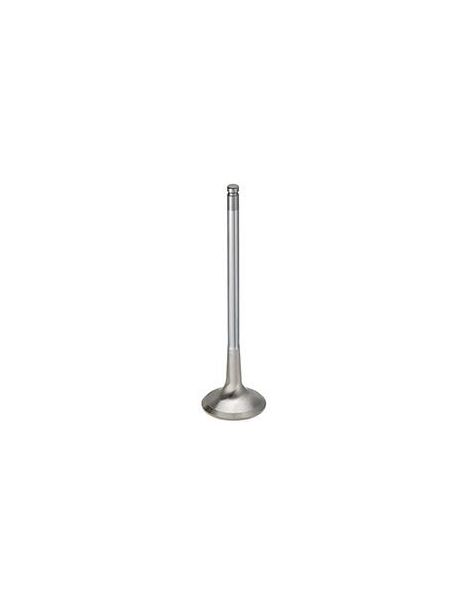

Set of 12 reinforced exhaust valves for the first generation Subaru EZ30.
The EZ30 is Subaru's 3.0 litre, 24-valve flat six. Its first generation powers the Legacy III and the Outback from 1998 to 2003, before the arrival of the version with variable inlet lift.
Its two cylinder heads hold 12 exhaust valves. SUPERTECH offers them at standard size with a 30.5 mm head, a 5.45 mm stem and a 105.25 mm length.
The metal of an exhaust valve head runs between 760 and 870 °C on a naturally aspirated engine like the EZ30, and goes past 1,000 °C as soon as a supercharger or a turbo is added. The seat removes about 75 % of that heat and the guide about 20 %. An EV8 family steel, the benchmark used for the original, drops from 550 MPa at 600 °C to 300 MPa at 800 °C: the head heats up, fatigues, distorts and the seat seal deteriorates.
The SEVI-1043D-12 is Inconel, a nickel-based superalloy that keeps 860 MPa at 732 °C and 554 MPa at 816 °C, about 85 % more than EV8 steel around 800 °C: a useful margin on a six-cylinder run hard at high rpm or with forced induction.
| Part number | Brand | Size | Head Ø | Stem Ø | Length | Grooves | Material |
|---|---|---|---|---|---|---|---|
| SEVI-1043D-12 | SUPERTECH | Standard | 30.5 mm | 5.45 mm | 105.25 mm | Inconel |
A single part number, at the 30.5 mm standard size, with a dished head.
| Part | Subaru original | Reinforced |
|---|---|---|
| Collets | ||
| Valve stem seals | VS-SU5.5-EI-16 | |
| Valve guide |
On reassembly, check that the collets engage properly in the groove of the valves.
At standard size, the 12 exhaust seats are simply reground before fitting.
Replace the valve stem seals at the same time and fit the 12 valves from the same set.
 | SUPERTECH Performance, a Californian maker of competition valves for more than thirty years, offers for the first generation EZ30 an Inconel exhaust valve at standard size. |
A single part number covers this engine:
| Criterion | Option 1 | Option 2 |
|---|---|---|
| Size | Standard, 30.5 mm Reground seats. SEVI-1043D-12. | |
| Material | Inconel SEVI-1043D-12, the only version offered for this generation. |
| Model | Engine code | Power | Years |
|---|---|---|---|
| Legacy III (BE) 3.0 H6 AWD (BEE) | EZ30 | 1998-2003 | |
| Legacy III Break (BH) 3.0 H6 AWD (BHE) | EZ30 | 2000-2003 | |
| Outback (BH) 3.0 H6 AWD (BHE) | EZ30 | 2000-2003 |
OEM part number (exhaust valve):
With the EZ30 cylinder heads off, replace the inlet valves and the valve stem seals too.
| Inlet valves Subaru Legacy Outback EZ30 → |
