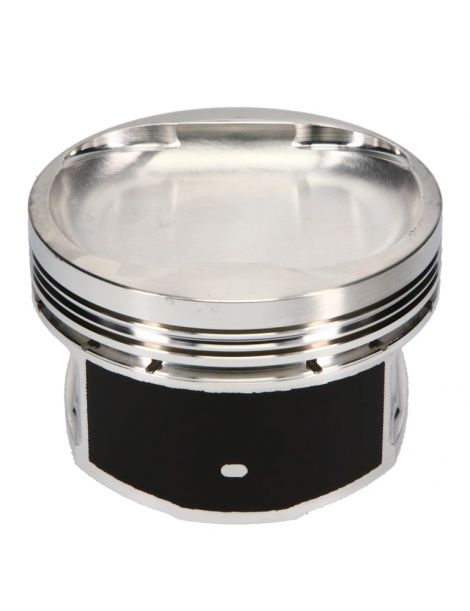

Reduced price! Pistons forgés 2.2L 16v 5F-SE avec culasse 3S-GTE Toyota View larger

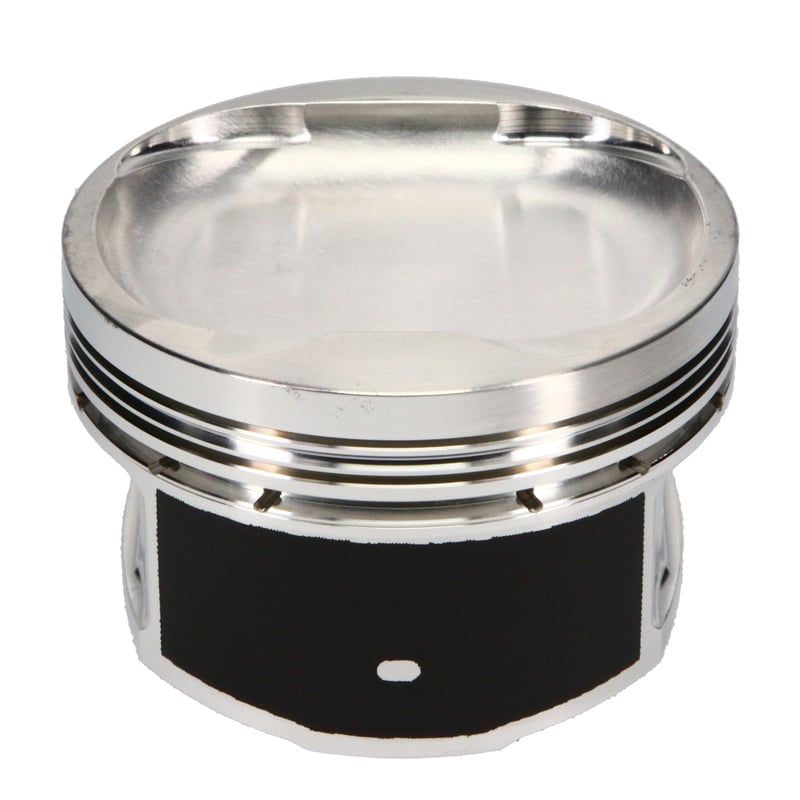

Forged pistons 2.2L 16v 5F-SE with 3S-GTE cylinder head Toyota

New product

Toyota 5S-GTE forged piston table (5S-FE block + 3S-GTE cylinder head): O 87.10 mm, axle 22 mm, CH 32.50 mm, RV 9.5:1. Compatibilities, donor vehicles and OEM piston references.

More details

800,89 € tax incl.

-25%

1 067,86 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  •

    Specifications of the forged pistons offered by NSB Concept for Toyota 2.2 L 16 V — block 5S‑FE with cylinder head 3S‑GTE (installation 5S‑GTE) :

    ReferenceOEM Bore
    87,10 mm    		OEM CR 9,5 :1OEM Pin
    22 mm    		Height OEM Pin
    32,50 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    JE-25206487.59:12232.5JE RoundNC2618Round-11.6338NC
    JE-36146988.09:12232.5JE RoundNC2618Round-12.5341NC


    Compatibility (engine codes):

    • Base block: 5S‑FE (87.1 mm) — Cylinder head 3S‑GTE (all generations). Common use in 5S‑GTE for MR2/Celica swap.


    original vehicles (bases and donors):

    BrandModelEngine codePowerYears
    ToyotaCaldina ST215 GT‑T3S-GTE260 hp1997 – 2001
    ToyotaCaldina ST246 GT‑Four3S-GTE260 hp2002 – 2007
    ToyotaCamry Solara XV205S-FE135–136 hp1999 – 2001
    ToyotaCamry XV10 (SXV10)5S-FE130–135 hp1991 – 1996
    ToyotaCamry XV20 (SXV20)5S-FE133–136 hp1996 – 2001
    ToyotaCelica GT‑Four ST1853S-GTE225 hp1989 – 1993
    ToyotaCelica GT‑Four ST2053S-GTE242–255 hp1994 – 1999
    ToyotaCelica ST204 (6e Gen.)5S-FE130–135 hp1993 – 1999
    ToyotaMR2 SW20 Turbo3S-GTE200–245 hp1990 – 1999
    ToyotaMR2 SW21 (W20) N/A5S-FE130 hp1991 – 1995


    OEM piston references :

    • Toyota 5S‑FE: 13101‑74130 / 13101‑74080 (Gen. Celica/MR2/Camry 1990–1996); 13101‑74220‑01 / ‑02 / ‑03 (Camry XV20/Solara 1997–2001) — depending on grade/rectification.
      Toyota 3S‑GTE (donor cylinder head): refer to references 3S‑GTE by generation (ST185/ST205/Caldina) for the valves/cylinder head; pistons not affected.

      Check systematically via VIN in the Toyota EPC (market, selection grade 1/2/3 and oversize STD/0.50).

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.

    acteristics of Forged Pistons Offered by NSB Concept for Toyota 2.2 L 16 V Block 5S FE with Cylinder head 3S GTE (5S GTE assembly):

    ReferenceBore OEM
    87.10mm    		CR OEMPin OEM
    22mm    		OEM Pin Height
    32.50mm    		RangeCoatingAluminiumForgingDomeWeightRings
    JE-25206487.59:12232.5JE RoundNC2618Round-11.6338NC
    JE-36146988.09:12232.5JE RoundNC2618Round-12.5341NC


    COMPatibilities (engine codes):

    • Base Block: 5S FE (87.1mm) Cylinder head3S GTE(all generations). Common use in swap5S GTEfor MR2/Celica.


    OEM vehicles (bases and donors):

    BrandModelEngine CodePowerYears
    ToyotaCaldina ST215 GT T3S-GTE260 hp1997 2001
    ToyotaCaldina ST246 GT Oven3S-GTE260 hp2002 2007
    ToyotaCamry Solara XV205S-FE135-136 hp1999 2001
    ToyotaCamry XV10 (SXV10)5S-FE130-135 hp1991 1996
    ToyotaCamry XV20 (SXV20)5S-FE133-136 hp1996 2001
    ToyotaCelica GT Four ST1853S-GTE225 hp1989 1993
    ToyotaCelica GT Four ST2053S-GTE242-255 hp1994 1999
    ToyotaCelica ST204 (6th gen.)5S-FE130-135 hp1993 1999
    ToyotaMR2 SW20 Turbo3S-GTE200-245 hp1990 1999
    ToyotaMR2 SW21 (W20) N/A5S-FE130 hp1991 1995


    Pistons manufacturer references (OEM):

    • Toyota 5S FE: 13101-74130 / 13101-74080 (gen. Celica/MR2/Camry 1990-1996); 13101-74220 01 / 02 / 03 (Camry XV20/Solara 1997-2001) according to grade/rectification.
    • Toyota 3S GTE(Donor cylinder head): refer to the 3S GTE references by generation (ST185/ST205/Caldina) for the Valves/Cylinder head; Pistons not affected.

    Systematically check via VIN in the Toyota EPC (market, selection grade 1/2/3 and premium STD/0.50).

    Attention:before any assembly, please check the integrity and conformity of each component of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
