2.5L 16v - 2AR-FE
Manufacturers
2.5L 16v - 2AR-FE
Warning: Last items in stock!
New product

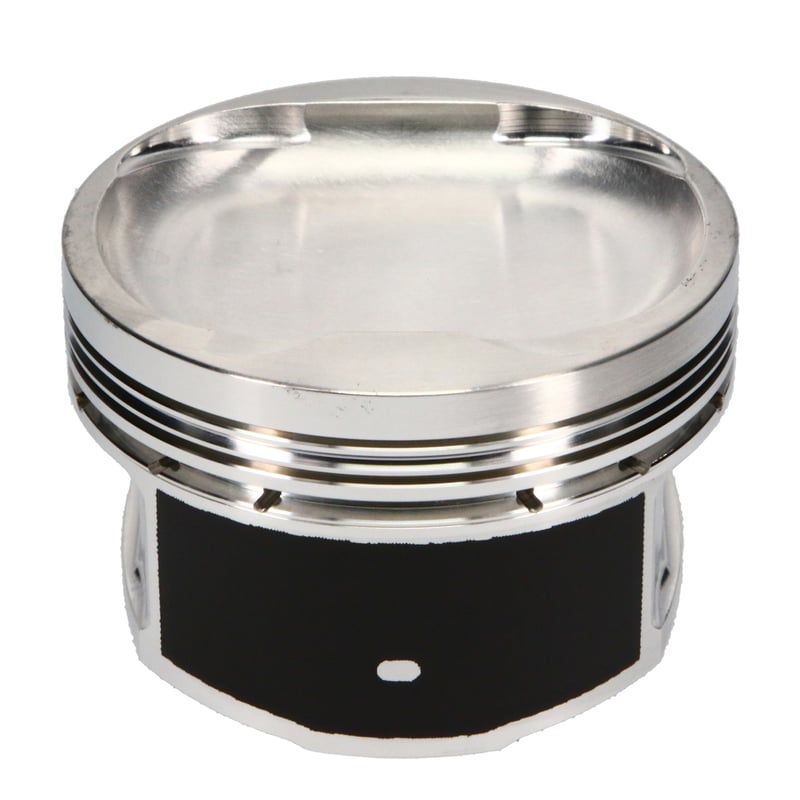

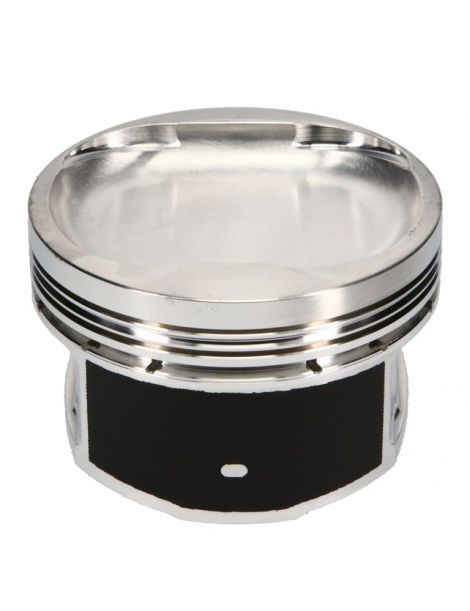

2AR-FE forged pistons: Table O90-90.5, RV 9-11:1, pin 22, CH 34.8, alloy 2618 (JE). Compatibilities & vehicles + OEM Toyota piston references.
Specifications of the forged pistons offered by NSB Concept for Toyota 2.5 L 16 V 2AR-FE :
| Reference | OEM Bore 90,00 mm | OEM CR 10,4 :1 | OEM Pin 22 mm | Height OEM Pin 34,80 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-310886 | 90.0 | 9:1 | 22 | 34.8 | JE Round | NC | 2618 | Round | -26.7 | 358 | NC |
| JE-310887 | 90.0 | 11:1 | 22 | 34.8 | JE Round | NC | 2618 | Round | -11.1 | 348 | NC |
| JE-310888 | 90.5 | 9:1 | 22 | 34.8 | JE Round | NC | 2618 | Round | -27.5 | 360 | NC |
| JE-310889 | 90.5 | 11:1 | 22 | 34.8 | JE Round | NC | 2618 | Round | -11.8 | 350 | NC |
Compatibility (engine codes):
Original vehicles equipped with the 2AR-FE :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Lexus | ES 250 (XV60) | 2AR-FE | ≈ 181 hp | 2012 – 2018 |
| Scion | tC (AT20) | 2AR-FE | 180 hp | 2011 – 2016 |
| Toyota | Alphard (AH30) | 2AR-FE | ≈ 182 hp | 2015 – 2023 |
| Toyota | Camry (XV40) | 2AR-FE | 171–181 hp | 2009 – 2011 |
| Toyota | Camry (XV50) | 2AR-FE | 177–181 hp | 2011 – 2017 |
| Toyota | RAV4 (XA30) | 2AR-FE | 181 hp | 2008 – 2012 |
| Toyota | RAV4 (XA40) | 2AR-FE | 178 hp | 2013 – 2018 |
| Toyota | Vellfire (AGH40) | 2AR-FE | ≈ 182 hp | 2015 – 2023 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
