Reduced price! Pistons forgés 2.3L 8v B23A Volvo View larger

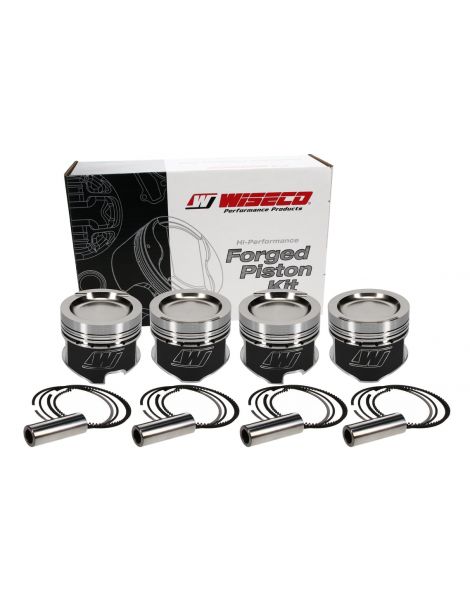

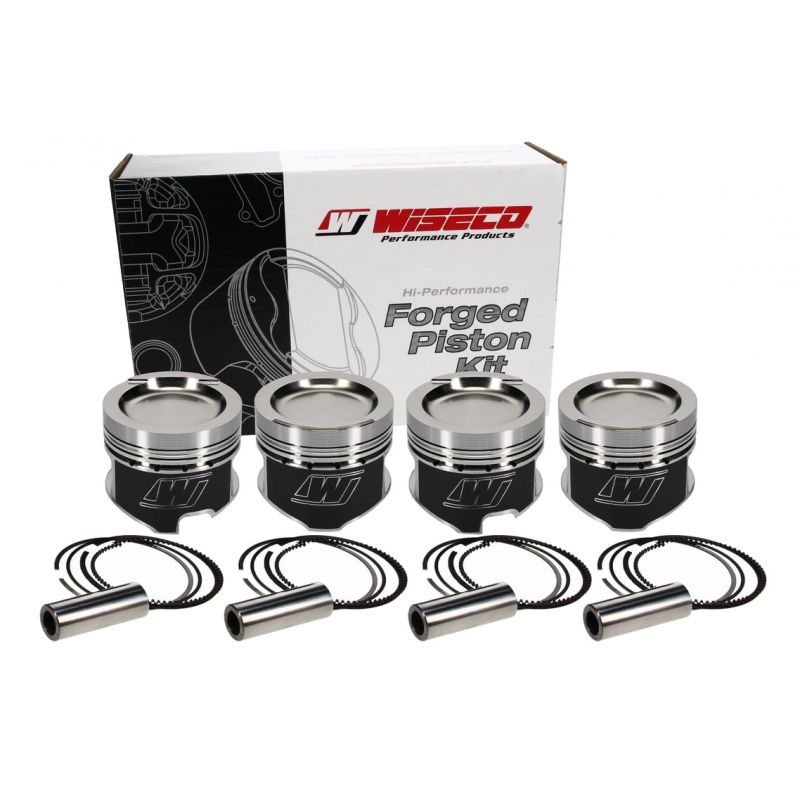

Forged Pistons 2.3L 8v B23A Volvo

New product

Wiseco forged piston kit for Volvo 2.3L 8v B23A (96-97 mm bore, 24 mm pin, 46.38 mm stroke, -14 cc dome). Engine code B23A. Compatible with Volvo 240 sedan & estate (1980-1984).

More details

653,91 € tax incl.

-25%

871,88 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Volvo 2.3 L 8 V B23A :

    ReferenceOEM Bore
    96,00 mm    		OEM CR 9,0–10,3 :1OEM Pin
    24 mm    		Height OEM Pin
    46,38 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    WKE208M9696.08:12446.38WisecoSkirt2618NC-14.0NC9600XX
    WKE208M962596.258:12446.38WisecoSkirtNCNC-14.0NC9625XX
    WKE208M96596.58:12446.38WisecoSkirtNCNC-14.0NC9650XX
    WKE208M9797.08:12446.38WisecoSkirt2618NC-14.0NC3819XH


    Compatibility (engine codes):

    • Volvo B23A (2.3L 8v SOHC, carburateur)


    Original vehicles equipped with the B23A 2.3 8V :

    BrandModelEngine codePowerYears
    Volvo240 Combi (P245) 2.3B23A112 hp1980 – 1984
    Volvo240 Sedan (P242/P244) 2.3B23A112 hp1980 – 1984


    OEM piston references :

    • 272068 — STD piston (marquage selection) for B23A/B23E (environ 1979–1984).
    • 272036 — Reference replacede/supersession de 272068 (depending on concession).
    • 272069 — piston +0,03 mm (oversize) for B23A/B23E (env. 1979–1984).

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
