2.2L 16v - Z22SE
Manufacturers
2.2L 16v - Z22SE
Warning: Last items in stock!
New product

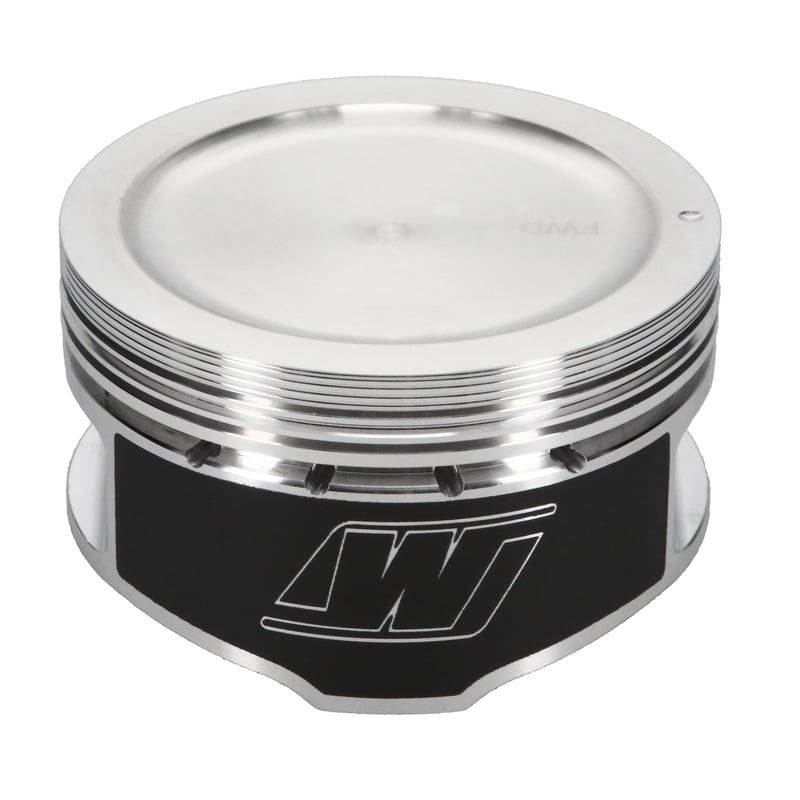

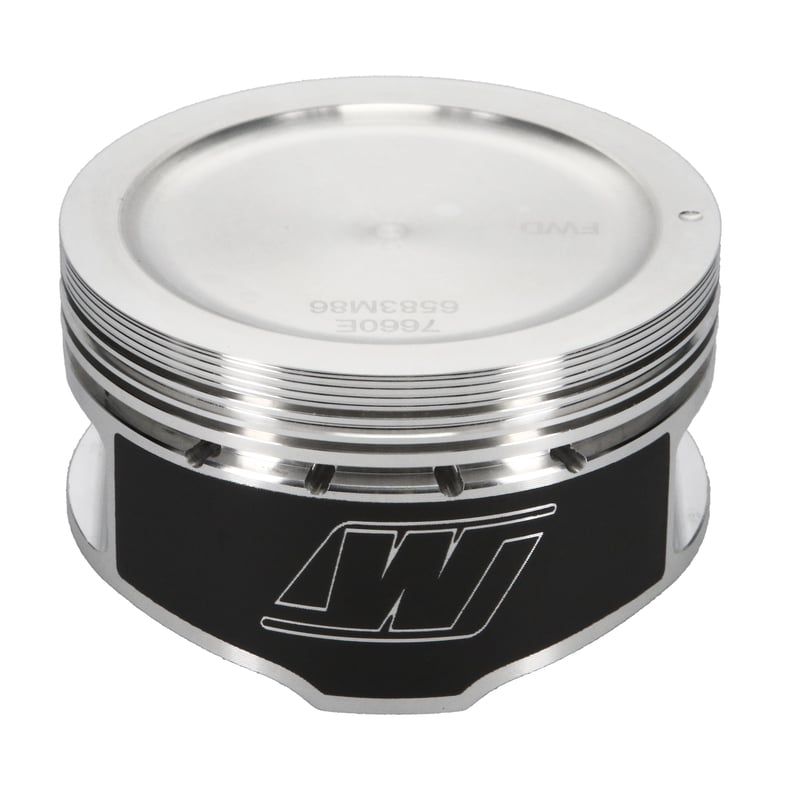

Opel/Vauxhall Z22SE 2.2 L 16v forged pistons: bores O 86-86.5 mm, RV 8.9-10.0:1, axle 20 mm. Applications: Astra G, Zafira A, Speedster/VX220. Ref. OEM piston: 90537911.
Features of forged pistons for 2.2L 16v Z22SE engines:
| Reference | Bore (mm) | VR | Axis (mm) | Axis height (mm) | Range | Treatment | Aluminum | Forging | Dome volume (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK582M86 | 86 | 10:1 | 20 | 26.75 | Wiseco | Skirt | 2618 | 0 FT | 8600XX | ||
| WK583M86 | 86 | 8.9:1 | 20 | 26.75 | Wiseco | Skirt | 2618 | -8 | 8600XX | ||
| WK582M865 | 86.50 | 10:1 | 20 | 26.75 | Wiseco | Skirt | 2618 | 0 FT | 8650XX | ||
| WK583M865 | 86.50 | 8.9:1 | 20 | 26.75 | Wiseco | Skirt | 2618 | -8 | 8650XX |
compatible vehicles:
| Builder | Model | Years |
|---|---|---|
| Opel / Vauxhall | Astra G 2.2 16v (Z22SE) | 2000-2004 |
| Opel / Vauxhall | Zafira A 2.2 16v (Z22SE) | 2001-2005 |
| Opel / Vauxhall | Speedster / VX220 2.2 16v (Z22SE) | 2000-2005 |
Piston manufacturer references (OEM):
Manufacturer references for
pistons (bare or equipped with rings).
| Builder | Model | Reference | Designation |
|---|---|---|---|
| Opel / GM | Astra G 2.2 16v Z22SE STD 86.00 | 90537911 | Piston, pin & rings STD (PNC 6 22 049; Prod. 90537852) |
| Opel / GM | Zafira A 2.2 16v Z22SE STD 86.00 | 90537911 | Piston, pin & rings STD (PNC 6 22 049; Prod. 90537852) |
| Opel / GM | Speedster / VX220 2.2 16v Z22SE STD 86.00 | 90537911 | Piston, pin & rings STD (PNC 6 22 049; Prod. 90537852) |
Warning: before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
