Forged connecting rods Volvo B5204T / B5254 2.0 & 2.5 20V (white block) for forged pistons

The Volvo 2.0 & 2.5 20V “white block” engine (B5204T2 / B5254)

Volvo’s “white block” is the modular inline-five family introduced in 1991 on the 850. All-aluminium, with double overhead camshafts and four valves per cylinder (20V), it comes as a turbocharged 2.0L (B5204T2, 1,984 cc, 81 mm bore) and a 2.5L 20V (B5254, 2,435 cc, 83 mm bore x 90 mm stroke), in both naturally aspirated and turbo forms. Transverse layout with Bosch or Siemens management: this block built the toughness reputation of 1990s and 2000s Volvos.

It powers the 850, S70, first-generation V70, C70 and XC70, with outputs of about 165 to 170 hp naturally aspirated, 180 hp on the 2.0 turbo (B5204T2) and up to 193 hp on the 2.5 turbo (B5254T). Praised for its strong bottom end and high tuning potential, it readily accepts more boost; to make high power reliable, the original rods are replaced with forged 4340-steel connecting rods.

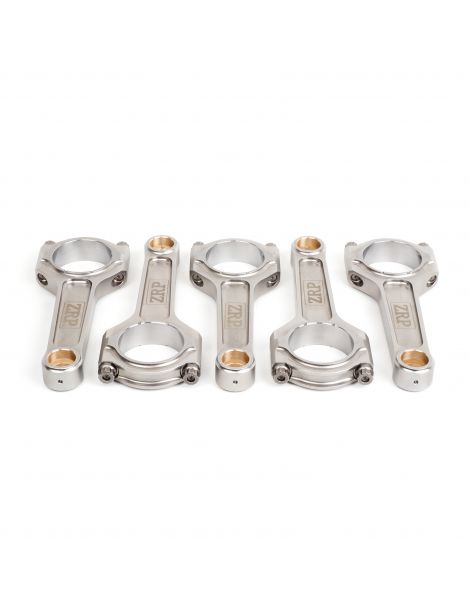

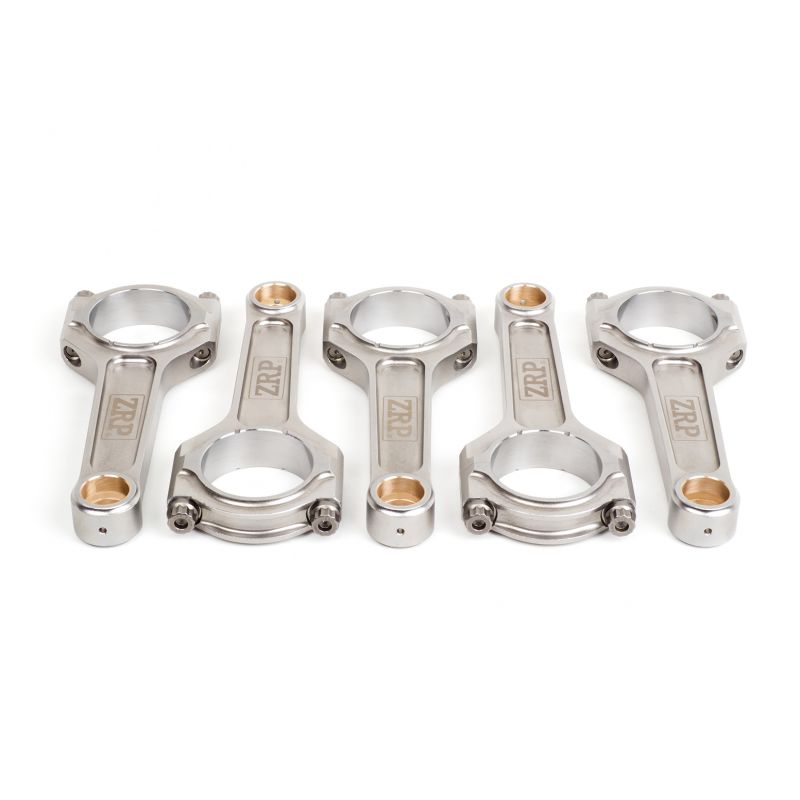

Forged connecting rods

Machined from high-strength 4340 steel, these reinforced forged rods secure the bottom end as soon as power rises. They become essential when fitting forged pistons, raising the rev limit, increasing boost pressure or gaining displacement, all cases where the white block’s original rod reaches its limits.

Built to withstand the heavy loads of tuned engines (factory turbo or sharper builds), they suit every discipline (rally, drift, drag, circuit and track days, hillclimb, time attack) and support Stage 2, Stage 3 and Stage 4+ builds, up to full competition engines.

Technical specifications of the Volvo 2.0 & 2.5 20V forged connecting rods

Torque and bolt stretch

Manufacturers recommend the stretch-gauge method as the reference: the instructions supplied with the kit always take precedence. The torque figures correspond to assembly with ARP lubricant.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

	I-beam profile. With its thinner central section, the I-beam rod is lighter: less inertia and freer rev pick-up. It is the preferred profile on modern turbo engines like the N54. Its I-HD (Heavy Duty) version is a reinforced variant, designed for higher loads.
	I-3P profile (3-pocket I-beam, Boostline). Patented profile that keeps the lightness of an I-beam while adding triangulated reinforcements on the big end: bending resistance about 60% higher than an H-beam. Ideal on heavily boosted engines.

How to choose your rod bolts?

The rod bolt is one of the most heavily stressed parts in the engine. The key is to match the ARP grade to the real use of the build, then to strictly follow the assembly torque and stretch.

	ARP 2000 (tensile strength ~220,000 psi, i.e. ~1,517 MPa) is the high-performance standard. Suited to builds up to 150 hp per cylinder with 5/16" bolts or 200 hp per cylinder with 3/8" bolts, and up to 8,500 rpm, it is the most common grade in circuit, track days, drift, rally, drag and hillclimb, recognised for its strength, reliability and versatility, with no particular storage constraints.
	L19 (tensile strength ~260,000 psi, i.e. ~1,793 MPa) is designed for engines pushed to the extreme, up to 200 hp per cylinder with 5/16" bolts or 250 hp per cylinder with 3/8" bolts, and up to 10,000 rpm: very high boost pressure, sustained high rpm and high cylinder pressure. It is the choice for big-power builds: drag racing, drift, rally and circuit use. Caution: sensitive to corrosion and hydrogen embrittlement, it must always be stored and fitted oiled, away from moisture.
	CA625+ (Custom Age 625+, tensile strength 260,000 to 280,000 psi, i.e. ~1,793 to 1,931 MPa) is ARP’s premium alloy. With very high strength, it targets the most extreme builds (over 200 hp per cylinder with 5/16" bolts or over 250 hp per cylinder with 3/8" bolts, beyond 10,000 rpm), while offering better resistance to atmospheric corrosion and oxidation than ARP 2000, and remaining immune to hydrogen embrittlement (without the storage constraints of L19). Ideal for the most demanding rod and head-stud applications.

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands offered

	ZRP, a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Available in I-beam or H-beam profile with ARP 2000, L19 or Custom Age 625+ bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift.
	BOOSTLINE (Wiseco group), a forged connecting rod range from the American Wiseco group, a benchmark since 1941. Its patented 3-pocket design combines the rigidity of an I-beam with the robustness of an H-beam. Forged from 4340 steel and machined in the USA, they come with ARP 2000 bolts (Custom Age 625+ optional) and are built for boosted engines.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility - Volvo 2.0 & 2.5 20V (white block)

These forged connecting rods fit the Volvo “white block” five-cylinder 2.0 and 2.5 20V engines (naturally aspirated and turbo):

OEM reference: 1270483 (set of 5 connecting rods).

Why it’s the most cost-effective solution?

When a stock bottom end fails (a broken, bent or scored rod), returning to factory specification means replacing both rods and pistons, often damaged together. The bill climbs fast for a simple repair.

For an equivalent or even lower budget, fitting forged 4340-steel rods with forged pistons delivers far greater reliability and safety margin, plus real headroom to raise power. It has been the choice of European engine builders for over 15 years.

For the same budget: more reliability, more potential, more longevity.
