2.0L 16v - N20B20
Manufacturers
2.0L 16v - N20B20
Warning: Last items in stock!
New product

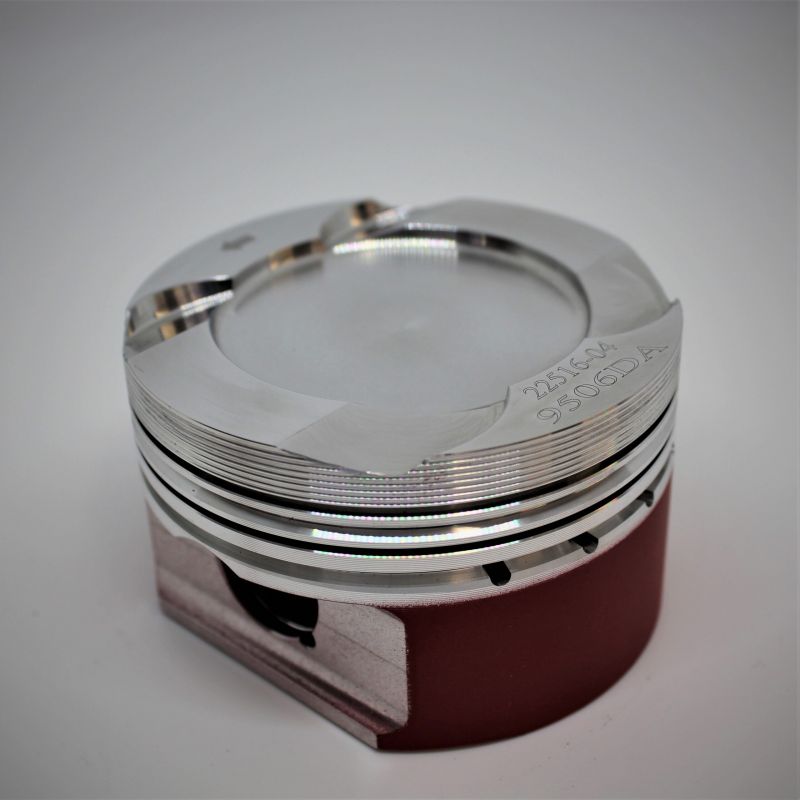

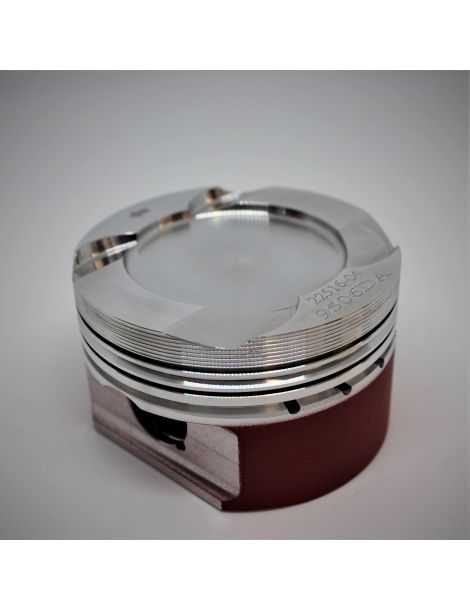

Wossner forged pistons O 84.84.5 mm for BMW N20B20: RV 9.5:1, axle 22 mm, axle height 32.5 mm, dome -11.4 cc, segments 840/845XPY. Ideal road, track and supercharging.
Specifications of the forged pistons offered by NSB Concept for BMW 2.0 L 16 V N20B20 :
| Reference | OEM Bore 84,00 mm | OEM CR 10,3 :1 | OEM Pin 22 mm | Height pin OEM 32,50 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9506DA | 84.00 | 9 :1 | 22 | 32.50 | Wössner | NC | 4032 | Round | −11,38 cc | NC | 840XPY |
| K9506DC | 84.50 | 9,1 :1 | 22 | 32.50 | Wössner | NC | 4032 | Round | −11,38 cc | NC | 845XPY |
| K9506D050 | 84.50 | 10 :1 | 22 | 32.50 | Wössner | NC | 4032 | Round | −11,38 cc | NC | 845XPY |
Compatibility codes engine :
N20B20 (320i/328i/330i F30-F31-G20, 220i/228i F22-F23, X1 E84-F48, X3 F25, Z4 E89…)
Original vehicles equipped with the engine 2.0 L N20B20 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | 320i F30/F31 | N20B20 | 184 hp | 2011 – 2015 |
| BMW | 328i F30/F31 | N20B20 | 245 hp | 2011 – 2015 |
| BMW | Z4 28i E89 | N20B20 | 245 hp | 2011 – 2016 |
| BMW | X1 28i E84 | N20B20 | 245 hp | 2012 – 2015 |
| BMW | X3 28i F25 | N20B20 | 245 hp | 2012 – 2017 |
| BMW | 220i F22/F23 | N20B20 | 184 hp | 2014 – 2016 |
| BMW | 228i F22/F23 | N20B20 | 245 hp | 2014 – 2016 |
These forged Wössner pistons (4032 alloy, −11.38 cc dome) are designed to withstand high boost pressures while ensuring maximum reliability on road and track.
