Forged Pistons 2.0L 2.3L 16v B204 B234 Saab

Marque Forged Pistons

Condition: New product

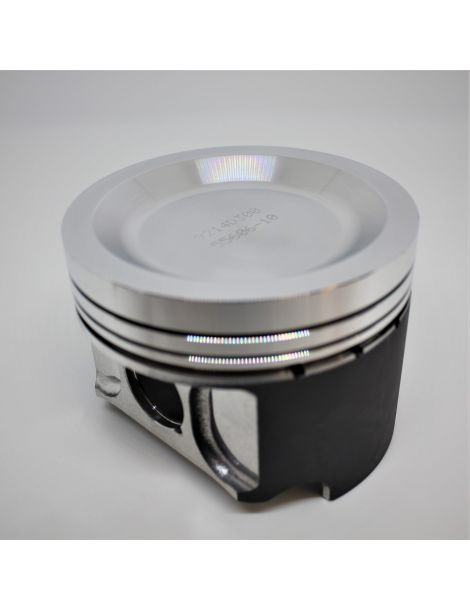

Forged Pistons for Saab 2.0L 2.3L 16v B204 B234 Engines

More details

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Saab 2.0 L & 2.3 L 16 V — engines B204 & B234 :

Reference	OEM Bore 90,00 mm	OEM CR 9,0–10,5 :1	OEM Pin 24 mm	Height OEM Pin 40,30 mm	Range	Coating	Aluminium	Forging	Dome	Weight	Rings
K9214DA	90.0	8.5:1	24	40.3	Wossner	NC	NC	Round	-24.85	NC	900XPY
WKE183M9025	90.25	8:1	24	40.3	Wiseco	Skirt	NC	NC	-12.5	NC	9025XX
WKE183M905	90.5	8:1	24	40.3	Wiseco	Skirt	NC	NC	-12.5	NC	9050XX
K9214D050	90.5	8.6:1	24	40.3	Wossner	NC	NC	Round	-24.85	NC	905XPY
WKE183M91	91.0	8:1	24	40.3	Wiseco	Skirt	NC	NC	-12.5	NC	9100XX
K9214D100	91.0	8.7:1	24	40.3	Wossner	NC	NC	Round	-24.85	NC	910XPY
K9214D300	93.0	9:1	24	40.3	Wossner	NC	NC	Round	-24.85	NC	930XPY

Compatibility (engine codes):

Saab B204 — 2.0 16v (i / E / L / R depending on markets & years)
Saab B234 — 2.3 16v (i / E / L / R, including Aero B234R)

vehicles original equipped the engines B204 / B234 :

Brand	Model	Engine code	Power	Years
Saab	9-3 I 2.0 HOT (Aero)	B204R	200 hp	1999
Saab	9-3 I 2.0 Turbo	B204L	185 hp	1998 – 1999
Saab	900 NG 2.0 LPT	B204E	150 hp	1994 – 1998
Saab	900 NG 2.0 Turbo	B204L	185 hp	1994 – 1998
Saab	9000 2.3 Turbo	B234L	200 hp	1990 – 1998
Saab	9000 2.3 Turbo (LPT)	B234E	170 hp	1994 – 1998
Saab	9000 Aero 2.3 Turbo	B234R	225 hp	1993 – 1997

OEM piston references :

B204 (STD, class AB) : 9149295 — piston with rings (depending on class A/B).
B204 (size repair +0,50) : 9149329 — piston +0,50 mm.
B234 (piston class B, 2.3T) : 9149444 — Saab 9000 2.3T/Aero (1994–1998).
B234 (size repair +1,00) : 9149402 — piston +1,00 mm.
set de rings STD (B204/B234) : 9149105 — kit rings (Ø 90,00 mm).

references to be confirmed via VIN n° & EPC/parts catalog. the variants by classes A/B and model years exist.

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
