Tri-metal main bearings TOYOTA MR2 Celica 2.0 16V 3SGE/GTE, standard size

ACL Race Series tri-metal main bearing set for the TOYOTA 2.0 16V. Complete tri-metal bearing set, ACL Race Series, MR2 Celica

3SGE, 3SGTE


Click here for your repair sizes.

Dimensions:

• Crankshaft:

  Shaft diameter (min/max): 54.985/55.000mm

  Bore diameter (min/max): 59.020/59.038mm

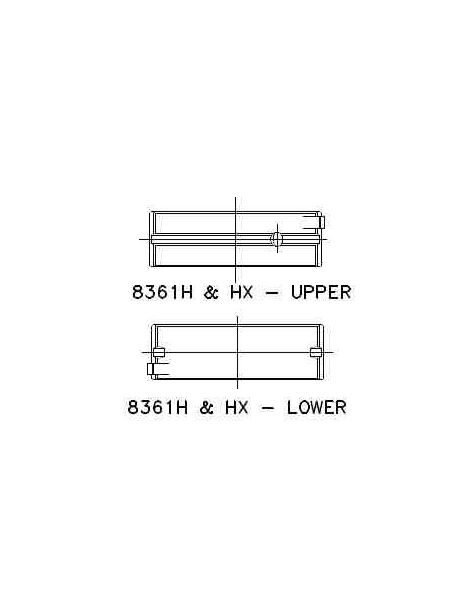

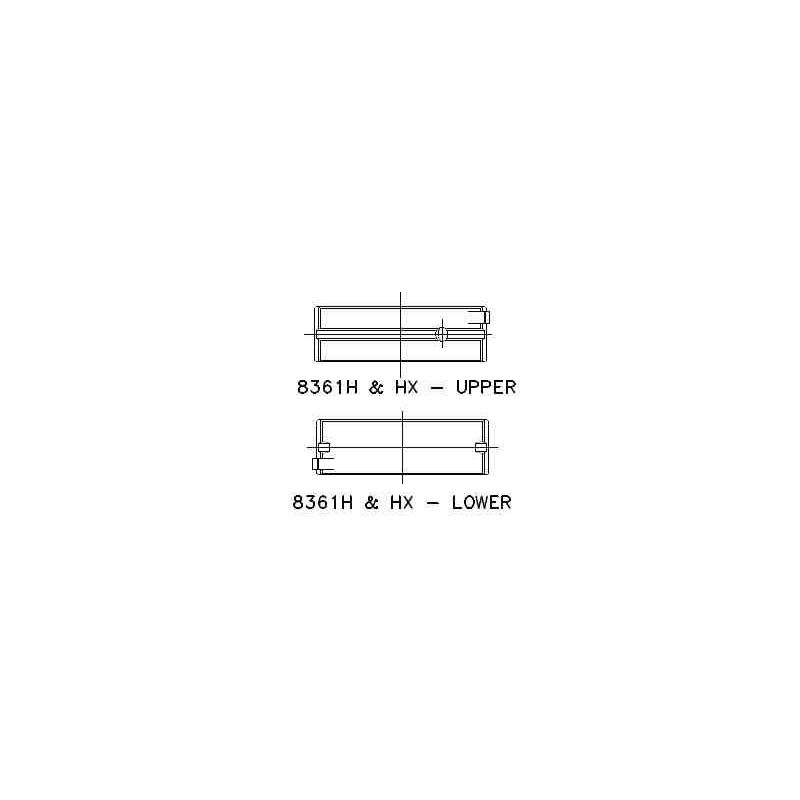

  Max width: 19.20mm (8361H, main journal positions 1, 2, 4, 5) and 23mm (8362H, main journal position 3)

  The set includes 4x 8361H and 1x 8362H

ACL Race Series tri-metal bearings are manufactured to exacting tolerances. CNC machining is carried out to micron accuracy, followed by metrology inspection of the diameters, thickness and width of the ACL Race Series tri-metal bearing. This is how the ACL Race Series bearings ensure a reliable and consistent fit in your performance engine. The ACL Race Series tri-metal bearings are actually made up of 4 layers:

- SAE1010 steel on the outside
- 0.3mm copper alloy
- 0.0001mm nickel
- copper alloy from 0.013 to 0.018mm

This material strategy, combined with the manufacturing process, makes the ACL Race Series tri-metal bearings more resistant to increases in power, torque or engine speed. The compression resistance of the ACL Race Series tri-metal bearings delivers reliability to your engine even with turbo or supercharger builds running high boost, or high-revving engines at high rotational speeds.
