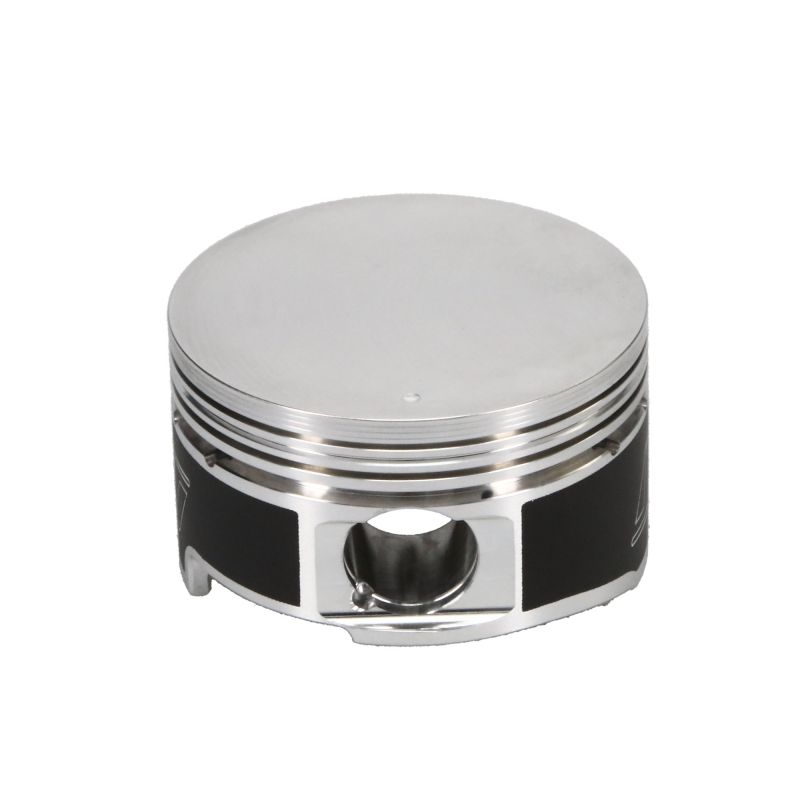

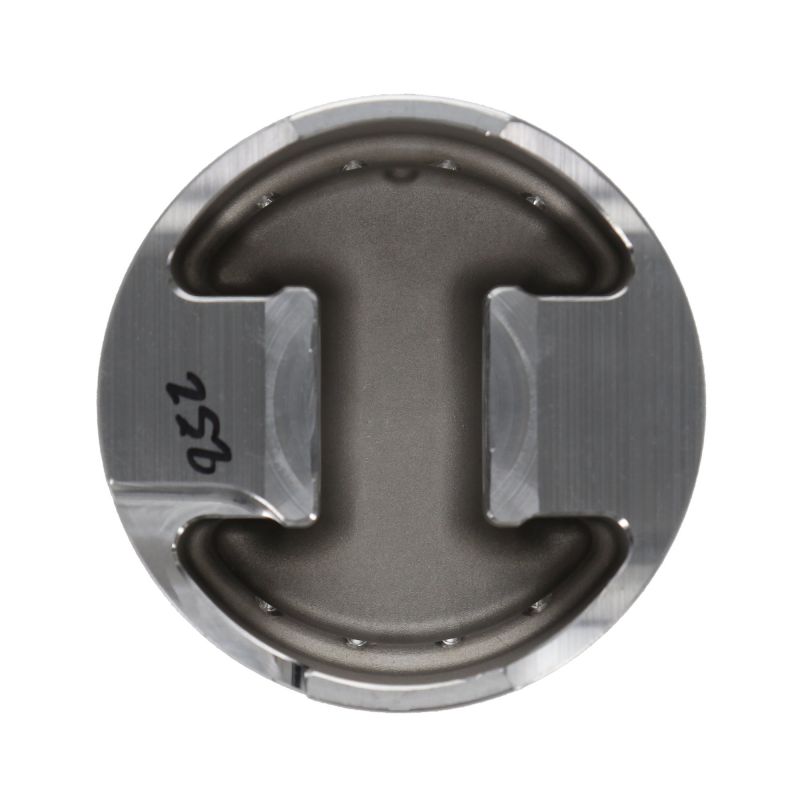

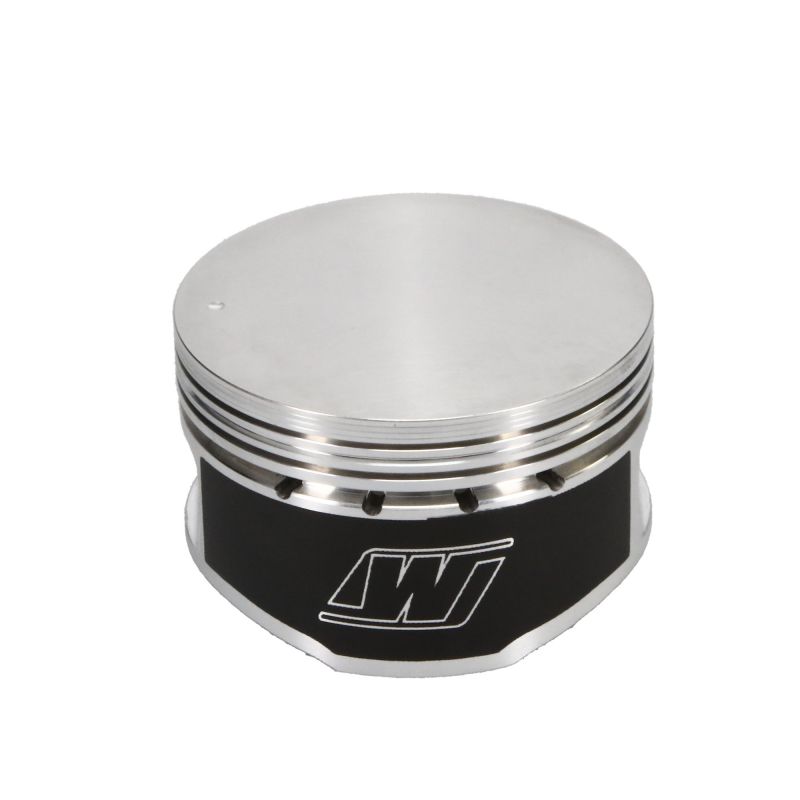

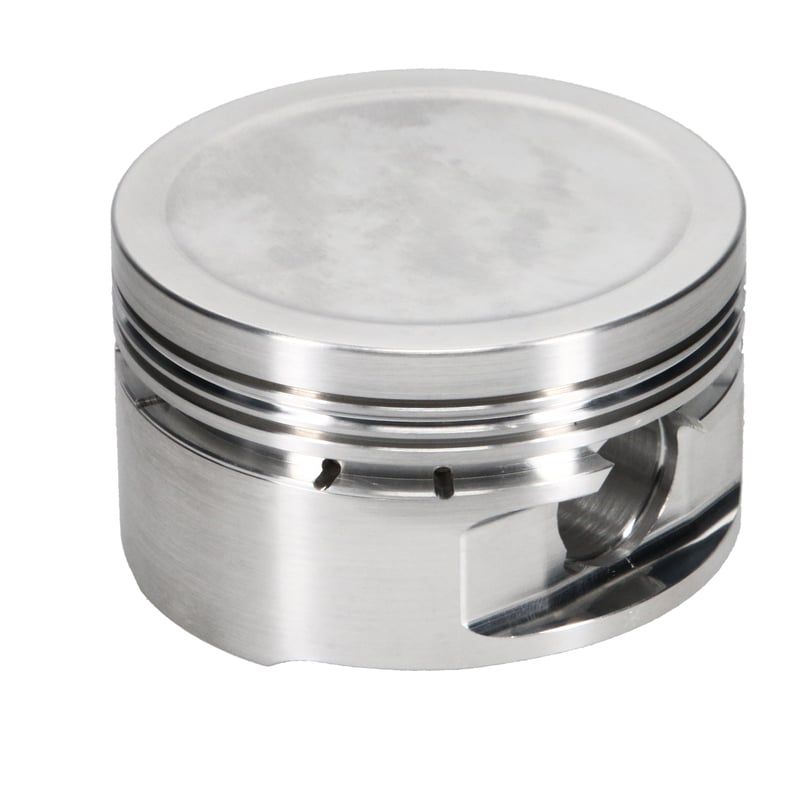

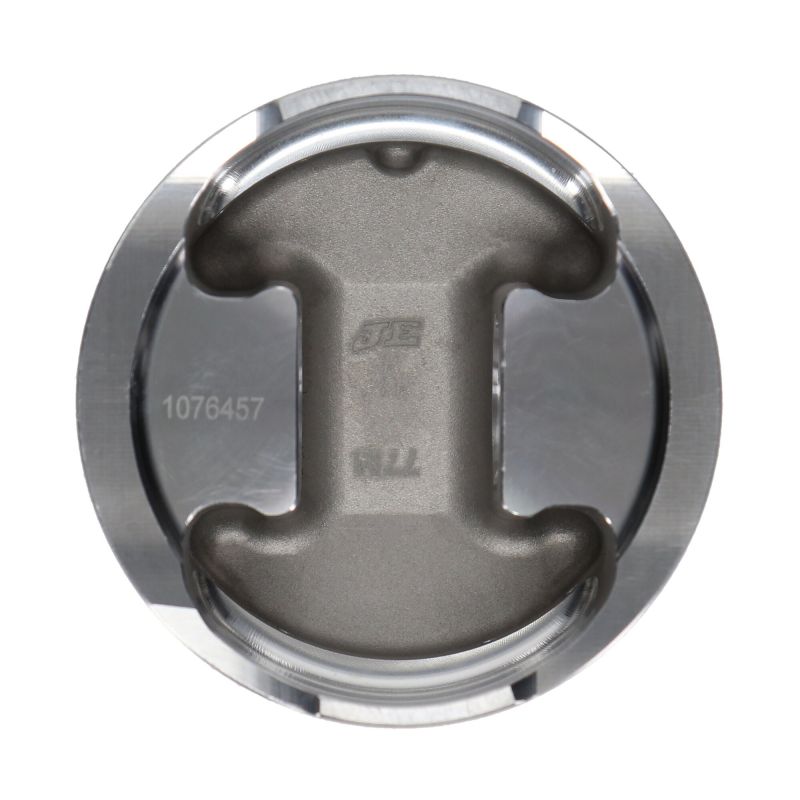

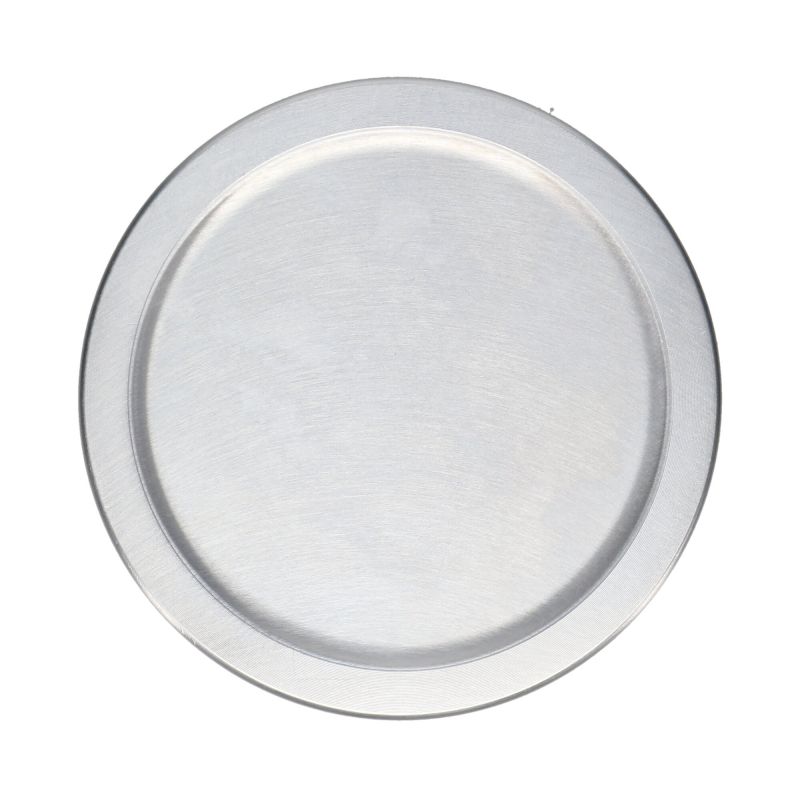

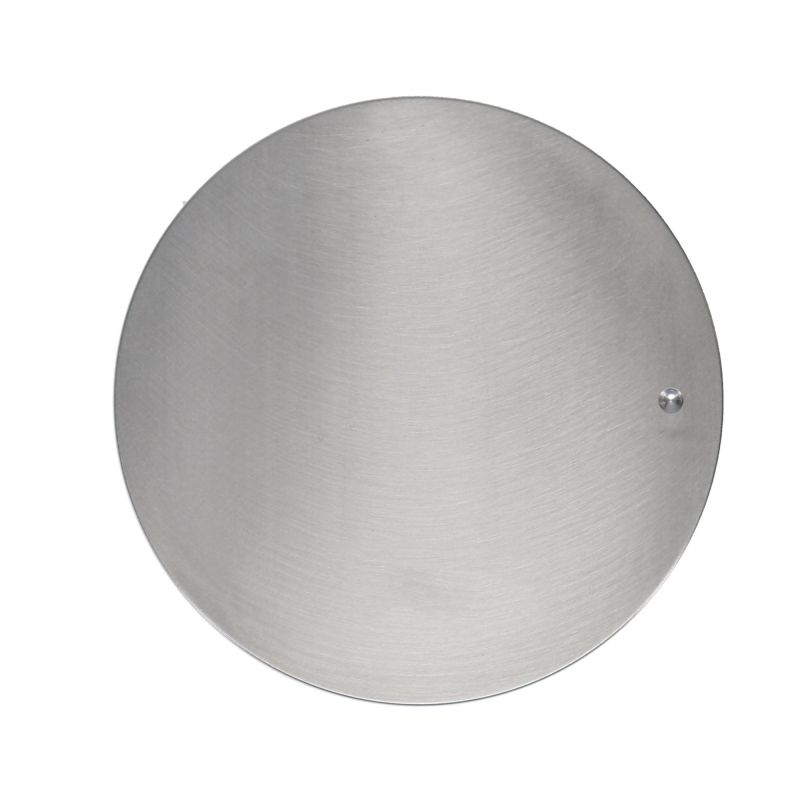

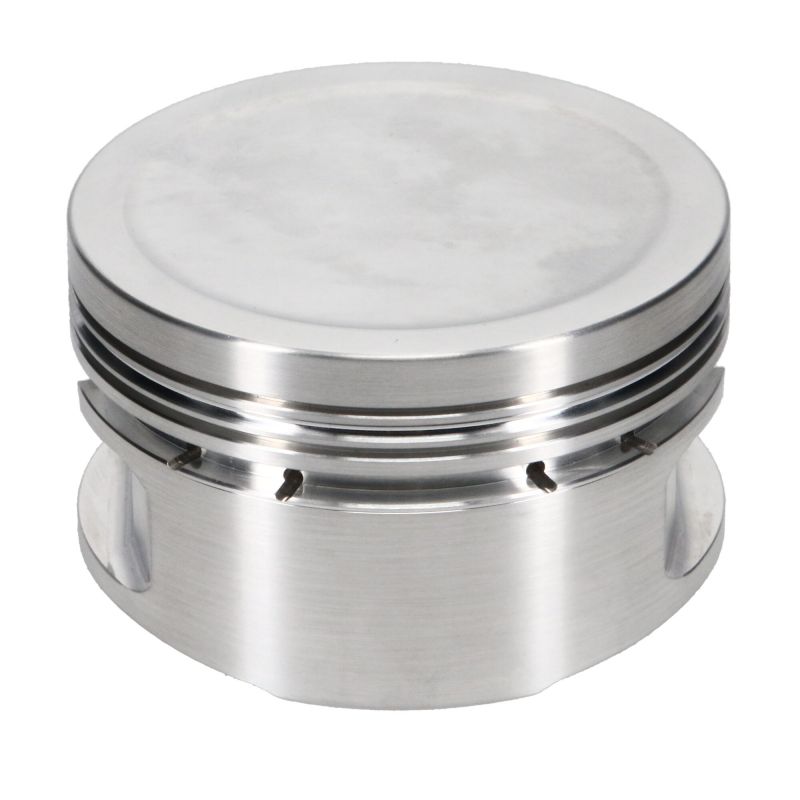

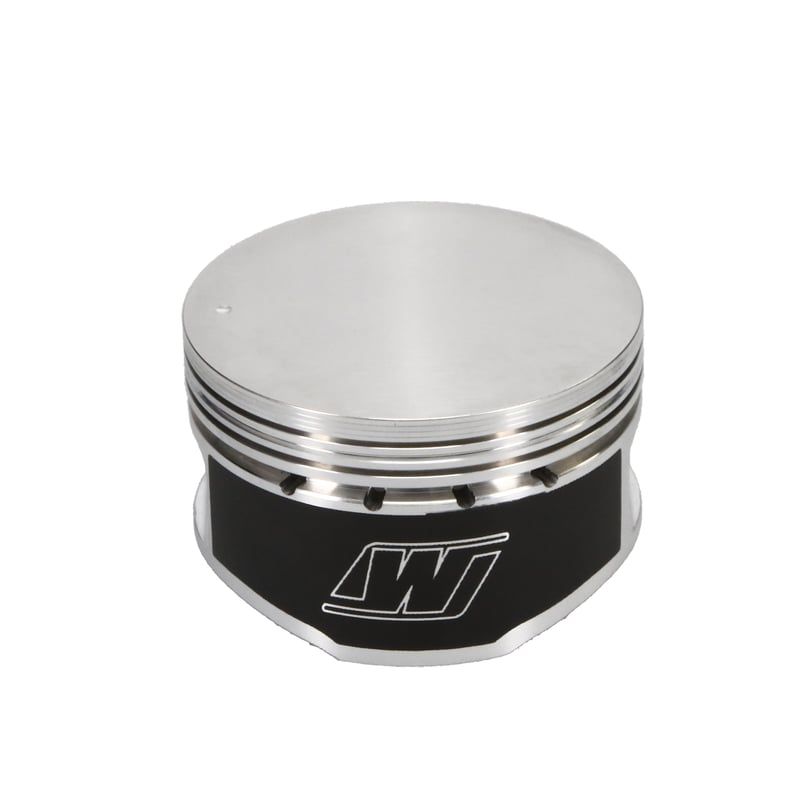

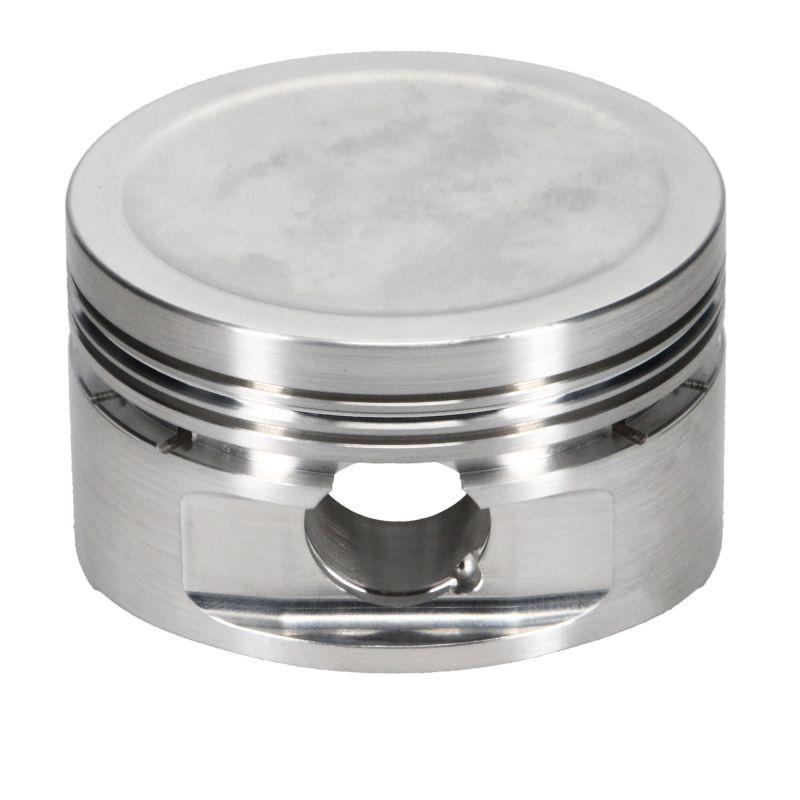

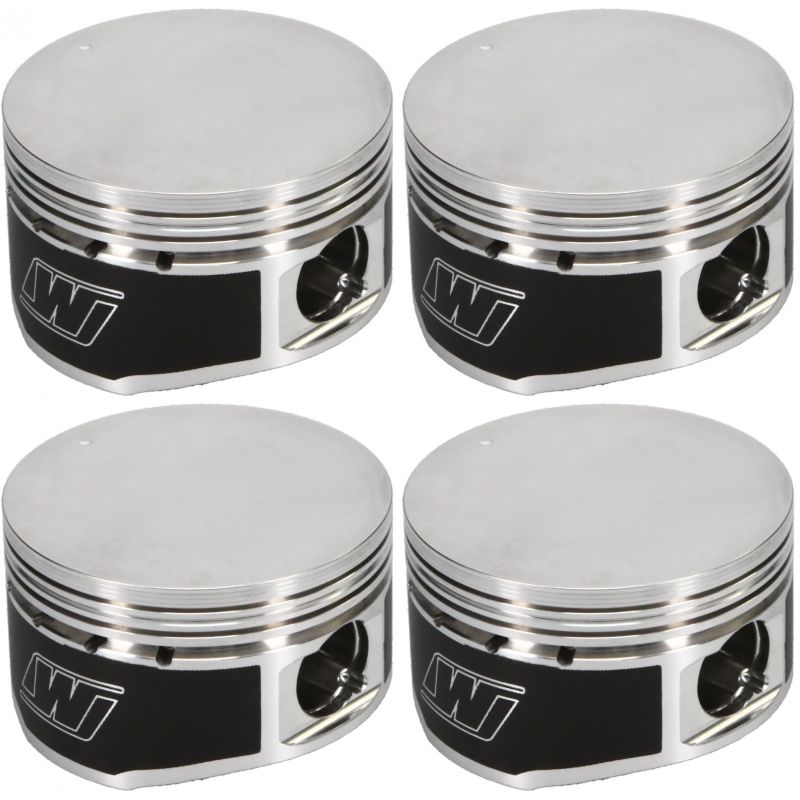

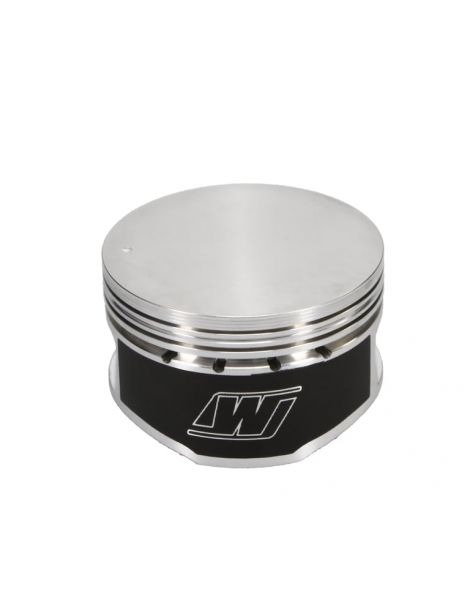

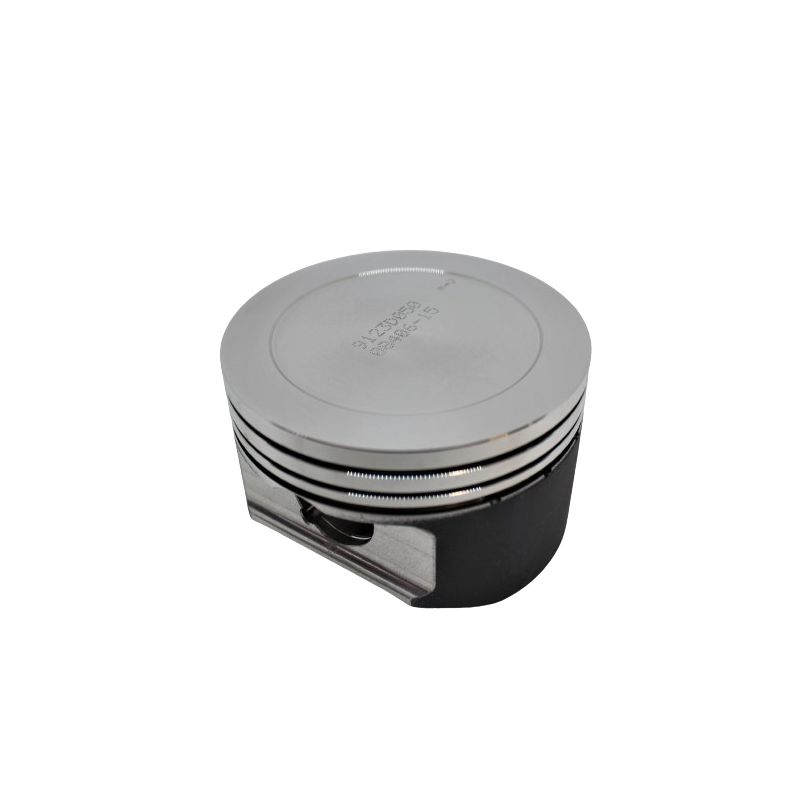

Forged pistons for MINI W11B16 (R52/R53) 1.6L 16v. Bore 77-78 mm, CR 8.3-8.5:1, pin 21 mm. OEM ref: 11 25 7 520 131.
Specifications of the forged pistons for engines 1,6 L 16 v MINI W11B16 (R52/R53) :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK618M78 | 78 | 8,5 :1 | — | — | Wiseco | Skirt | — | — | — | — | — |
| JE-312423 | 77 | 8,3 :1 | 21 | 26,50 | JE Round | — | 2618.0 | Round | -1 | 238 | — |
| K9123DA | 77 | 8,3 :1 | 21 | 26,50 | Wossner | — | — | Round | -1,25 | — | 770XPZ |
| WK618M77 | 77 | 8,5 :1 | 21 | 26,50 | Wiseco | Skirt | 2618.0 | — | 0 FT | — | 3032XC |
| JE-312424 | 77,25 | 8,3 :1 | 21 | 26,50 | JE Round | — | 2618.0 | Round | -1 | 241 | — |
| K9123D025 | 77,25 | 8,4 :1 | 21 | 26,50 | Wossner | — | — | Round | -1,25 | — | 772XPZ |
| JE-312425 | 77,50 | 8,3 :1 | 21 | 26,50 | JE Round | — | 2618.0 | Round | -1 | 243 | — |
| P4-MIN53-775-N1-4 | 77,50 | 8,3 :1 | 21 | 26,50 | Supertech | Crown + Skirt | 4032.0 | — | -1 | 211 | W7750XX |
| K9123D050 | 77,50 | 8,4 :1 | 21 | 26,50 | Wossner | — | — | Round | -1,25 | — | 775XPZ |
| WK618M775 | 77,50 | 8,5 :1 | 21 | 26,50 | Wiseco | Skirt | 2618.0 | — | 0 FT | — | 3051XC |
| P4-MIN53-78-N1-4 | 78 | 8,3 :1 | 21 | 26,50 | Supertech | Crown + Skirt | 4032.0 | — | -1 | 215 | W7800XX |
Compatible vehicles:
| Manufacturer | Model | Years |
|---|---|---|
| MINI | Cooper S (R53) W11B16A – Hatchback | 2002–2006 |
| MINI | Cooper S (R52) W11B16A – Cabrioland | 2005–2008 |
| MINI | John Cooper Works (R53) W11B16A / GP | 2006 |
OEM piston references :
| Manufacturer | Model | Reference | Description |
|---|---|---|---|
| MINI | Cooper S R52/R53 (W11B16A) | 11 25 7 520 131 | piston / kit piston (STD 77,00 mm) |
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
