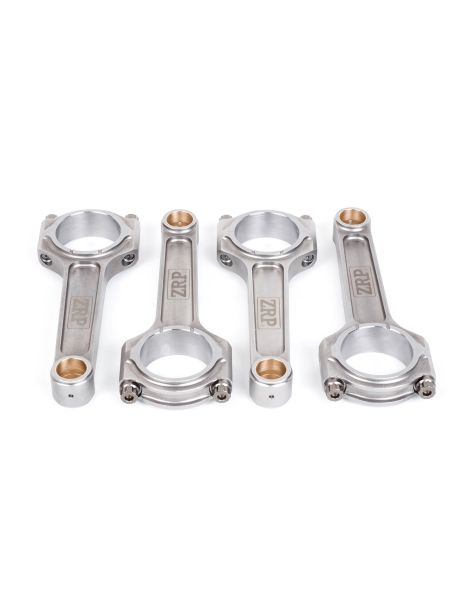

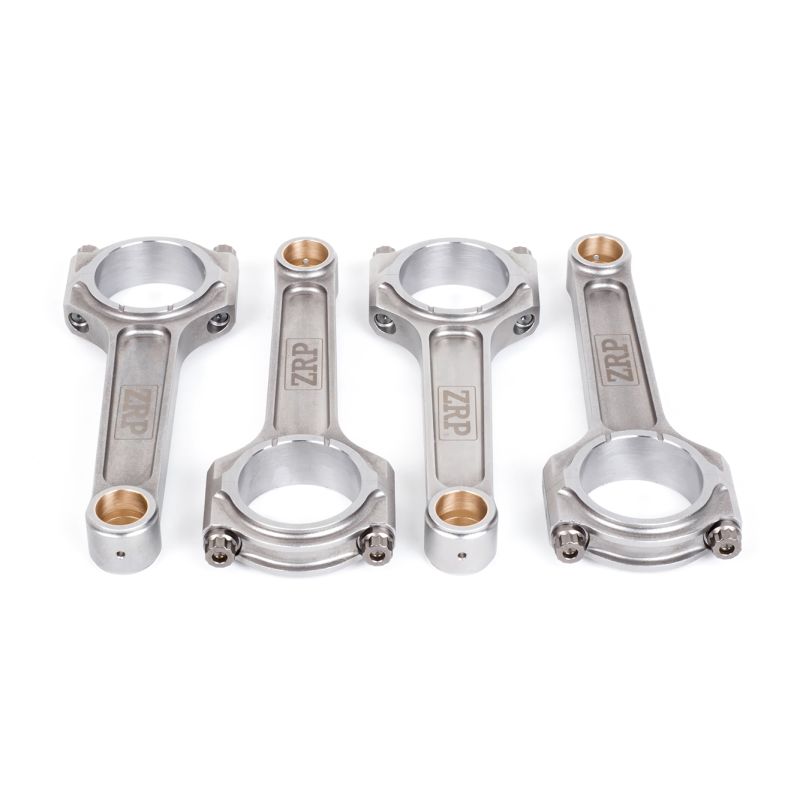

Single forged connecting rod MINI Cooper S R53 - 1.6L - W11B16 for forged piston

Single forged ZRP connecting rod in 4340 steel for MINI Cooper S R53 W11B16, 21 mm piston pin.

This reference lets you order a single rod, either to complete an existing set or to replace one damaged part on the supercharged MINI Cooper S R53 W11B16 engine. It is identical in every respect to the rods in the full set offered for this engine: same steel, same beam profile, same bolts.

Specifications

+ Brand: ZRP
+ Beam profile: I-Beam
+ Material: 4340 forged steel
+ Bolts: ARP 2000
+ Center-to-center length: 131.60 mm

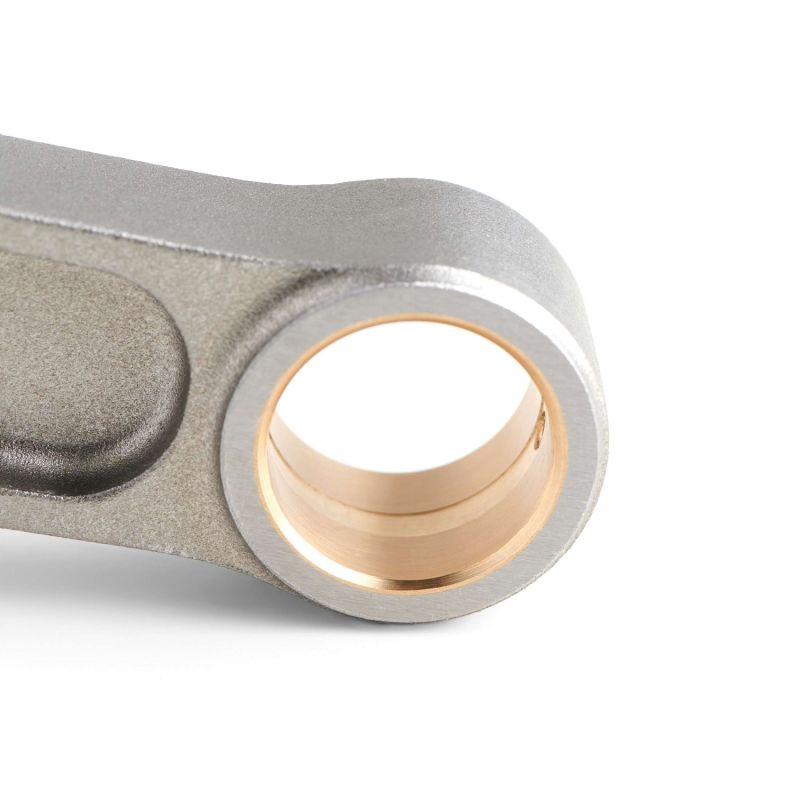

+ Piston pin diameter: 21.00 mm
+ Big end bore: 49.00 mm
+ Big end width: 23.25 mm
+ Weight: 453 g

Torque and bolt stretch

ARP 2000 bolts are tightened to 61 Nm, or by stretch control between 0.140 and 0.152 mm. Measuring stretch with a dial indicator remains the most reliable method: it reflects the real tension in the bolt, whereas torque depends on thread friction.

Rod supplied individually, bolts included. A full set of four rods is required for a complete rebuild on this engine.
