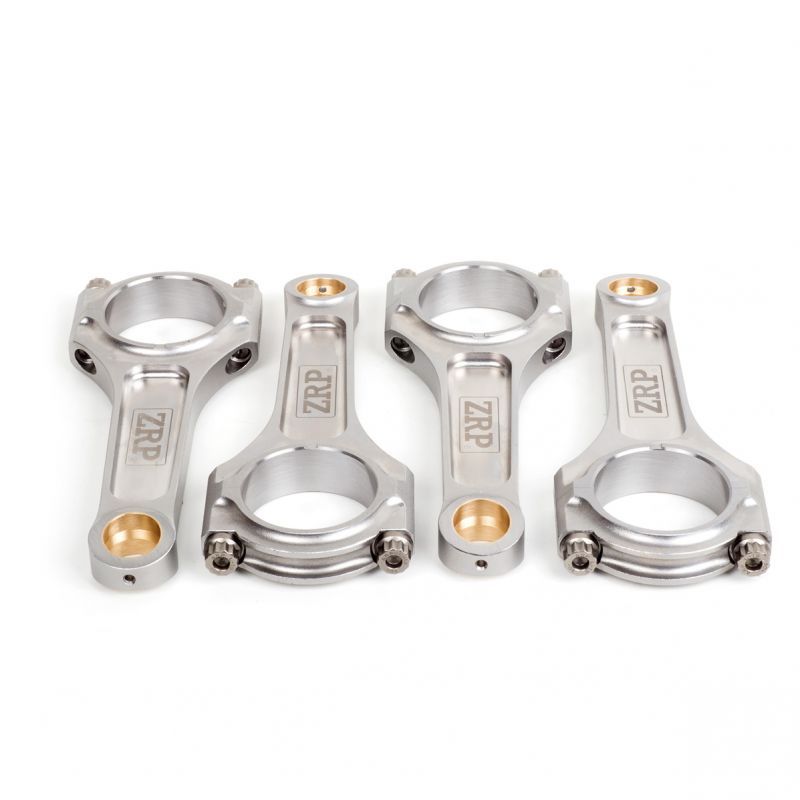

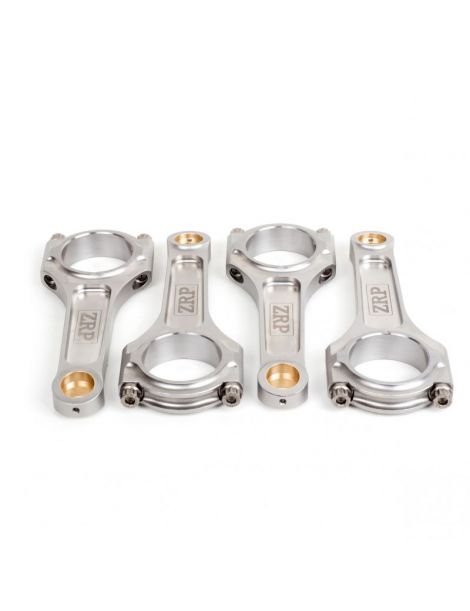

ZRP I-Forged Connecting Rods FORD Fiesta VI 1.6 ST 16V JTJA 182CV 2013-

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its experience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed forged connecting rods in high-strength 4340 steel for your FORD Fiesta VI 1.6 ST 16V JTJA in order to accept high boosts on your JTJA engine and ARP2000 connecting rod screws for large increases in engine speed.

The head of the ZRP forged connecting rods for FORD Fiesta VI 1.6 ST 16V JTJA is equipped with a ring machined from hot extruded cupro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your piston pin.

The design of this ZRP forged I-shaped connecting rod for FORD Fiesta VI 1.6 ST JTJA gives it exceptional resistance to significant increases in power and torque through high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation of Drift forged engines and Run Dragster forged engines.

Features:

Center distance: 134.02mm

Foot diameter: 47.04mm

Foot width: 20.80mm

Piston pin diameter: 21.00mm

Connecting rod screws supplied: ARP2000

Thread of the screws supplied: 5/16"

Weight: 431gr

Maximum admissible power: 800hp

Lexicon:

1) Connecting rod

2) Foot diameter

3) Connecting rod body

4) Connecting rod screw

5) Big end

6) Nut

7) Connecting rod cap

8) Head diameter

9) Center distance

When you upgrade your JTJA engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.

Find the forged pistons for your FORD Fiesta VI 1.6 ST 16V JTJA (if your engine has more than 50,000km, it is recommended to take an extra rating and re-bore the cylinders followed by honing the barrels):

FORGED PISTONS

Find the connecting rod bearings for your ZRP forged connecting rods for your FORD Fiesta VI 1.6 ST 16V JTJA:

CONNECTING ROD BEARINGS

Find this kit with reinforced ARP L19 and ARP connecting rod screws. 625+ for your FORD Fiesta VI 1.6 ST 16V JTJA:
