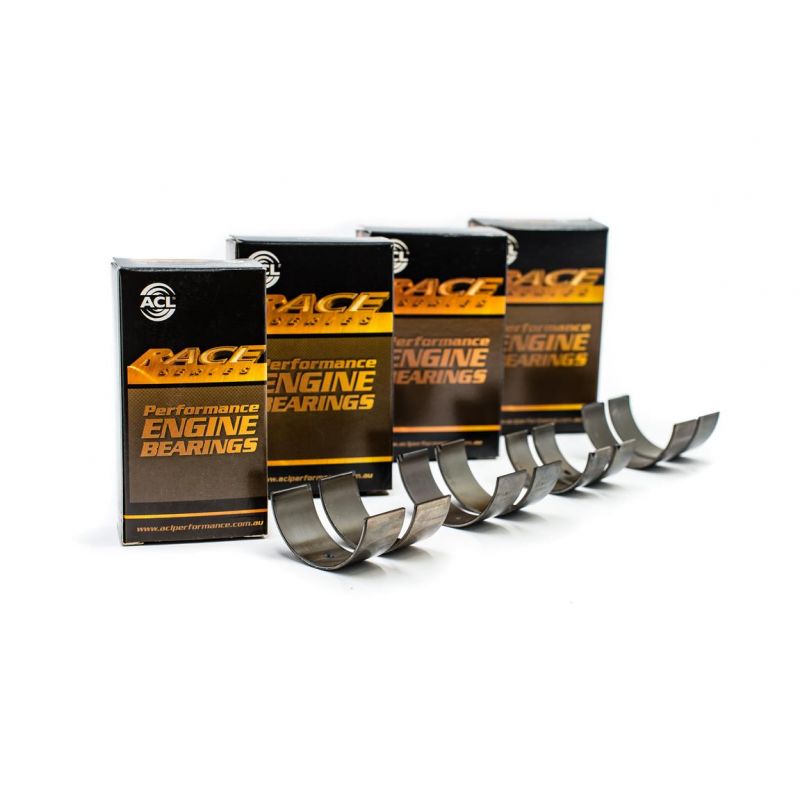

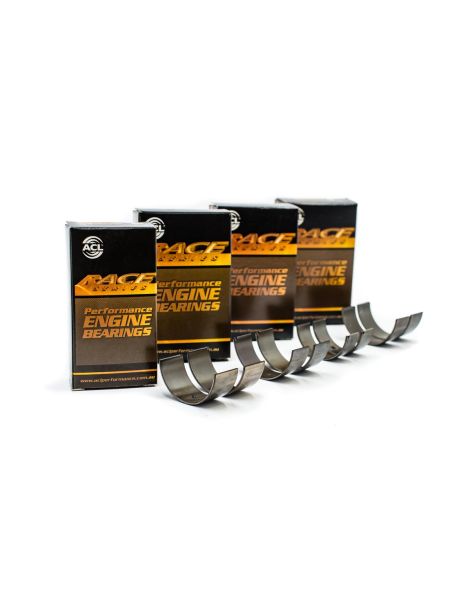

Set of 8 trimetal connecting rod half-bearings for Renault, Dacia and Nissan E5F, E6J, E7F, E7J, K7J, K7M, K4J, K4M, C1G, C1J, C2J, C2L, C3J, C6J (Ø 44 mm).
The E5F, E6J, E7F, E7J, K7J, K7M, K4J, K4M, C1G, C1J, C2J, C2L, C3J, C6J, 810, 840 725 and 847 engines (1.2 to 1.6 litre) power the Clio, Mégane, 19, Super 5, Kangoo, Logan and Sandero. ACL lists the same bearing set for these engines: same crankpin diameter, a single set covers the family.
From the factory, this engine is fitted with standard production connecting rod bearings, sized for the loads of the original engine: as soon as power, engine speed or boost pressure increase, they reach their limits.

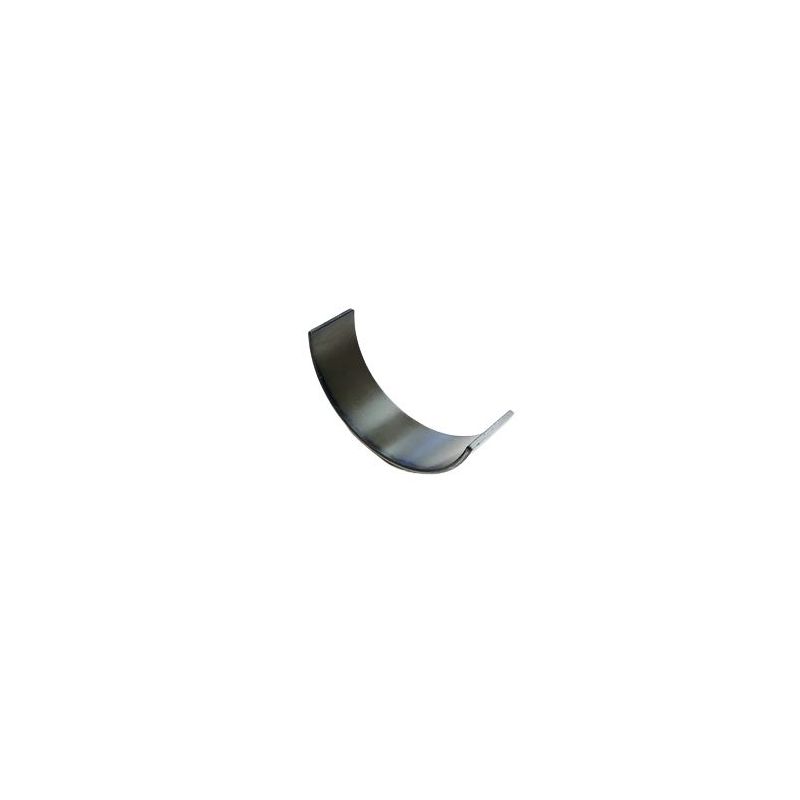

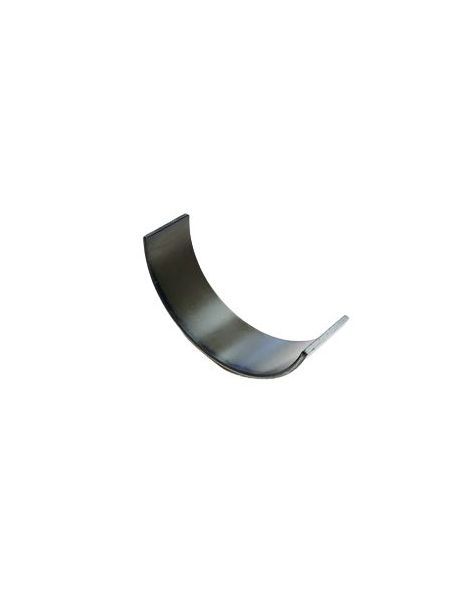

A trimetal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 8 half shells, four pairs for a four-cylinder engine.
The original bearing relies on an aluminium alloy over a steel back, intended for low to medium loads, whereas trimetal is designed for high, sustained loads: an aluminium bi-metal takes around 8,000 psi, a performance trimetal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankpin Ø 43.965 / 43.980 mm Housing bore Ø 47.615 / 47.625 mm Width 17.75 mm |
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 4B7906H-STD | ACL Race - Untreated | Standard | 1.806 |
| 4B7906H-.25 | ACL Race - Untreated | +0.25 | 1.931 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series |
|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.048 to 0.057 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.048 to 0.057 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the rod cap to spec, then compare the crushed strip against the gauge to read the clearance.
The ACL rod bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. |
This connecting rod bearing set fits the 44 mm petrol engines of the following Renault models:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| RENAULT | Clio 2 1.6 16V | K4M | 107 hp | 1998–2005 |
| RENAULT | Mégane 1 1.6 16V | K4M | 107 hp | 1998–2003 |
| RENAULT | Super 5 GT Turbo | C1J | 120 hp | 1985–1990 |
| RENAULT | Twingo 2 RS | K4M | 133 hp | 2008–2014 |
