1.4L 16v - T-Jet
Manufacturers
1.4L 16v - T-Jet
Warning: Last items in stock!
New product

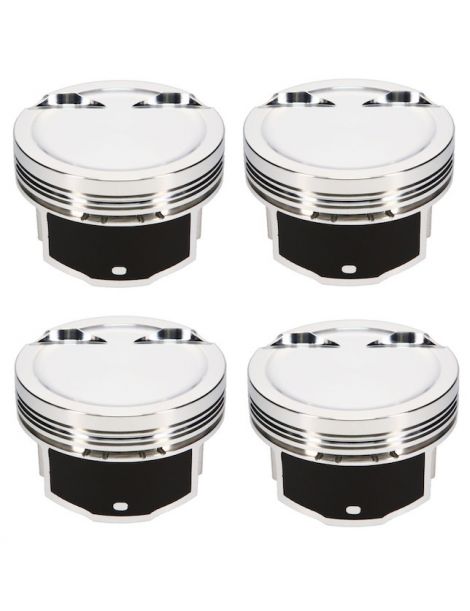

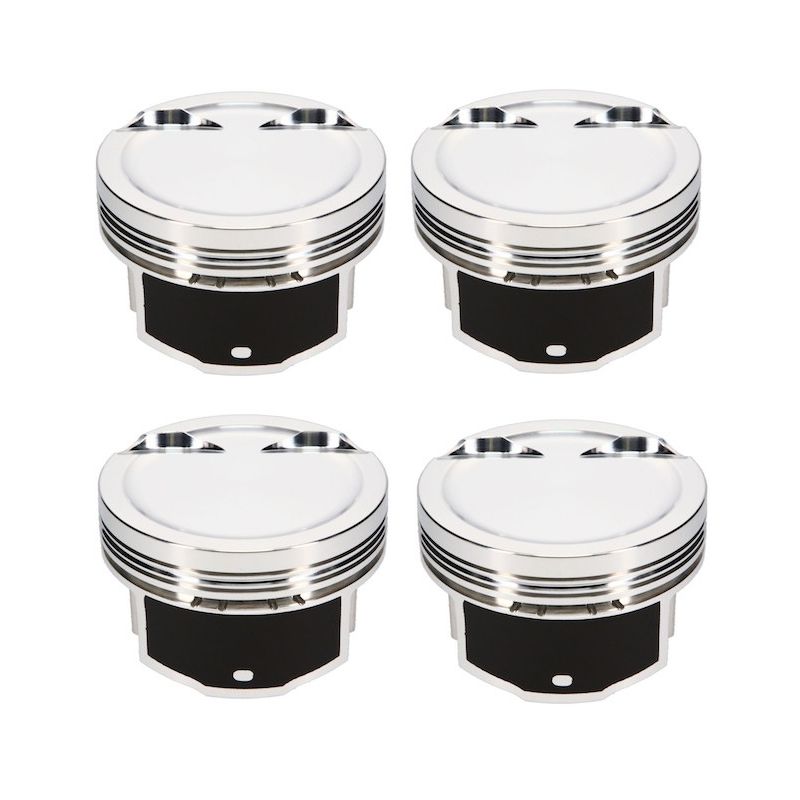

Set of 4 forged pistons JE & WOSSNER for engines Fiat 1.4 L 16 v T-Jet / Abarth: bores 72,0 - 73,0 mm, CR 9,8 - 10,1:1, pin 18 mm; rings included on kits WOSSNER.
Specifications of the forged pistons offered by NSB Concept for les engines Fiat/Abarth 1.4 L 16 v T-Jand :
| Reference (cliquez) | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-315366 | 72.00 | 9.8:1 | 18 | 26.77 | JE | NC | NC | NC | -19.5 | NC | NC |
| K9470DA | 72.00 | 9.8:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 720XPZ |
| K9518DA | 72.00 | 9.8:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 720XPZ |
| JE-315367 | 72.50 | 9.8:1 | 18 | 26.77 | JE | NC | NC | NC | -19.5 | NC | NC |
| K9470D050 | 72.50 | 9.9:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 725XPZ |
| K9518D050 | 72.50 | 9.9:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 725XPZ |
| K9470D100 | 73.00 | 10.1:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 730XPZ |
| K9518D100 | 73.00 | 10.1:1 | 18 | 26.80 | Wössner | NC | NC | Round | -20.9 | NC | 730XPZ |
Compatibility :
vehicles 1.4 T-Jand
Original vehicles equipped with the engine 1.4 T-Jand :
| Brand | Model | Code engine | Power | Years |
|---|---|---|---|---|
| Abarth | 500 / 595 / 695 (312) | 312A3.000 | 140–180 hp | 2008 – 2025 |
| Abarth | Grande Punto 199 | 199A8.000 | 155 hp | 2007 – 2010 |
| Fiat | Grande Punto 199 | 198A4.000 | 120 hp | 2007 – 2010 |
| Fiat | Punto / Punto Evo 199 | 198A4.000 | 120 hp | 2010 – 2018 |
| Fiat | Bravo II 198 | 198A4.000 | 120–150 hp | 2007 – 2014 |
| Fiat | Linea 323 | 198A4.000 | 120 hp | 2007 – 2015 |
| Fiat | Doblo 263 | 198A4.000 | 120 hp | 2010 – 2023 |
| Fiat | 500L 351/352 | 940B7.000 | 120 hp | 2012 – 2023 |
| Alfa Romeo | MiTo 955 | 955A2.000 | 120–155 hp | 2008 – 2018 |
| Alfa Romeo | Giuliandta 940 | 198A4.000 | 120 hp | 2010 – 2020 |
references piston manufacturer (OEM):
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
