2.0L 8v - DOHC N8A N9C N9E
Manufacturers
2.0L 8v - DOHC N8A N9C N9E
Warning: Last items in stock!
New product

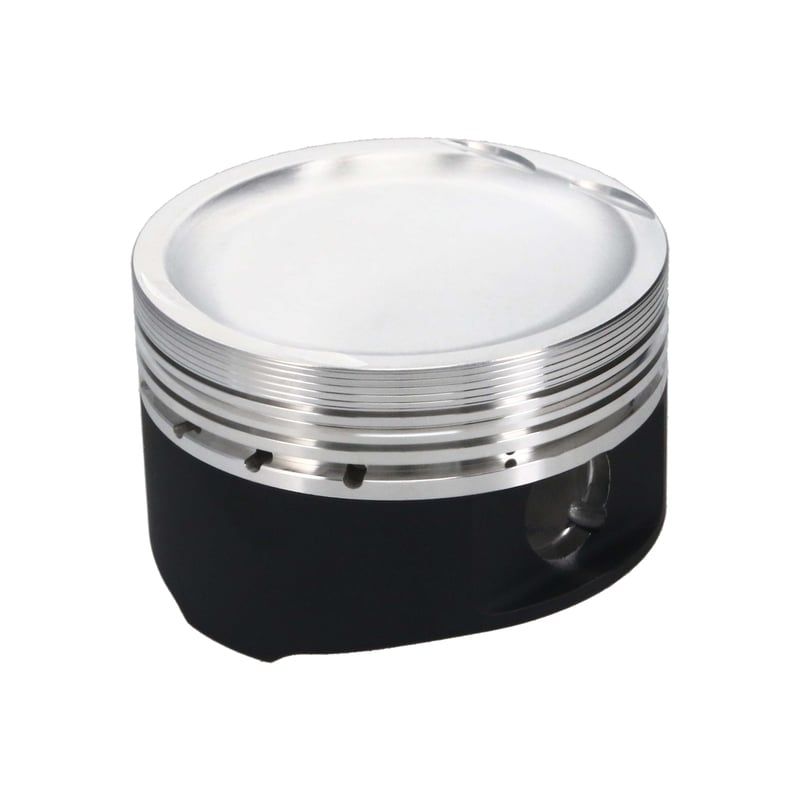

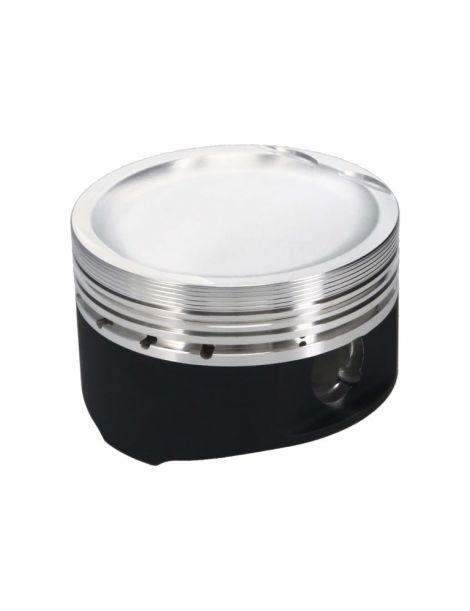

Ford 2.0 DOHC 8v forged pistons (codes N8A/N9C/N9E) bores 86-87 mm, RV 8.5-10.3:1, axle 20 mm. Sierra Mk2, Granada/Scorpio compatible. Wiseco.
Characteristics of the forged pistons offered by NSB Concept for Ford 2.0 L 8 v DOHC N8A / N9C / N9E:
| Reference Piston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE246M86 | 86 | 8.5:1 | 20 | 32.38 | Wiseco | 2618 | Skirt | N/A | -13 | N/A | 8600XX |
| WKE235M86 | 86 | 10.3:1 | 20 | 32.38 | Wiseco | N/A | Skirt | N/A | -0.3 | N/A | 8600XX |
| WKE246M865 | 86.5 | 8.5:1 | 20 | 32.38 | Wiseco | 2618 | Skirt | N/A | -13 | N/A | 8650XX |
| WKE235M865 | 86.5 | 10.3:1 | 20 | 32.38 | Wiseco | 2618 | Skirt | N/A | -0.3 | N/A | 8650XX |
| WKE246M87 | 87 | 8.5:1 | 20 | 32.38 | Wiseco | N/A | Skirt | N/A | -13 | N/A | 8700XX |
Engine compatibility:
Ford 2.0L 8v DOHC Engine codes:
N8A
/
N9C
/
N9E
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Ford | Granada Mk3 (UK) | N/A | N8A | 107 | 1989-1990 |
| Ford | Granada / Scorpio I (EU) | N/A | N9E | 118 | 1989-1994 |
| Ford | Sierra Mk2 | N/A | N9C | 125 | 1990-1993 |
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
