3.0L 24v - V12 Tipo 112
Manufacturers
3.0L 24v - V12 Tipo 112
Warning: Last items in stock!
New product

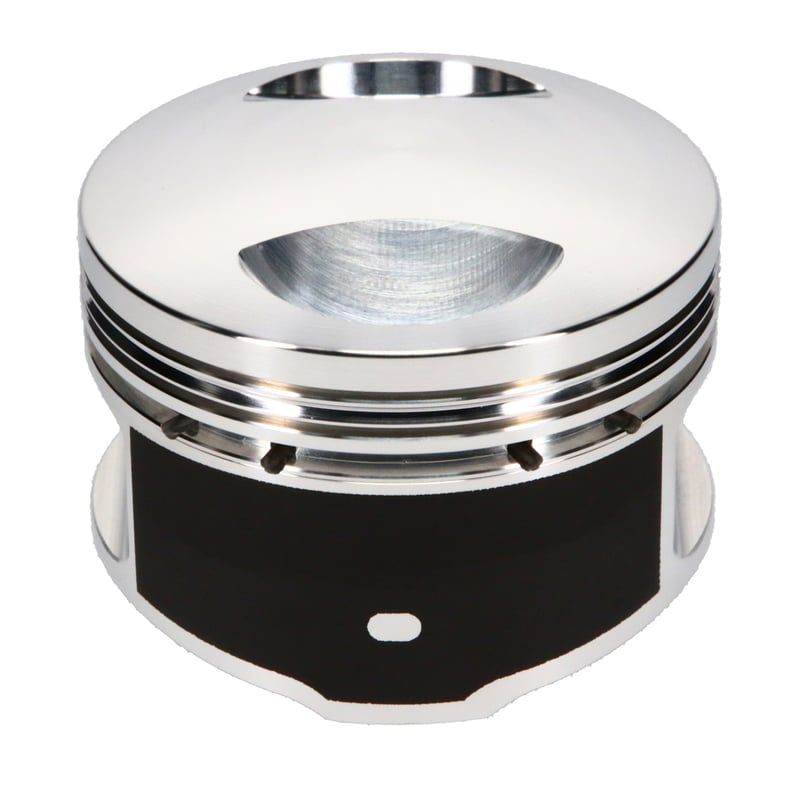

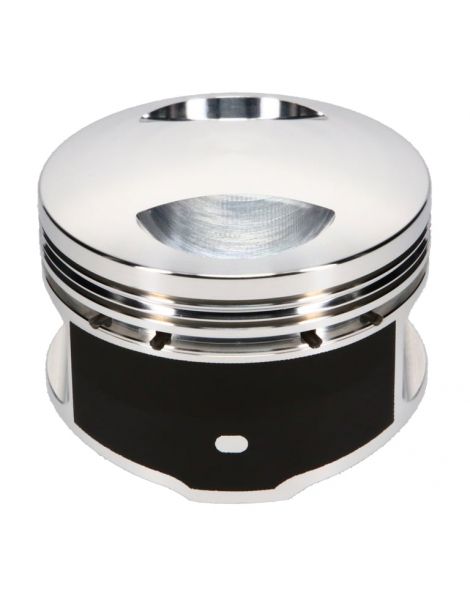

JE & Forged Pistons Wossner for Ferrari V12 3.0 L Tipo 112- bores 73 - 74 mm, RV 9.5 - 10.3:1, Pin 17 mm. Table 5 references, 250 GT & GTE.
Specifications of the forged pistons offered by NSB Concept for Ferrari V12 3.0 L 24 v Tipo 112 :
| Reference piston | Bore (mm)OEM 73,00 | CROEM 9,2 :1 | pin (mm)OEM 17 | Height pin (mm)OEM 28,7 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9001DA | 73 | 10,0 :1 | 17 | 28,7 | Wössner | NC | NC | Round | 11,3 | NC | 730XDS |
| K9001D050 | 73,5 | 10,1 :1 | 17 | 28,7 | Wössner | NC | NC | Round | 11,3 | NC | 735XDS |
| K9001D100 | 74 | 10,3 :1 | 17 | 28,7 | Wössner | NC | NC | Round | 11,3 | NC | 740XDS |
| JE-362215 | 73,5 | 9,5 :1 | 17 | 28,9 | JE Round | 2618 | NC | Round | 22,3 | 235 | NC |
| JE-362216 | 74 | 9,5 :1 | 17 | 28,9 | JE Round | 2618 | NC | Round | 22,0 | 238 | NC |
Compatibility engine :
| Brand | Model | Series | Power (ch) | Years |
|---|---|---|---|---|
| Ferrari | 250 GT Coupé / Cabrioland | Tipo 508 | 220 – 240 | 1956 – 1963 |
| Ferrari | 250 GTE 2+2 | Tipo 508E | 240 | 1959 – 1963 |
Warning : Before any installation, please imperatively check the integrity and compliance of each component of the piston kit as well as the compliance of the assembly in the engine; any possible warranty is strictly limited to the piston kit parts only.
