2.0L 20v - 175A3
Manufacturers
2.0L 20v - 175A3
Warning: Last items in stock!
New product

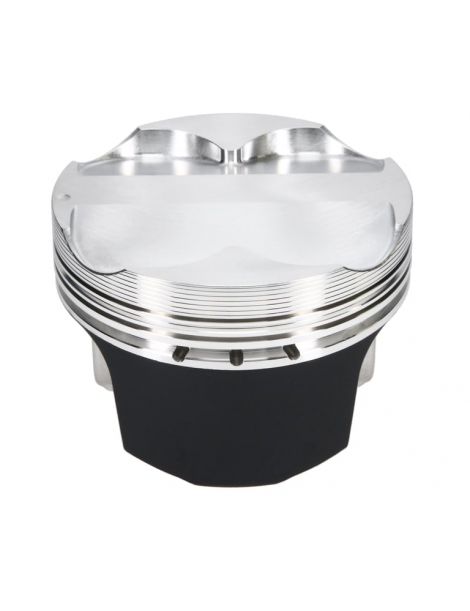

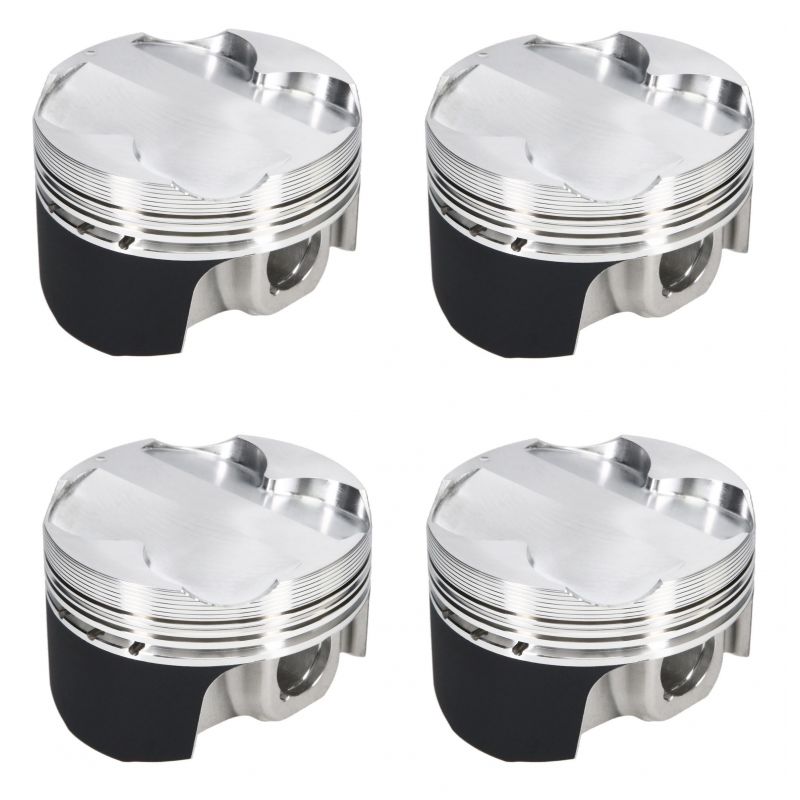

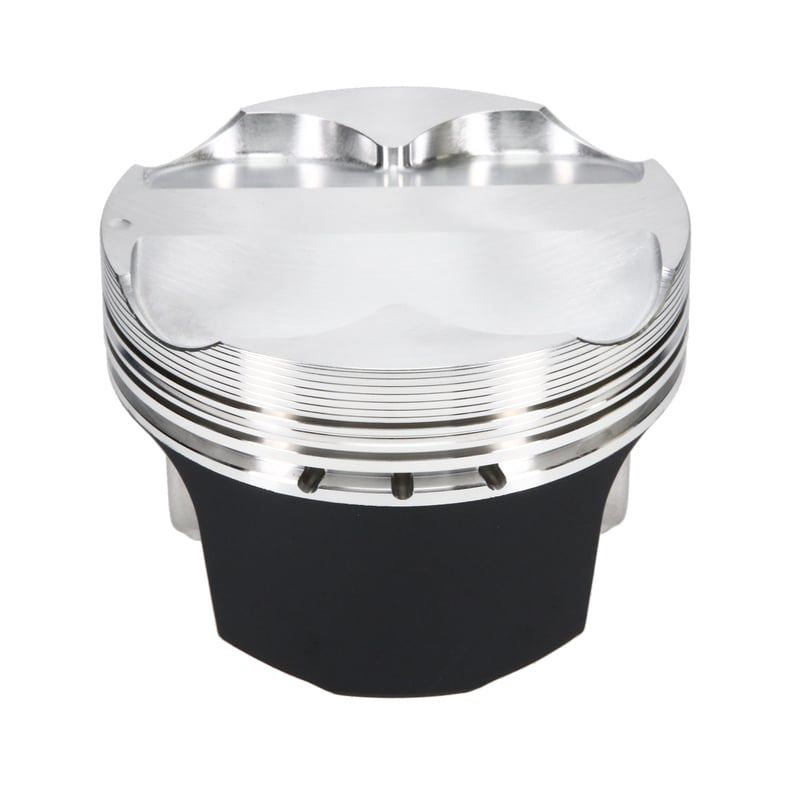

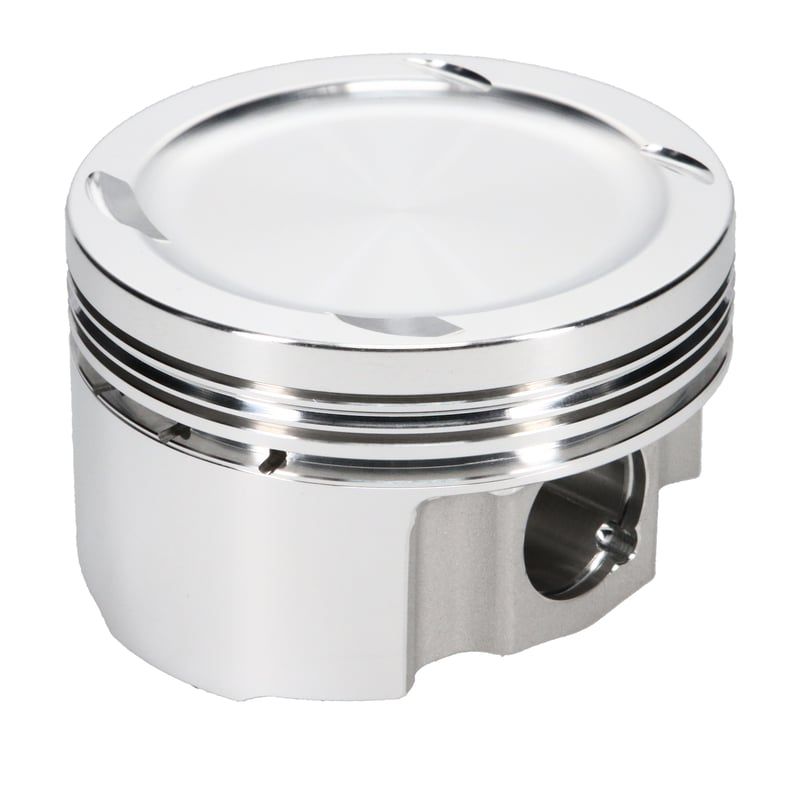

Forged pistons for Fiat 2.0L 20v 5-cylinder Turbo: bores 82,0-84,0 mm, CR 8,0-8,5:1, pin 22 mm. Brands: WOSSNER.
Specifications of the forged pistons offered by NSB Concept for engines Fiat/Lancia 2,0 L 20 v turbo 5 cylinders :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE140M82 | 82.0 | 7:1 | 22 | 32.90 | Wiseco | Skirt | 2618 | NC | -25.0 | NC | 8200XX |
| JE-312403 | 82.0 | 8:1 | 22 | 32.80 | JE FSR | NC | 2618 | FSR | -8.0 | 294 | NC |
| K9212DA | 82.0 | 8:1 | 22 | 32.80 | Wössner | NC | NC | Round | -8.8 | NC | 820XPY |
| WKE140M825 | 82.5 | 7:1 | 22 | 32.90 | Wiseco | Skirt | 2618 | NC | -25.0 | NC | 8250XX |
| JE-312404 | 82.5 | 8:1 | 22 | 32.80 | JE FSR | NC | 2618 | FSR | -8.0 | 300 | NC |
| K9212D050 | 82.5 | 8.1:1 | 22 | 32.80 | Wössner | NC | NC | Round | -8.8 | NC | 825XPY |
| WKE140M83 | 83.0 | 7:1 | 22 | 32.90 | Wiseco | Skirt | 2618 | NC | -25.0 | NC | 8300XX |
| JE-312405 | 83.0 | 8:1 | 22 | 32.80 | JE FSR | NC | 2618 | FSR | -8.0 | 305 | NC |
| K9212D100 | 83.0 | 8.2:1 | 22 | 32.80 | Wössner | NC | NC | Round | -8.8 | NC | 830XPY |
Compatibility :
Original vehicles equipped with the engine 2,0 L 20 v Turbo :
| Brand | Model | Type engine | Power | Years |
|---|---|---|---|---|
| Fiat | Coupé 2.0 20 v Turbo | 195A1.000 | 220 – 225 hp | 1996 – 2000 |
| Lancia | Kappa 2.0 20 v Turbo | 838A4.000 | 205 hp | 1996 – 2001 |
references piston manufacturer (OEM):
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
