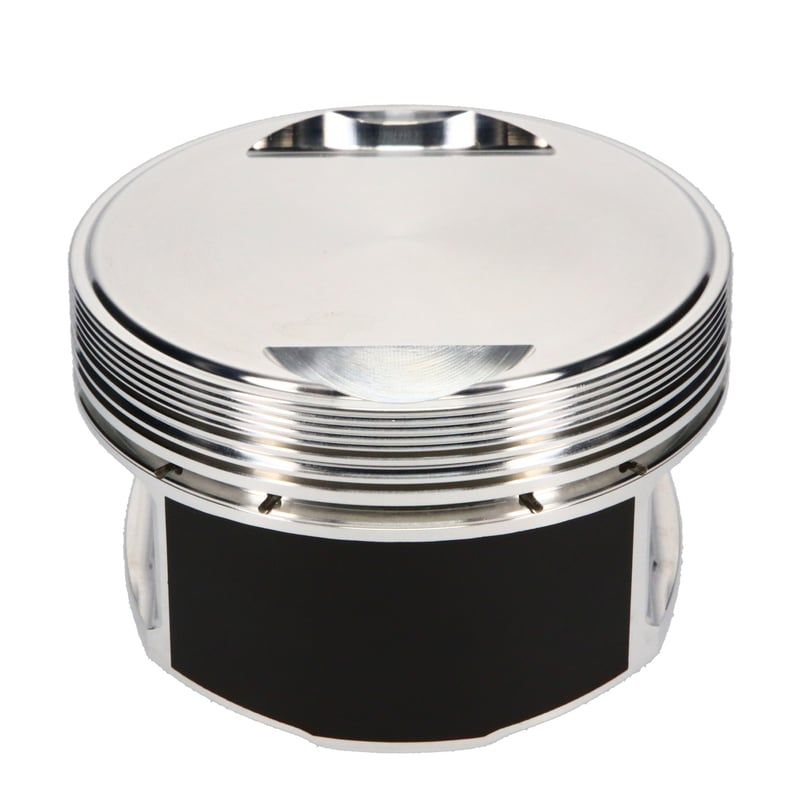

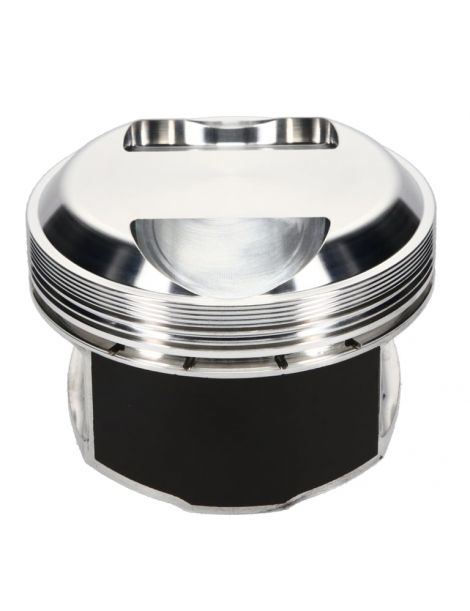

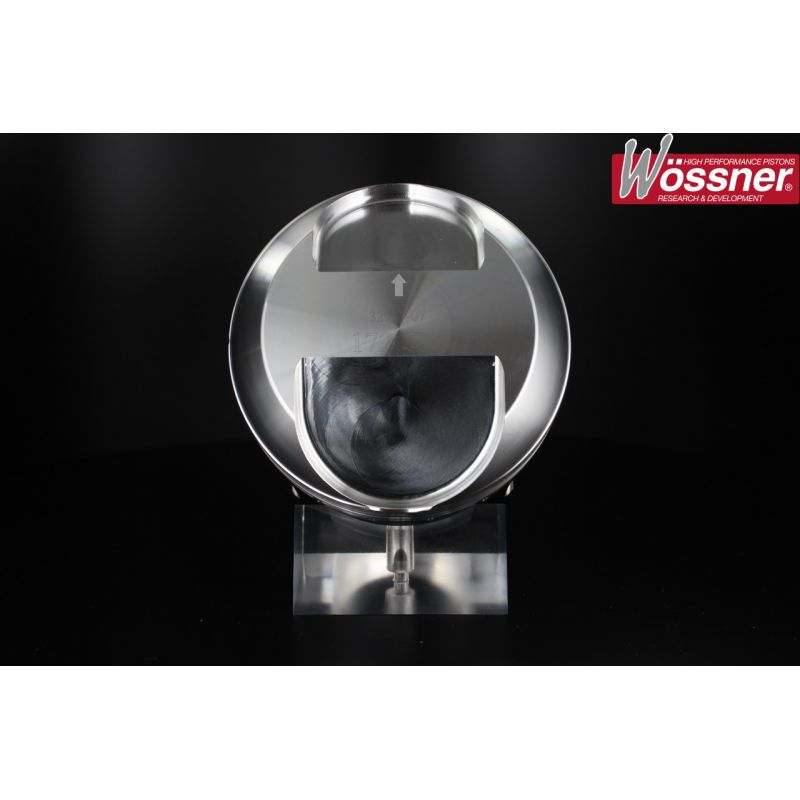

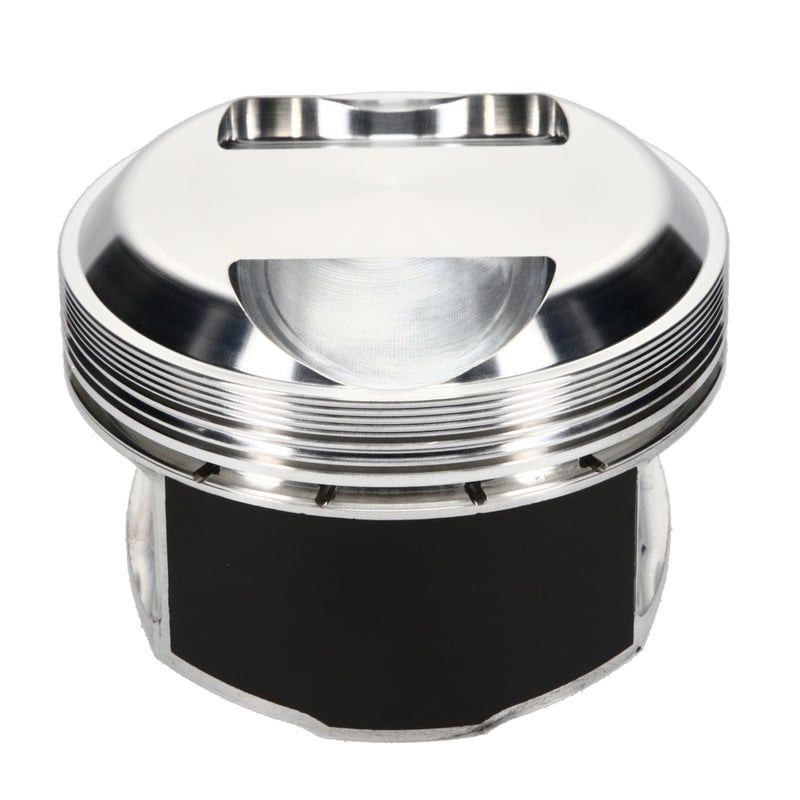

Forged pistons 3.0L 12v 930 Porsche

Brand Forged Pistons

Condition: New product

Forged pistons Porsche 911 Carrera 3.0 (1976-1977): bore 95 mm, CR OEM 8.5:1, pin 22 mm, Pin Height 34 mm. Complete table, compatibilities 930/02-930/12, vehicles & OEM references.

More details

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Porsche 3.0 L 12 V Carrera 3.0 (1976–1977, engines 930/02 & 930/12, naturally aspirated) :

Reference	OEM Bore 95,00 mm	OEM CR 8,5 :1	OEM Pin 22 mm	Height OEM Pin 34,00 mm	Range	Coating	Aluminium	Forging	Dome	Weight	Rings
JE-274048	95	9.5:1	22	34.0	JE Round	NC	2618	Round	38.5	450.0	NC
JE-353246	95	9.5:1	22	33.9	JE Round	NC	2618	Round	38.5	NC	NC
JE-381253	95	10:1	22	33.9	JE	NC	4032	NC	NC	NC	NC
JE-274049	95	10.5:1	22	34.0	JE Round	NC	2618	Round	44.7	467.0	NC
JE-353247	95	10.5:1	22	33.9	JE Round	NC	2618	Round	44.7	NC	NC
K1720DA	95	10.5:1	22	34.0	Wossner	NC	NC	NC	42.2	NC	950XSY
K9254DA	95	10.5:1	22	34.0	Wossner	NC	NC	Round	42.2	NC	950XSY
JE-353248	95	11.5:1	22	33.9	JE Round	NC	2618	Round	49.7	NC	NC
K1730DA	95	11.5:1	22	34.0	Wossner	NC	NC	NC	51.6	NC	950XSY
K9456DA	95	11.5:1	22	34.0	Wossner	NC	NC	Round	52.4	NC	950XSY
JE-274638	98	9.5:1	22	34.0	JE	NC	2618	NC	35.2	NC	NC
JE-353249	98	9.5:1	22	33.9	JE Round	NC	2618	Round	35.2	NC	NC
JE-381254	98	10:1	22	33.9	JE	NC	4032	NC	NC	NC	NC
JE-274051	98	10.5:1	22	34.0	JE Round	NC	2618	Round	41.8	478.0	NC
JE-353250	98	10.5:1	22	33.9	JE Round	NC	2618	Round	41.7	NC	NC
K9254D300	98	11.1:1	22	34.0	Wossner	NC	NC	Round	42.2	NC	980XSY
JE-353251	98	11.5:1	22	33.9	JE Round	NC	2618	Round	47.1	NC	NC
JE-353252	100	9.5:1	22	33.9	JE Round	NC	2618	Round	32.9	NC	NC
JE-381255	100	10:1	22	33.9	JE	NC	4032	NC	NC	NC	NC
JE-353253	100	10.5:1	22	33.9	JE Round	NC	2618	Round	39.8	NC	NC
JE-353254	100	11.5:1	22	33.9	JE Round	NC	2618	Round	45.3	NC	NC
JE-381256	102	10:1	22	33.9	JE	NC	4032	NC	NC	NC	NC
JE-353255	102	10.5:1	22	33.9	JE Round	NC	2618	Round	37.7	NC	NC
JE-353256	102	11.5:1	22	33.9	JE Round	NC	2618	Round	43.5	NC	NC

Compatibility (engine codes):

930/02 — Carrera 3.0 (gearbox manuelle)
930/12 — Carrera 3.0 (Sportomatic)

Original vehicles equipped with the 3.0 (Carrera 3.0, naturally aspirated) :

Brand	Model	Engine code	Power	Years
Porsche	911 Carrera 3.0 Coupe (RoW)	930/02	200 hp	1976 – 1977
Porsche	911 Carrera 3.0 Targa (RoW)	930/12	200 hp	1976 – 1977

OEM piston references :

911 Carrera 3.0 (1976–1977): 930 103 962 05 — Kit pistons + cylinders 95 mm, 8.5:1 (Mahle, Nikasil). Replaced / equivalent: 930 103 962 03 depending on markets.
Rings 95 mm (3.0 NA/T): 930 103 963 00 — set of rings (Ø 95 mm, Standard).

* indicative references from catalogues / distributors: to be checked by VIN and tolerance group (selection/bore).

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
