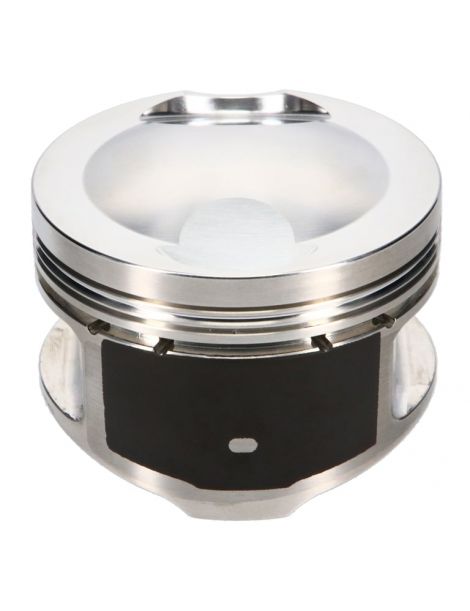

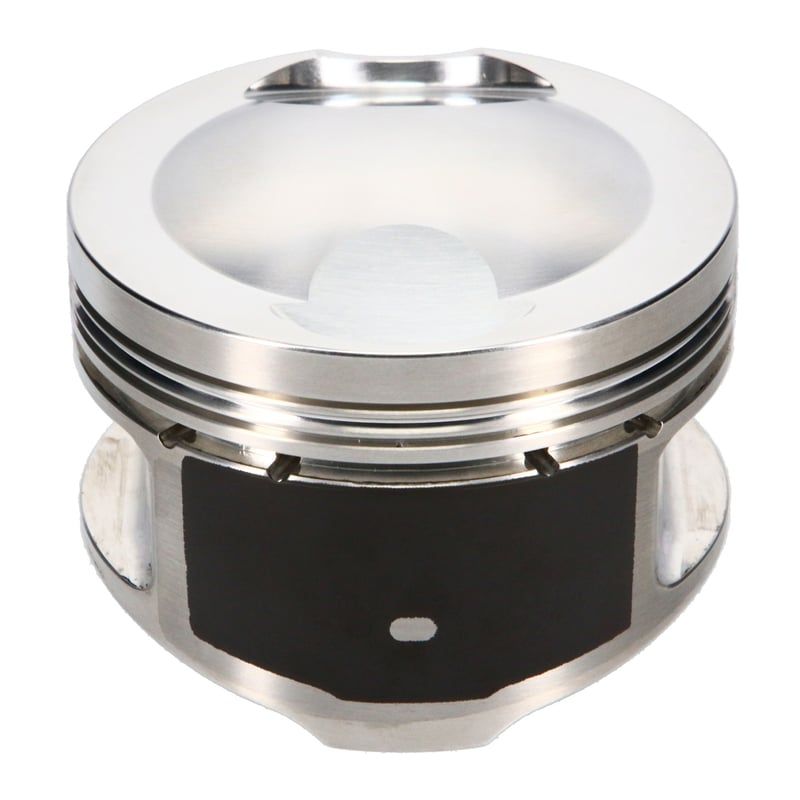

JE & Forged Pistons Wossner for Ferrari 308 GTB/GTS 3.0 L F106AB- bores 81.5-82 mm, RV 9.0-10.6:1, Pin 18.5 mm. Table 6 references, no OEM reference available (racing parts).
Specifications of the forged pistons offered by NSB Concept for Ferrari V8 3.0 L 16 v F106AB :
| Reference piston | Bore (mm)OEM 81,00 | CROEM 9,2 :1 | pin (mm)OEM 18,5 | Height pin (mm)OEM 30,7 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-362222 | 81,5 | 10 :1 | 18,5 | 30,7 | JE Round | 2618 | NC | Round | +13,0 | 312 | NC |
| K9004D050 | 81,5 | 10,5 :1 | 18,5 | 31,0 | Wössner | NC | NC | Round | +15,0 | NC | 815XSY |
| JE-362220 | 81,5 | 9 :1 | 18,5 | 30,7 | JE Round | 2618 | NC | Round | +7,8 | 300 | NC |
| JE-362223 | 82,0 | 10 :1 | 18,5 | 30,7 | JE Round | 2618 | NC | Round | +12,6 | 314 | NC |
| K9004D100 | 82,0 | 10,6 :1 | 18,5 | 31,0 | Wössner | NC | NC | Round | +15,0 | NC | 820XSY |
| JE-362221 | 82,0 | 9 :1 | 18,5 | 30,7 | JE Round | 2618 | NC | Round | +7,5 | 304 | NC |
Compatibility engine :
| Brand | Model | Type | Power (ch) | Years |
|---|---|---|---|---|
| Ferrari | 308 GTB | Tipo F106AB | 255 | 1975 – 1980 |
| Ferrari | 308 GTS | Tipo F106AB | 255 | 1977 – 1980 |
Piston manufacturer (OEM) references:
No "bare piston" or "piston + rings" references are available in the Ferrari parts catalog: racing parts only.
Warning: Before any installation, please absolutely check the integrity and conformity of each component of the piston kit, as well as the conformity of the assembly in the engine; any warranty is strictly limited to the piston kit components only.
