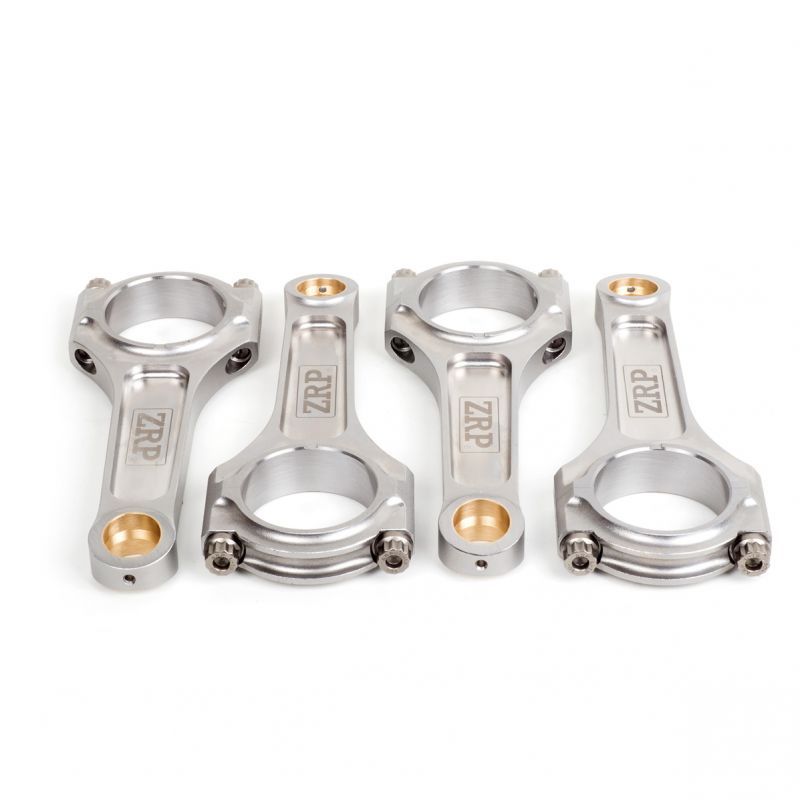

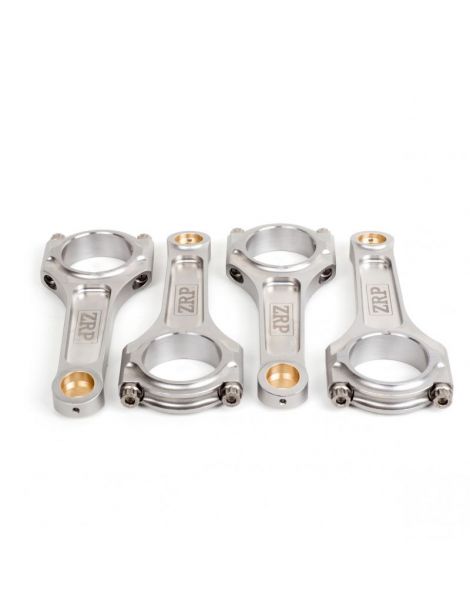

Connecting rods forged 138.90mm I-shaped ZRP Heavy Duty HONDA 2.0 K20A K20Z

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel for your HONDA

The head of the ZRP forged Connecting rods for HONDA

This Connecting rod is reinforced which allows it to withstand an increase in engine compression rates.

The design of this ZRP forged I-shaped Connecting rod for HONDA

Features:

• Pin: 138.90mm
• Foot diameter: 51.00mm
• Foot width: 19.83mm
• Piston pin / Gudgeon pin diameter: 22.00mm
• Rod bolts supplied: ARP2000
• Thread of screws provided: 3/8"
• Weight: 510g
• Maximum admissible power: 800hp



Lexicon:

1)Small End
2) Foot diameter
3) Connecting rod CoRPS
4) Rod bolt
5) Big End
6) Nut
7) Connecting rod cap
8) Head diameter
9) EntrPin

When you upgrade your K20A2 engine to a forged engine, it is recommended to fit forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your original Pistons with forged Pistons.

Find the Forged Pistons for your HONDA

Forged pistons

Find the Connecting rods Bearings for your ZRP forged Connecting rods for your HONDA Civic VII Type R EP3 2.0 16V K20A2:

BearingS of Connecting rodS

Find this kit with reinforced Rod bolts ARP L19 and ARP 625+ for your HONDA Civic VII Type R EP3 2.0 16V K20A2:

Connecting rodS ForgeES ZRP WITH SCREWS ARP L19 OR 625+
