Reduced price! Pistons forgés 2.4L 16v F20C F22C équipé vilebrequin K24 Honda View larger

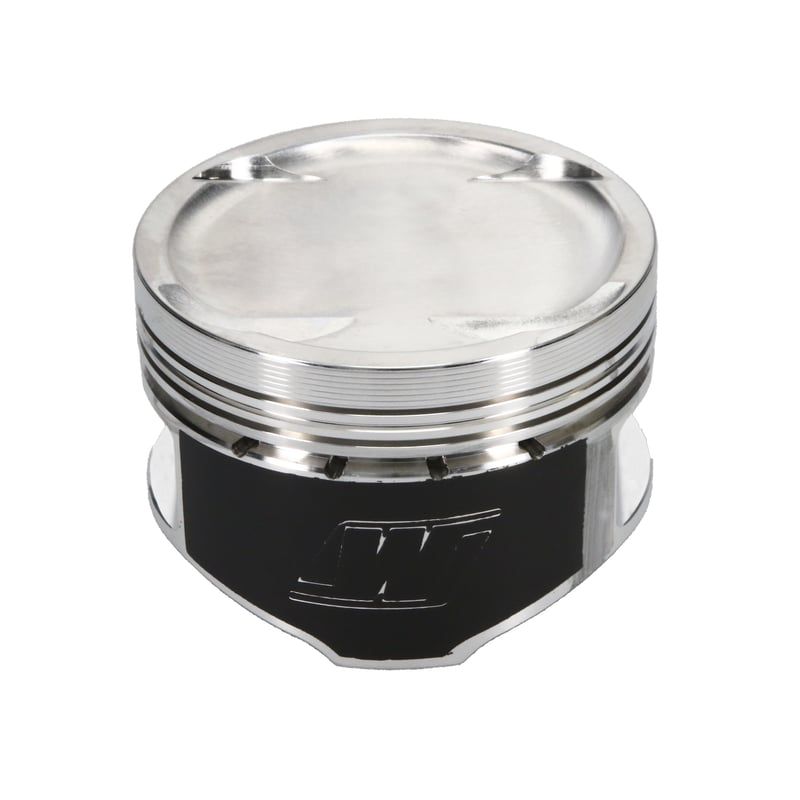

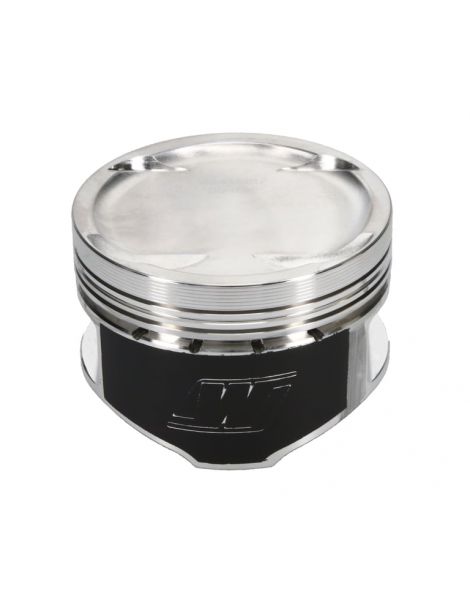

Forged pistons 2.4L 16v F20C F22C fitted K24 crankshaft Honda

New product

2.4-L forged pistons for Honda S2000 (F20C/F22C + K24 crankshaft): rings included, OEM/oversize bores, pin 23 mm, CH 30.00?mm. S2000 AP1/AP2 compatibility.

More details

589,08 € tax incl.

-25%

785,44 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Honda S2000 F20C/F22C converti 2.4 L with crankshaft K24 :

    ReferenceOEM Bore
    87,00 mm    		OEM CR 11,0–11,7 :1OEM Pin
    22 mm    		Height OEM Pin
    30,00 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    WK544M87879.4:12231WisecoSkirt2618NC-14.0NC8700XX
    WK544M88889.4:12231WisecoSkirt2618NC-14.0NC8800XX
    WK544M89899.4:12231WisecoSkirt2618NC-14.0NC8900XX


    Compatibility (engine codes):

    • Honda S2000 : F20C (F20C1/F20C2), F22C1 — conversion 2.4 L with crankshaft K24
    • Crankshaft donneur : K24A (A1/A2/A3/A4/A8) or K24Z7 (depending on adaptation)


    vehicles original equipped the F20C/F22C (base S2000) :

    BrandModelEngine codePowerYears
    HondaS2000 AP1 (JPN)F20C250 hp1999 – 2005
    HondaS2000 AP1 (US/EU)F20C237 hp2000 – 2003
    HondaS2000 AP2 (JPN)F22C1242 → 239 hp2006 – 2009
    HondaS2000 AP2 (US)F22C1240 → 237 hp2004 – 2009


    OEM piston references :

    • Honda S2000 F20C (AP1) — piston(s) OEM : 13010-PCX-A01 (Set A STD), 13030-PCX-506 (Set 0,25).
    • Honda S2000 F22C1 (AP2) — piston(s) OEM : 13010-PZX-A00 (Set A STD).

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.

    Forged pistons 2.4 L for Honda S2000 (F20C/F22C + crankshaft K24) : rings included, bores OEM/oversize, pin 23 mm, CH 30,00 mm. Compatibility S2000 AP1/AP2.
