External wastegate TIAL 38mm MVS-A flanges V-Band water cooling

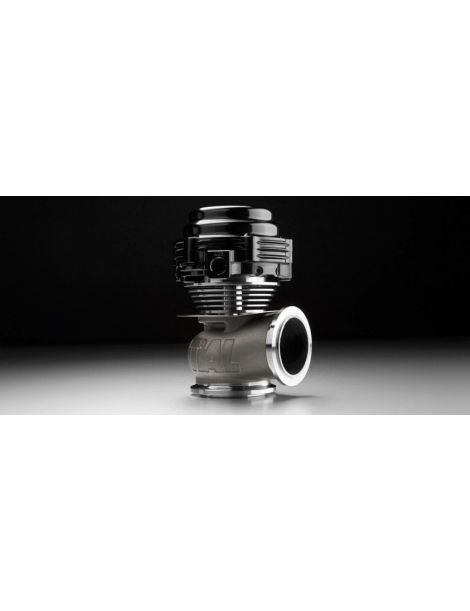

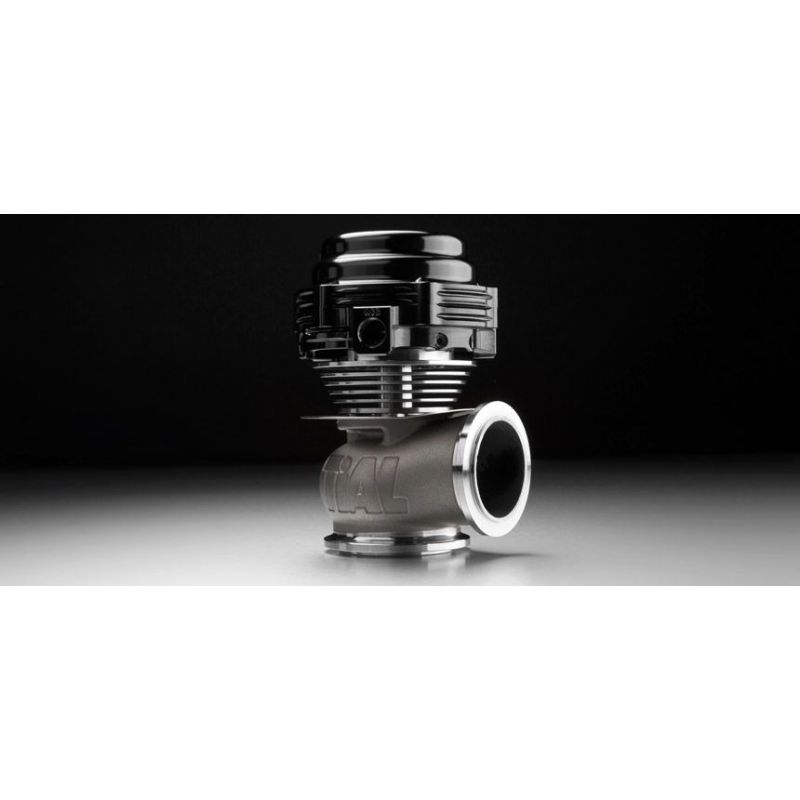

TIAL 38mm MVS-A External Wastegate with V-Band Flanges and Water Cooling

High-temperature NiCrFe alloy for the valve and SS347 stainless steel for the housing around the valve, incorporating a water cooling circuit for DASH4 connection:

High-temperature silicone diaphragm reinforced with Nomex.
Nitronic 60 stainless steel for the valve seat and valve guide.
All supplied accessories are stainless steel.
The supplied weld flanges are 304L stainless steel.
3 threaded holes at the bottom and 2 at the top for easy connection of the turbo pressure hose without having to rotate the wastegate after installation.
Very compact, height: 9.4cm.
Integrates a cooling circuit via a -4 AN connection (UNF-JIC 7/16") without the risk of significantly increasing the engine cooling circuit temperature (see photo)
