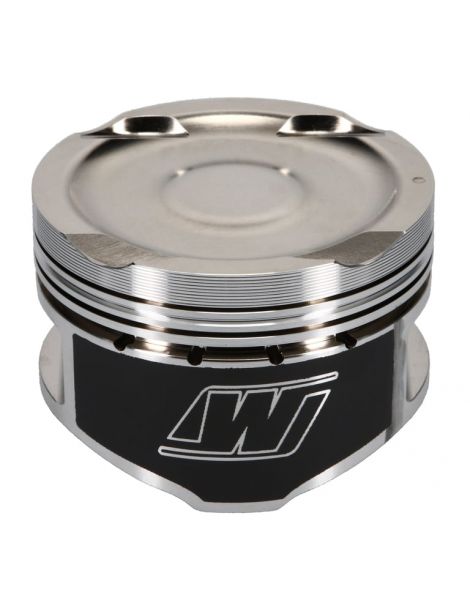

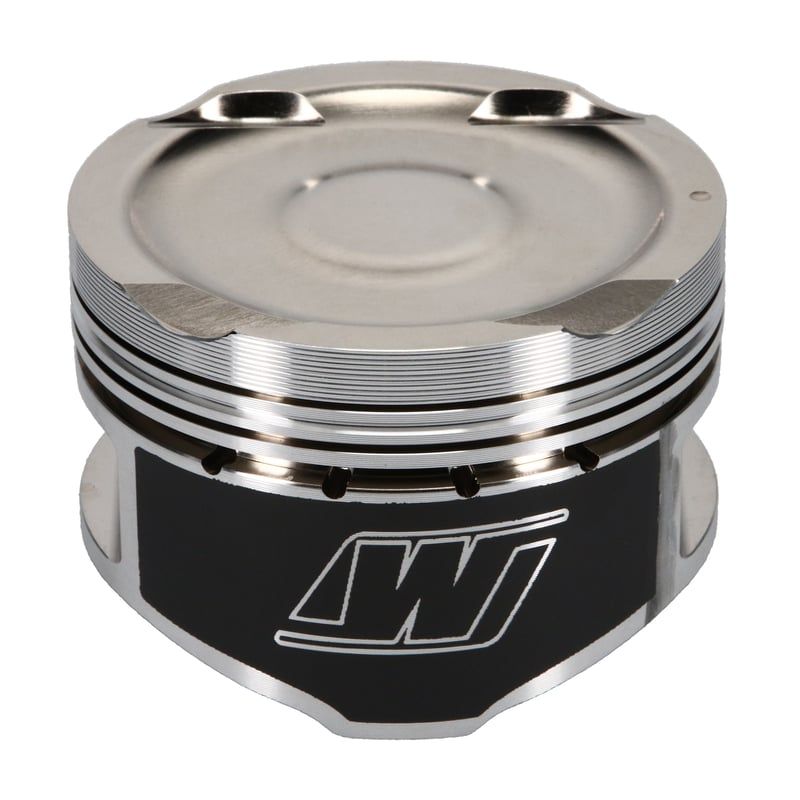

Wiseco WKE263M86 6-Piston Forged Kit

Wiseco 6-piston forged kit, part WKE263M86, high compression 13.5:1 configuration for race and competition engine builds.

Technical specifications

• Manufacturer: Wiseco (USA)
• Origin: Made in USA (Mentor, Ohio)
• Part number: WKE263M86
• Type: High performance forged piston
• Bore diameter: 86.00 mm (standard, no oversize)
• Compression ratio: 13.5:1
• Compression height: 30.19 mm
• Material: Aerospace-grade forged aluminium

Kit contents

• 6 forged WKE263M86 pistons
• 6 ring sets
• 6 wrist pins (gudgeon pins)
• 12 Spirolox circlips (2 per piston)

Wiseco is a historic American manufacturer (established in 1941 in Mentor, Ohio), recognised as the worldwide reference in high performance forged pistons for motorsport applications. Wiseco pistons are forged from aerospace-grade aluminium, a process that compresses the material molecules to achieve superior density and increased resistance to impact and fatigue, essential for engines running high compression and high RPM.

Important: 13.5:1 compression ratio intended for built engines running suitable fuel (high octane petrol, methanol or ethanol depending on the build). Verify piston-to-wall clearances and ring end gaps before assembly per Wiseco recommendations. Installation requires a properly prepared engine (block bored to correct diameter, cylinder head preparation).
