Universal thermostatic oil cooler kit
Manufacturers
Universal thermostatic oil cooler kit
Warning: Last items in stock!
KRT-M235L19AN10
New product

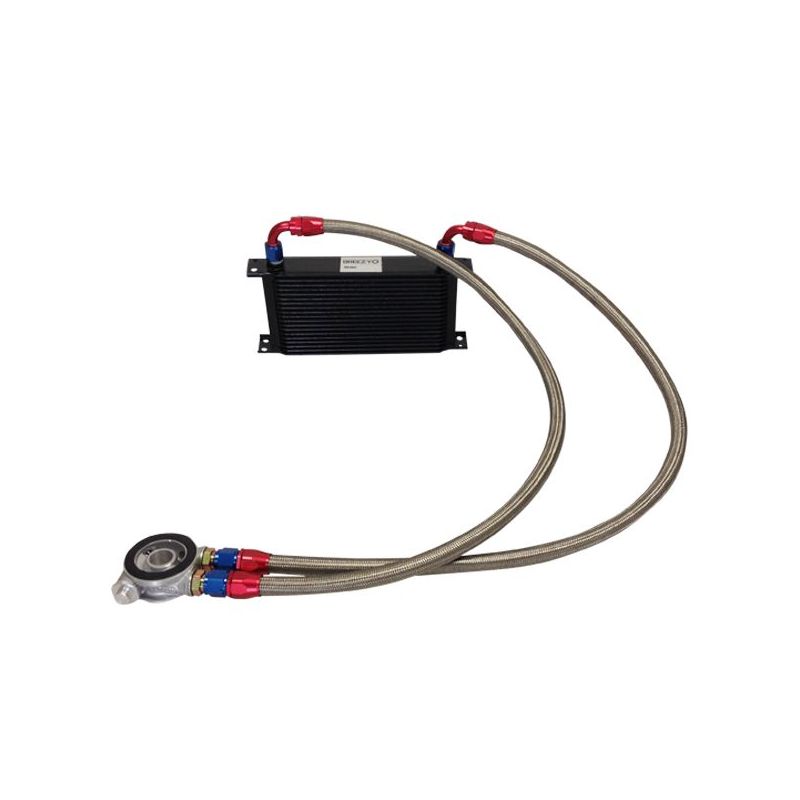

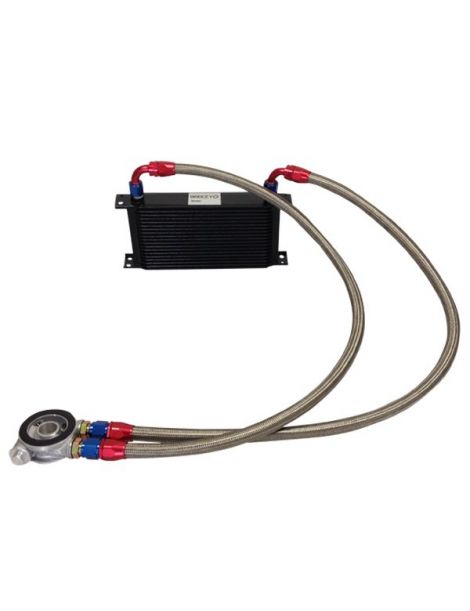

BREEZY 235mm 19-row matrix oil cooler kit, DASH10 male connections with MOCAL 92A deg C thermostatic sandwich plate
PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:
ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.
To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: http://catalog.mann-filter.com/EU/fre/vehicle
Then click on your thread and add the nipple to your cart:
- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple
This kit fits all vehicles with a screw-on oil filter.
Thickness: 51mm | Matrix dimensions 235mm (in mm) | ||||||
Number of rows | Height excluding connections | Connections inlet/outlet | Connection spacing | Fixing spacing | Total length | ||
7 | 51 | Tapping M12 x 150 7/8??-14 (DASH10) | 248 | 308 | 330 | ||
13 | 99 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | ||
16 | 123 width="56">19 | 147 width="56">25 | 193 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 |
34 | 262 | UNF-JIC 7/8-14 (DASH10) | 248 width="65"> 308 | 330 | |||
44 | 347 | UNF-JIC 7/8-14 (DASH10) | 248 | 308 | 330 | ||
BREEZY oil cooler, 235 mm matrix, 19 rows, UNF-JIC 7/8"-14 (DASH10) fittings, black finish. Ref. M235L19AN10.
MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
MOCAL sandwich plate with built-in thermostat (opens at 92°C), between the engine block and the oil filter. Oil reaches the cooler only once the temperature is reached, for faster warm-up and stable regulation. 1/2 BSP outlets.
