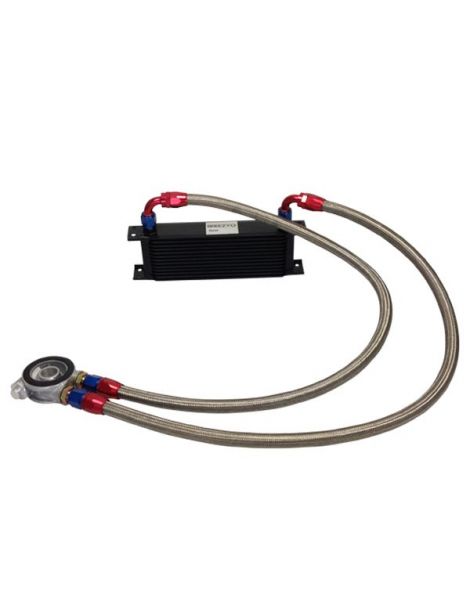

BREEZY DASH10 235mm 13-row matrix oil radiator kit, MOCAL 92A deg C thermostatic plate

PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:

• 1 13-row matrix 235mm oil cooler, male connections: UNF-JIC 7/8"-14 (DASH10)
• 1 MOCALA thermostatic 92A deg C sandwich plate with its O-ring + 2 sealing gaskets
• 2 UNF-JIC 7/8"-14 DASH10 male-to-male adapters (sandwich plate inlet and outlet)
• 2x 1 meter of DASH10 stainless steel braided hose with 1 straight fitting and 1 90A elbow fitting UNF-JIC 7/8"-14 (DASH10)

ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.

To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: http://catalog.mann-filter.com/EU/fre/vehicle

Then click on your thread and add the nipple to your cart:

- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple

This kit fits all vehicles with a screw-on oil filter.

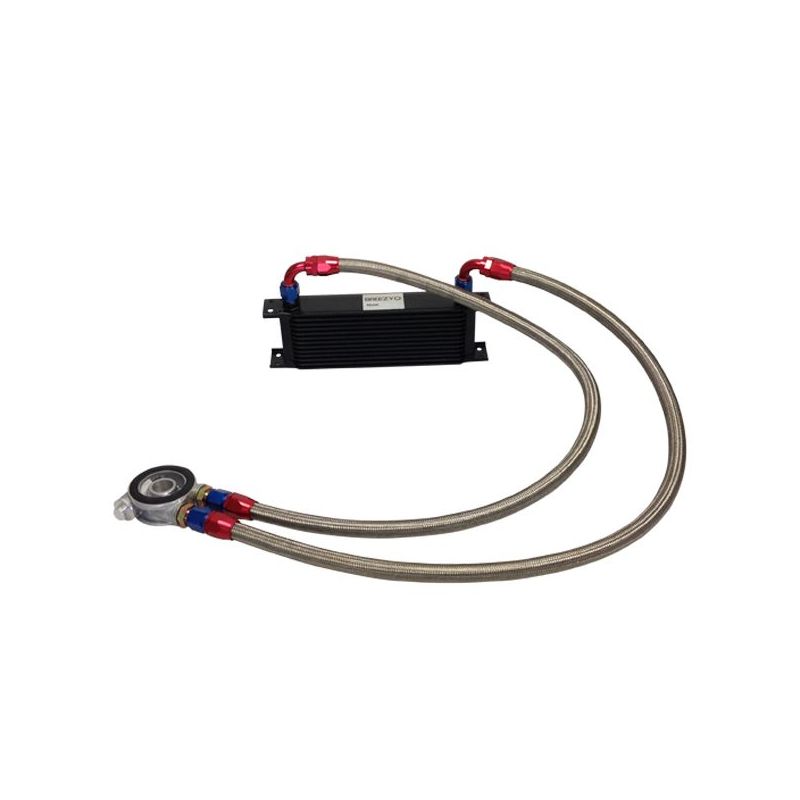

Please note: the hose shown with crimped fittings is for illustration only. The kit is supplied with 2 x 1 m DASH 10 stainless braided hoses, 2 straight DASH 10 blue/red fittings and 2 x 90° DASH 10 blue/red fittings, to be assembled yourself.

Fitting the ends onto DASH hose: cut the hose cleanly (wrap tape around it to limit fraying); slide the nut then the hose into the fitting body up to the stop and mark it; lubricate the nipple with engine oil; screw by hand then tighten with a wrench without letting the hose back out; pressure-test the line before fitting it to the vehicle.
