Universal thermostatic oil cooler kit
Manufacturers
Universal thermostatic oil cooler kit
Warning: Last items in stock!
KRT-M235L10AN10
New product

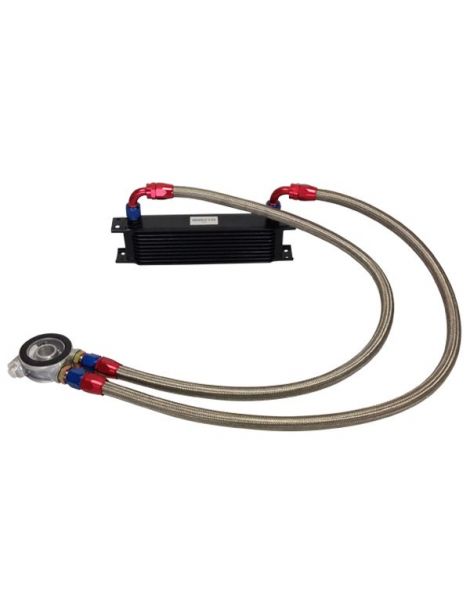

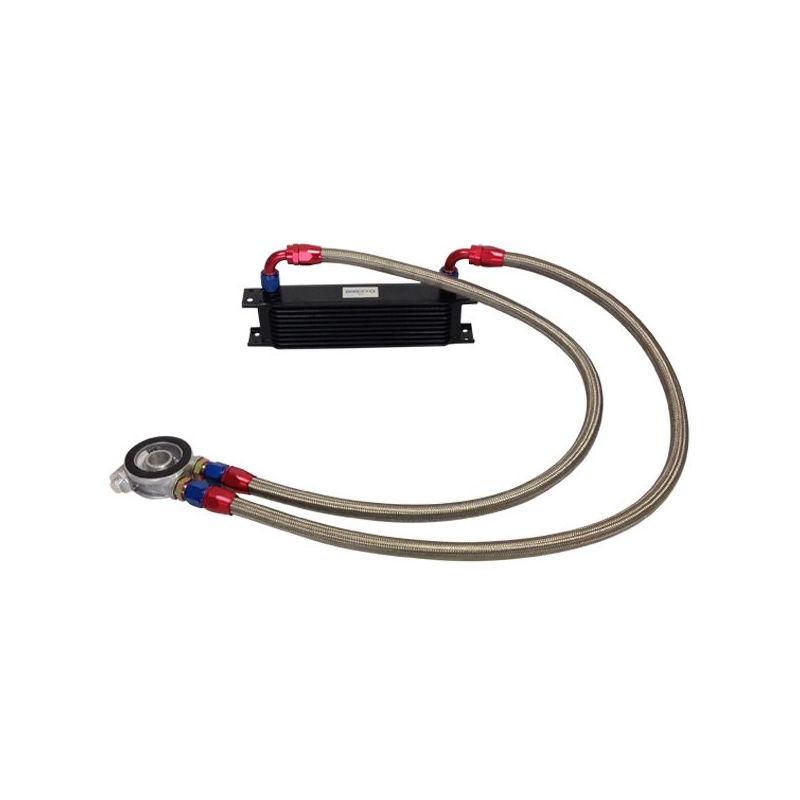

BREEZY 235mm 10-row matrix oil cooler kit, DASH10 male connections with MOCAL 92A deg C thermostatic sandwich plate
PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:
ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.
To determine your thread size, we invite you to select your car's oil filter on this filter manufacturer's website: https://catalog.mann-filter.com/EU/fre/vehicle
Then click on your thread size and add the nipple to your cart:
- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- M16x150 Nipple
- 13/16" Nipple
- Nipple 5/8"
- Nipple 5/8" INVERSE
This kit mounts on all vehicles with a screw-on oil filter.
Thickness: 51mm | Matrix dimensions 235mm (in mm) | |||||
Number of rows | Height excluding connections | Input/output connections | Connection spacing | Fixing spacing | Length total | |
7 | 51 | M12 x 150 thread | ||||
10 | 77 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
13 | 99 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 width="65">308 | 330 |
19 | 147 | UNF-JIC 7/8-14 (DASH10) width="80"> 248 | 308 | 330 | ||
25 | 193 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
34 | 262 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
44 | 347 | |||||
MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
MOCAL sandwich plate with built-in thermostat (opens at 92°C), between the engine block and the oil filter. Oil reaches the cooler only once the temperature is reached, for faster warm-up and stable regulation. 1/2 BSP outlets.
