Universal thermostatic oil cooler kit
Manufacturers
Universal thermostatic oil cooler kit
Warning: Last items in stock!
KRT-M235L19AN10-85
New product

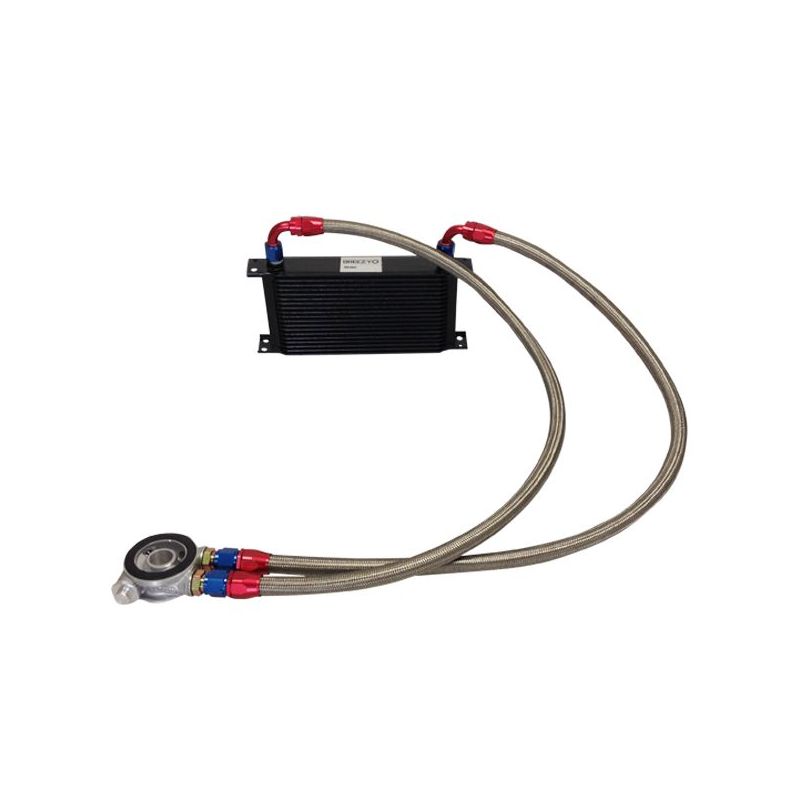

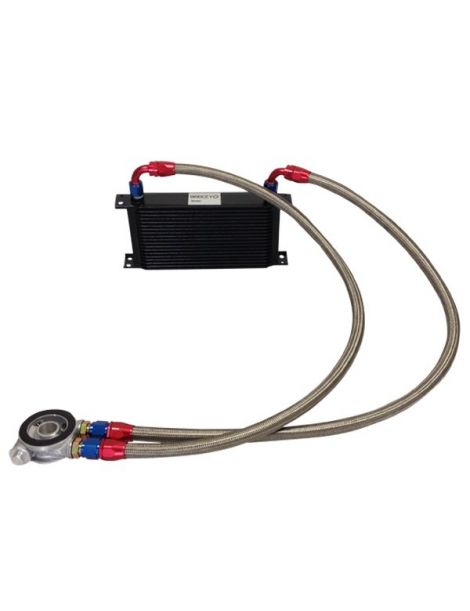

BREEZY 235mm 19-row matrix oil cooler kit, DASH10 male connections with 85A deg C MOCAL thermostatic sandwich plate
PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:
ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.
To determine your thread size, we invite you to select your car's oil filter on this filter manufacturer's website: https://catalog.mann-filter.com/EU/fre/vehicle
Then click on your thread size and add the nipple to your cart:
- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- M16x150 Nipple
- 13/16" Nipple
- Nipple 5/8"
- Nipple 5/8" INVERSE
This kit mounts on all vehicles with a screw-on oil filter.
Thickness: 51mm | Matrix dimensions 235mm (in mm) | |||||
Number of rows | Height excluding connections | Input/output connections | Connection spacing | Fixing spacing | Length total | |
7 | 51 | M12 x 150 thread | ||||
10 | 77 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
13 | 99 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 width="65">308 | 330 |
19 | 147 | UNF-JIC 7/8-14 (DASH10) width="80"> 248 | 308 | 330 | ||
25 | 193 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
34 | 262 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
44 | 347 | |||||
Stainless-steel braided reinforced hose, DASH (AN) standard, sold per metre. Nitrile core suitable for fuel, oil and coolant. Assembles with reusable DASH (AN) fittings, no crimping or special tooling required.
Reusable straight hose end fitting for DASH (AN) braided hose. Blue and red anodised aluminium, swivel nut and metal-to-metal cone seal. Assembles without crimping and can be reused after disassembly.
Reusable 90° hose end fitting for DASH (AN) braided hose. Blue and red anodised aluminium, swivel nut and metal-to-metal cone seal. Assembles without crimping and can be reused after disassembly.
BREEZY oil cooler, 235 mm matrix, 19 rows, UNF-JIC 7/8"-14 (DASH10) fittings, black finish. Ref. M235L19AN10.
MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
MOCAL sandwich plate with built-in thermostat (opens at 85°C), between the engine block and the oil filter. Oil reaches the cooler only once the temperature is reached, for faster warm-up and stable regulation. 1/2 BSP outlets.
