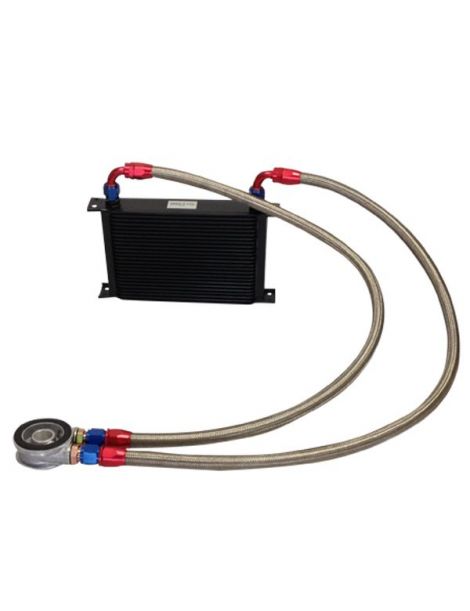

BREEZY DASH10 235mm 25-row matrix oil cooler kit, MOCAL standard plate

Reference: KR-M235L25AN10

Brand Kit MGB

Condition: New product

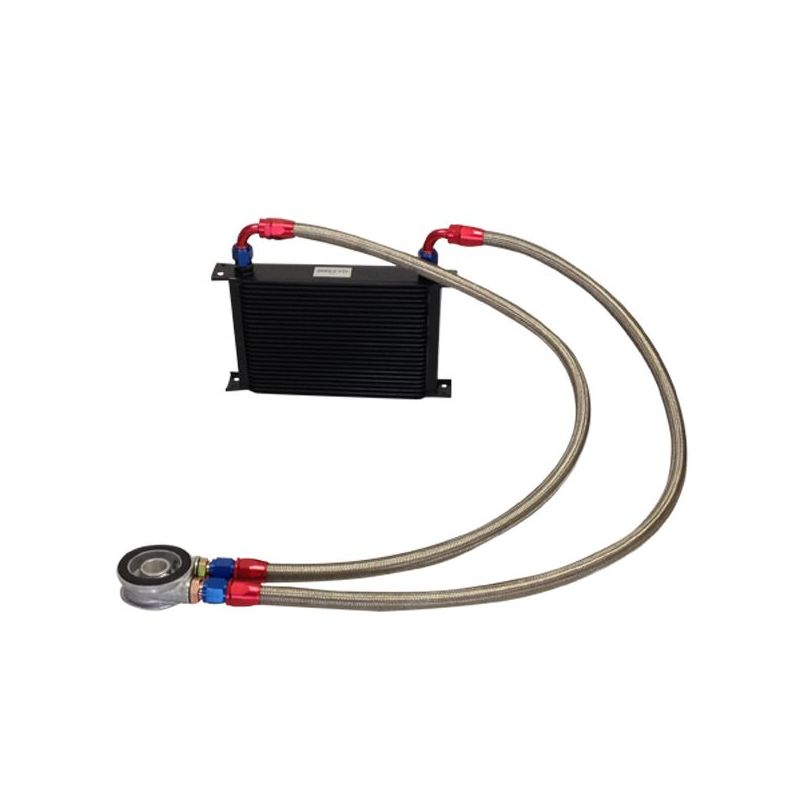

BREEZY 235mm 25-row matrix oil cooler kit, DASH10 male connections with MOCAL standard sandwich plate

PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:

1 x 25-row matrix oil cooler, 235mm, male connections: UNF-JIC 7/8"-14 (DASH10)
1 x standard MOCAL sandwich plate with O-ring + 2 sealing gaskets
2 x UNF-JIC 7/8"-14 DASH10 male-to-male adapters (sandwich plate inlet and outlet)
2 x 1-meter lengths of DASH10 stainless steel braided hose with 1 straight fitting and 1 x 90A UNF-JIC 7/8"-14 elbow fitting (DASH10)

ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.

To determine your thread size, we invite you to select your car's oil filter on this filter manufacturer's website: https://catalog.mann-filter.com/EU/fre/vehicle

Then click on your thread size and add the nipple to your cart:

This kit mounts on all vehicles with a screw-on oil filter.

Thickness: 51mm			Matrix dimensions 235mm (in mm)
Number of rows	Height excluding connections	Input/output connections	Connection centers	Fixing centers	Total length
7	51	Tapping M12 x 150
10	77	UNF-JIC 7/8??-14 (DASH10)	248	308	330
13	99	UNF-JIC 7/8??-14 (DASH10)	248	308	330 width="65"> 308	330
19	147	UNF-JIC 7/8-14 (DASH10) width="80"> 248	308	330
25	193	UNF-JIC 7/8??-14 (DASH10)	248	308	330
34	262	UNF-JIC 7/8??-14 (DASH10)	248	308	330
44	347

93,48 € -25% 124,64 € IN STOCK
1 x BREEZY Matrix 235mm 25 Row Oil Cooler DASH10 Black

BREEZY oil cooler, 235 mm matrix, 25 rows, UNF-JIC 7/8"-14 (DASH10) fittings, black finish. Ref. M235L25AN10.
93,48 € -25% 124,64 €
Reduced price!
Add to cart Add to cart More More
0,63 € -45% 1,14 € IN STOCK
2 x MOCAL straight adapter 1/2 BSP to DASH (AN) 10 male

MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
0,63 € -45% 1,14 €
Reduced price!
Add to cart Add to cart More More
1,13 € Out of stock
2 x Sealing washer for 1/2 BSP thread (Dowty type)

Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
1,13 €
Add to cart Add to cart More More
41,99 € Out of stock
1 x MOCAL standard sandwich plate 1/2 BSP

MOCAL standard sandwich plate fitted between the engine block and the oil filter. Two 1/2 BSP outlets to connect an oil cooler. Non-thermostatic version.
41,99 €
Add to cart Add to cart More More
59,80 € Out of stock
2 x Durite DASH 10 essence/huile renforcée inox au mètre
