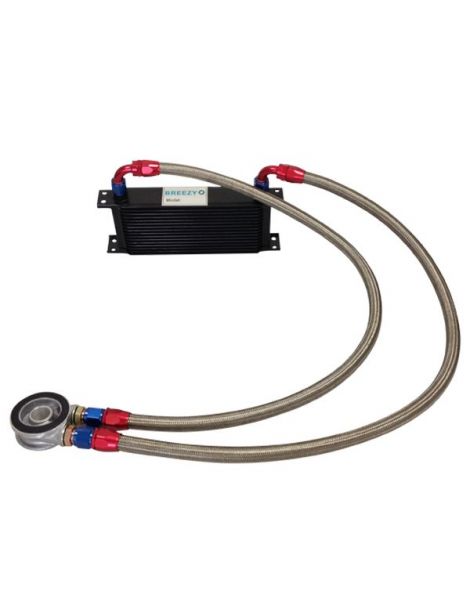

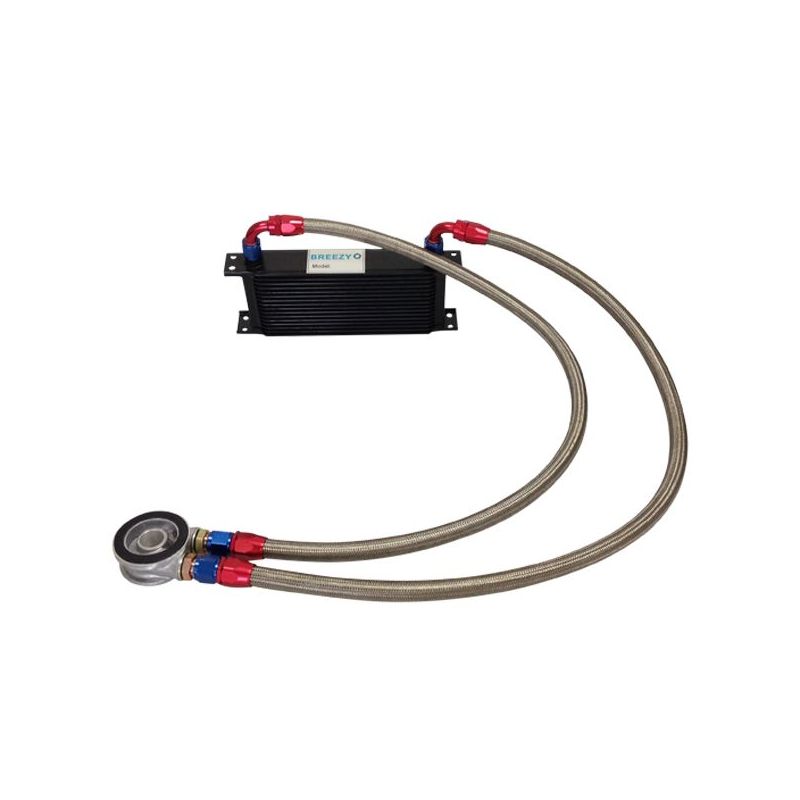

BREEZY DASH10 235mm 16-row matrix oil cooler kit, MOCAL standard plate

PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:

• 1 16-row matrix 235mm oil cooler, male connections: UNF-JIC 7/8"-14 (DASH10)
• 1 standard MOCAL sandwich plate with its O-ring + 2 sealing gaskets
• 2 male-to-male UNF-JIC 7/8"-14 DASH10 adapters (sandwich plate inlet and outlet)
• 2x 1 meter of DASH10 stainless steel braided hose with 1 straight fitting and 1 90A elbow fitting UNF-JIC 7/8"-14 (DASH10)

ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.

To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: http://catalog.mann-filter.com/EU/fre/vehicle

Then click on your thread and add the nipple to your cart:

- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple

This kit fits all vehicles with a screw-on oil filter.
