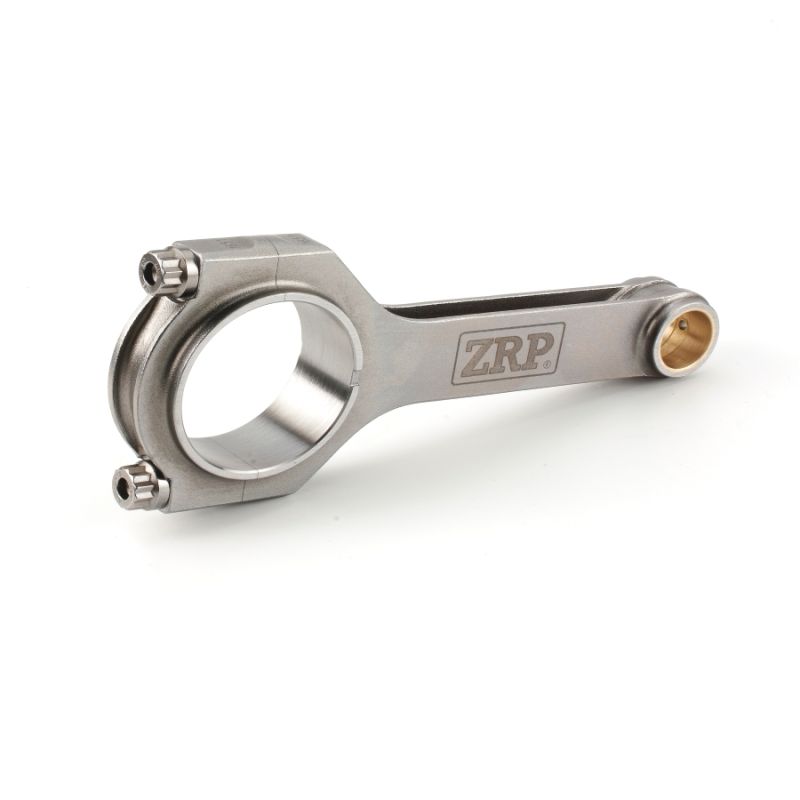

Forged connecting rods Hyundai - H-beam - 131 mm center-to-center - 18 mm pin for forged pistons

HYUNDAI reference R-HYU-001H Kit of 4 forged H-beam ZRP connecting rods with ARP bolts with connecting rod small end in aluminum-bronze silicone bushing

The ZRP brand is a subsidiary of Drakos Engineering, renowned for its experience in designing high performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed for your Hyundai engine the R-HYU-001H forged connecting rods, made of high strength 4340 steel and fitted with reinforced ARP connecting rod bolts to withstand the increased inertia linked to higher engine speeds, available in 2 ranges:

- ARP 2000: resistant up to 220,000 psi (or 15,000 bar)

- ARP L19: resistant up to 260,000 psi (or 18,000 bar)

The big end of the ZRP R-HYU-001H forged connecting rods for Hyundai engines is fitted with a machined aluminum-bronze silicone bushing before being ground to ensure the oil film is maintained with your piston pin.

The design of this ZRP R-HYU-001H H-beam forged connecting rod for Hyundai engines gives it exceptional resistance to significant increases in engine speed and compression ratio, as well as to the intense demands of competition, as we see with our tuner and enthusiast customers in circuit racing, rally, endurance and TTM, whom we supply for the build of their forged engines.

Specifications:

• Small end profile: flat
• Center to center distance: 131.00 mm
• Big end bore: 48.00 mm
• Big end width: 22.84 mm
• Piston pin diameter: 18.00 mm
• Connecting rod bolts supplied: ARP 2000 or ARP L19 (to choose)

Glossary:

1) Connecting rod small end
2) Small end diameter
3) Rod shank
4) Rod bolt
5) Connecting rod big end
6) Nut
7) Rod cap
8) Big end bore
9) Center to center distance

When converting your Hyundai engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal rod bearings, in addition to replacing your original pistons with forged pistons.
