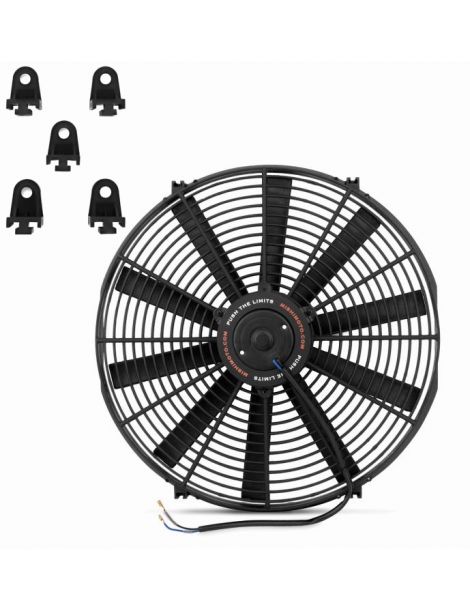

MISHIMOTO SPAL type 410mm 3140m3/h 12V extra-flat fan

MISHIMOTO SPAL type 410mm 3140m3/h 12V extra-flat fan

This high flow fan is ideal for improving the cooling of your engine (water and oil) but also for improving the performance of your turbo engine. Indeed, this competition fan can be installed on oil and water radiators (for engine cooling) but also on intercoolers/heat exchangers (for cooling the air entering the engine).

We recommend installing two small 12V fans rather than one larger one when the cooling area is rectangular, in order to cover as much surface area as possible.

This extra-flat 410mm fan is reversible, meaning it can be switched from an intake fan to a blowing fan very simply: reverse the polarity of the electrical connection (see below) and the direction of the propeller, by unscrewing the central nut whose pitch is reversed. This reversible fan is sold in suction mode.

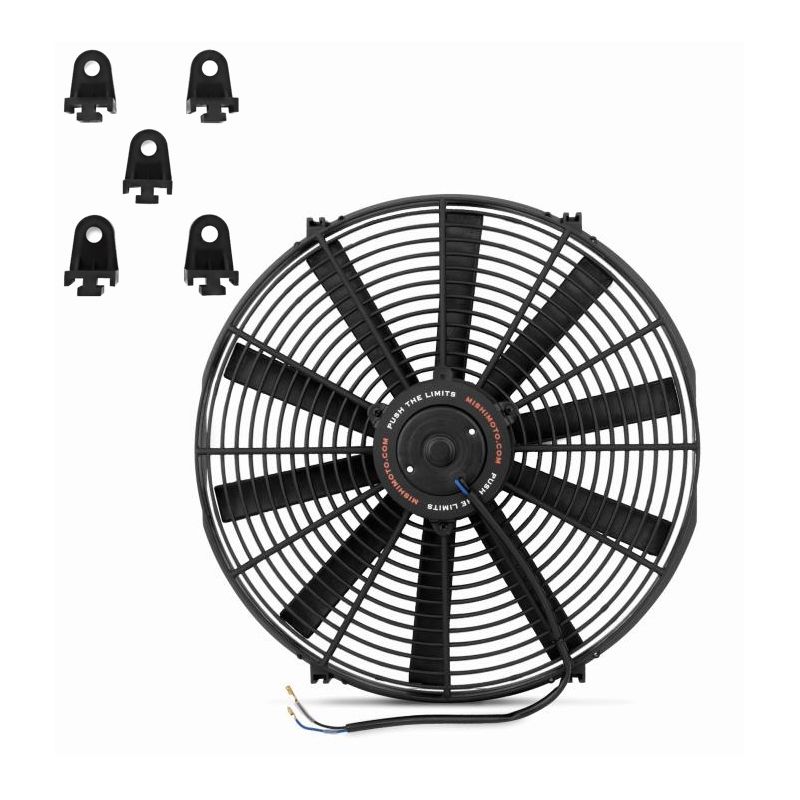

This SPAL type fan is compatible with all types of cooling applications: automotive, motorcycle, karting, prototype, quad, kart cross. and comes with mounting brackets.

Specifications:

• Overall diameter (casing): 410mm
• Fan diameter: 390mm

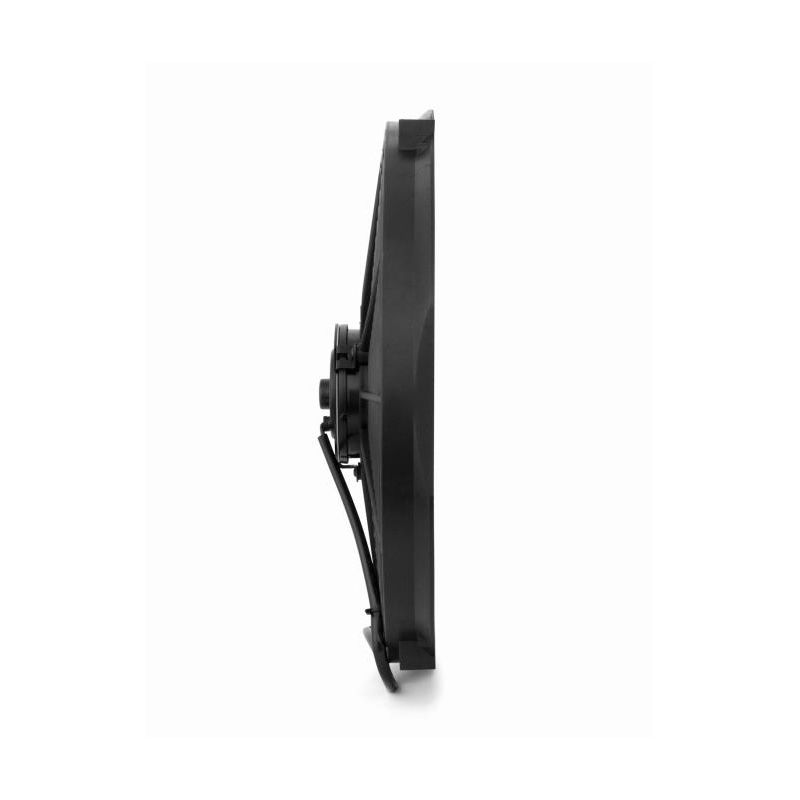

• Thickness: 75mm at its thickest point (center) then 55mm
• Power: 160 Watts
• Voltage: 12 Volts

Polarity Motor:

• Suction = blue wire: positive / black wire: negative
• Blower = blue wire: negative / black wire: positive
