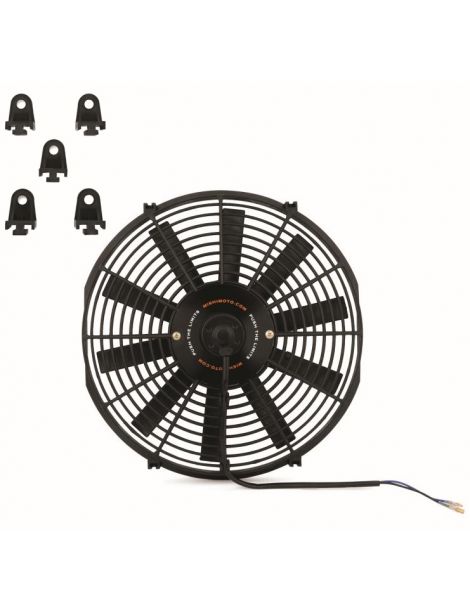

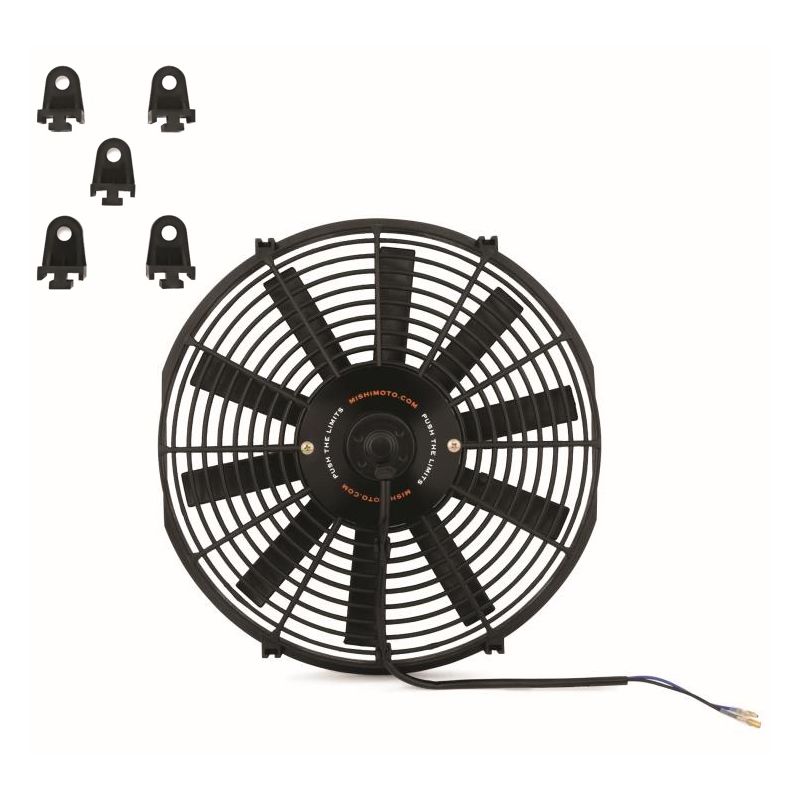

MISHIMOTO SPAL type 382mm 2200m3/h 12V extra-flat fan

MISHIMOTO SPAL Type Extra-Flat 382mm 2200m³/h 12V Fan

Protect your engine by improving its water and oil cooling through the installation of a competition fan on the radiators. For turbocharged engines, you can gain engine efficiency by installing this flat fan on the intercooler (better cylinder filling thanks to cooler air). If you have a rectangular radiator/heat exchanger, opt for installing two 12V fans rather than one larger one to cover as much surface area as possible. This high-flow fan is reversible: it only takes a few minutes to switch from an intake fan to a blowing fan by reversing the impeller via the central nut (be careful not to turn it to the left) and the electrical connection of this ultra-slim fan (see below). This SPAL-type fan has a small footprint, making it ideal for engine swaps but suitable for all types of applications such as cars, motorcycles, ATVs, karts, kart cross, and more. The prototypes. It comes with the necessary mounting hardware (see photo demonstration).

Specifications:

• Overall diameter (casing): 382mm
• Flyer diameter: 330mm
• Thickness: 75mm at the center then 55mm
• Power: 160W
• Voltage: 12V

Fan electrical connection:

• EXTRACT: BLUE wire: + / BLACK wire: -
• BLOWER: BLUE wire: - / BLACK wire: +
