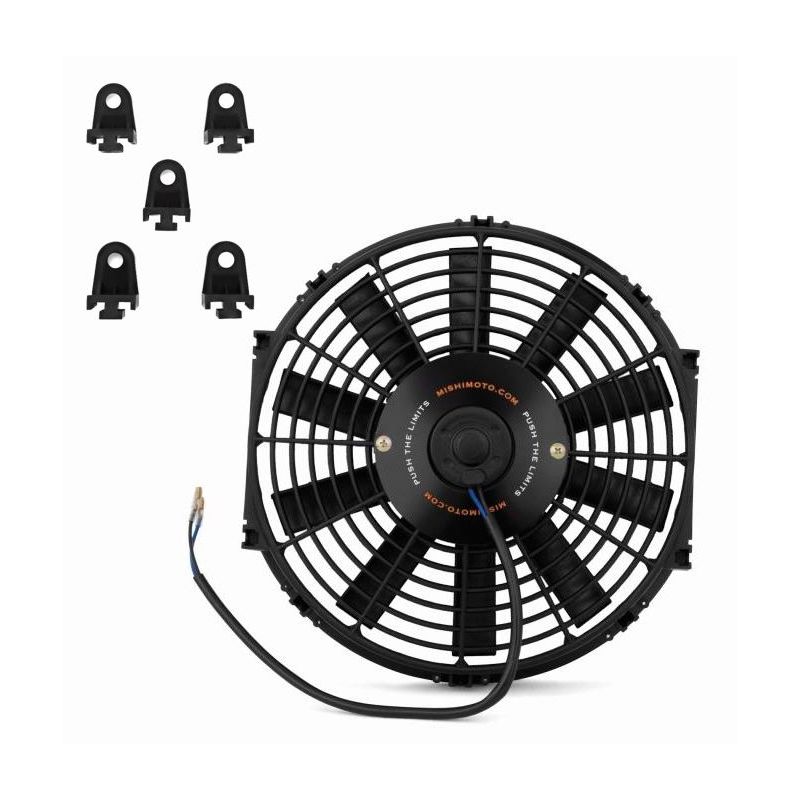

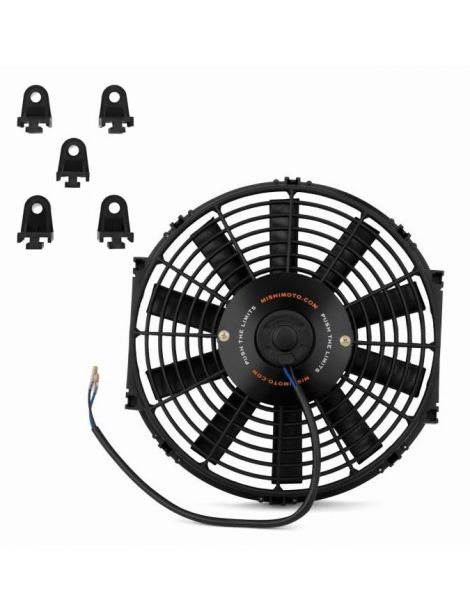

MISHIMOTO SPAL type 310mm 1950m3/h 12V extra-flat fan

MISHIMOTO SPAL Type 310mm 1950m³/h 12V Extra-Slim Fan

Ideal for optimizing your car's cooling, this high-flow fan offers a compact design, which is very useful during an engine swap, for example. For rectangular radiators/intercoolers, we recommend installing two smaller fans rather than one larger one.

This 12V automotive fan has the unique feature of being reversible: you can easily and quickly switch from an intake fan to an exhaust fan.

To do this, simply reverse the propeller (unscrew the central nut with a left-hand thread, using an 8mm wrench) and the polarity of the electrical connection. This competition fan is delivered with suction.

Universal fan, usable for any cooling application: automotive, cross car, prototype, motorcycle, quad, karting

Specifications:

• Overall diameter of blade housing: 310mm
• Outer diameter of casing: 319mm
• Flute diameter: 280mm
• Thickness: 66mm at the center (including motor nipple) then 55mm
• Power: 160W
• Voltage: 12V

Connection Electric:A:

• VACUUM: blue wire: + and black wire: -
• BLOWER: blue wire: - and black wire: +
