90A 3D stainless steel elbow for exhaust system

This 90A stainless steel elbow is perfect for making custom exhaust systems because it is made of 304L stainless steel (very long lifespan and good resonance) and its 1.6mm thickness gives it lightness. This 90A stainless steel elbow, with a radius of 76mm, has no straight section, so it cannot be pushed on; it will need to be welded.

For a high-performance exhaust system, complex shapes should be avoided (use as few bends as possible) as well as obstacles (intermediate pipe, muffler, reducer, etc.), and of course, leaks must be prevented.

We offer everything needed for the fabrication of custom exhaust systems, from stainless steel tubing to V-band flanges, as well as mounting brackets and exhaust flex pipes: Custom Exhaust

Warning: Custom exhausts are not road legal; their use is therefore reserved for competition and/or track days.

Specifications:

• Material: 304L Stainless Steel
• Type: Rolled welded
• External diameter: 60.3mm
• Internal diameter: 57.1mm
• Thickness: 1.6mm
• Radius: 76mm
• Weight: 0.28kg

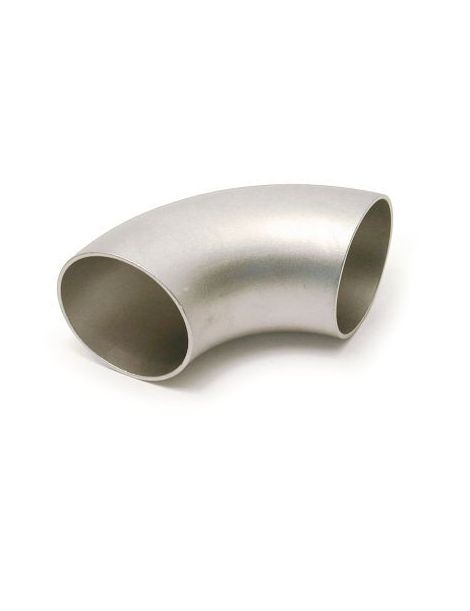

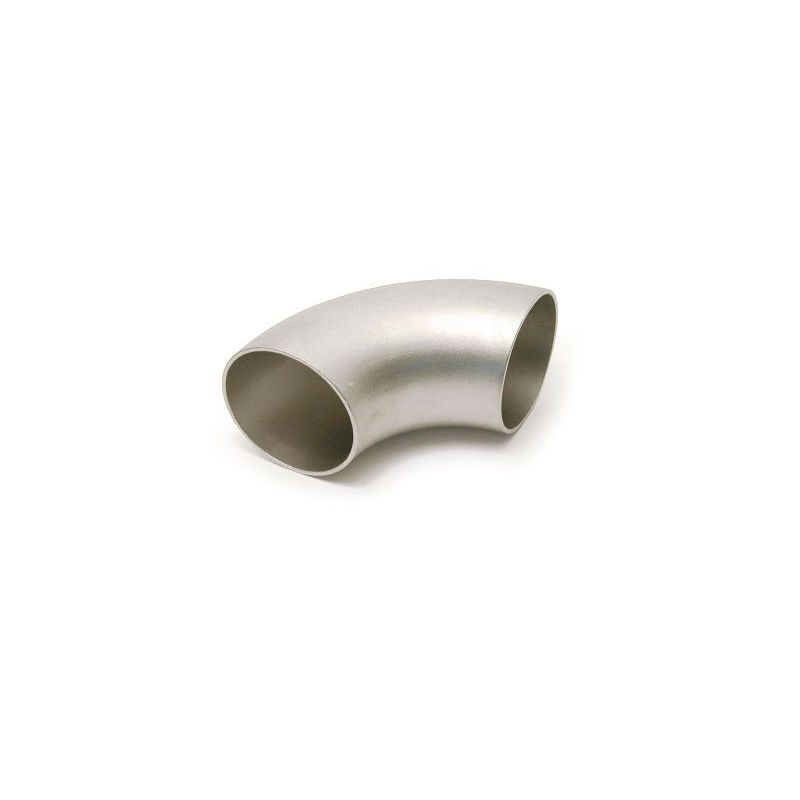

Generic photo
