Performance part

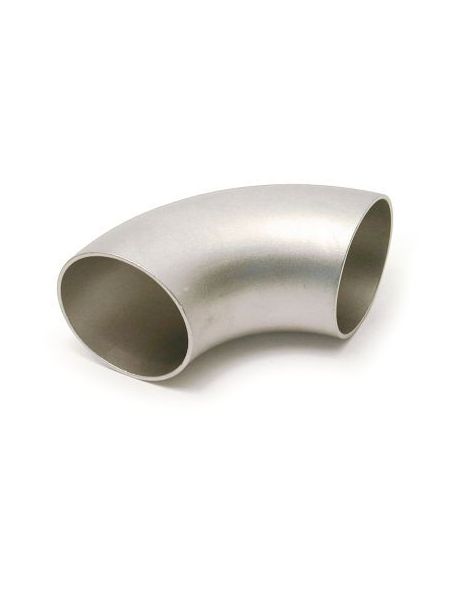

90 3D Stainless Steel Elbow for Manifold and Exhaust System

This 48.3mm stainless steel elbow is perfect for building an exhaust system, turbo downpipe, exhaust manifold, or wastegate outlet. Indeed, stainless steel has the advantage of a distinctive sound and is very durable. On the other hand, the thin profile of this 90 stainless steel elbow allows for a lighter exhaust system. For your exhaust system, manifold, downpipe, or header to be efficient, it is important to limit the number of bends, obstructions, and reductions, as well as eliminate all leaks. Regarding manifolds for naturally aspirated engines, it is important to have the same length of pipe (between the cylinder head outlet and the point where the pipes converge) on all cylinders. For turbo manifolds, we recommend this 2mm thick elbow: Stainless steel elbow 48.3mm, 2mm thick

We offer all the necessary products for the production of a custom exhaust (pipe, Gasket, flange, gasket, insert, mounting bracket, braid.) : Exhaust Components

Specifications:

• Material: 304L Stainless Steel
• Type: Rolled and Welded
• Outer Diameter: 48.3mm
• Inner Diameter: 45.1mm
• Thickness: 1.6mm
• Radius: 57mm
• Weight: 0.17kg

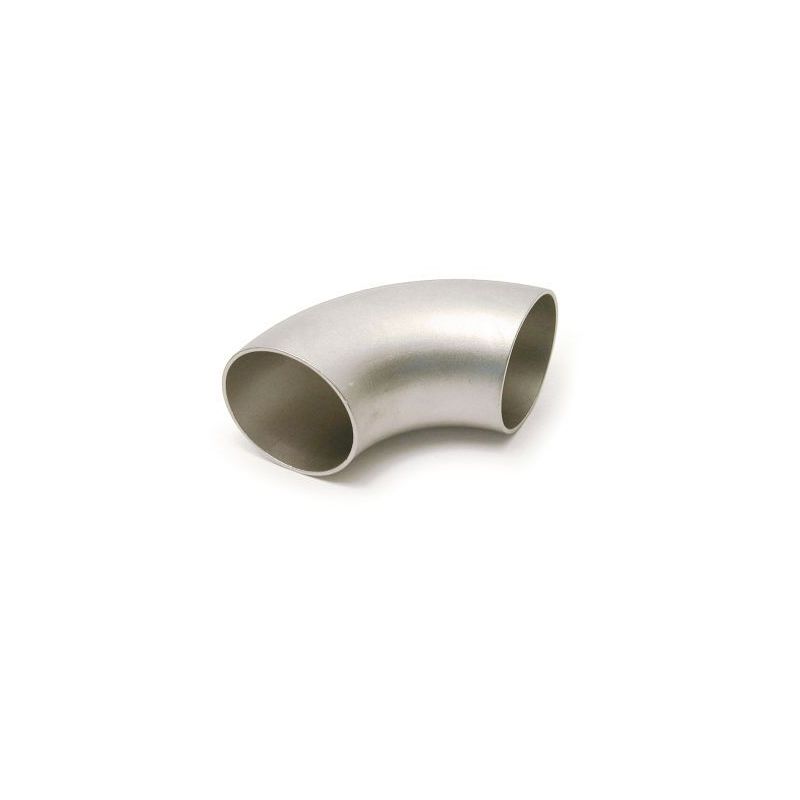

Generic photo
