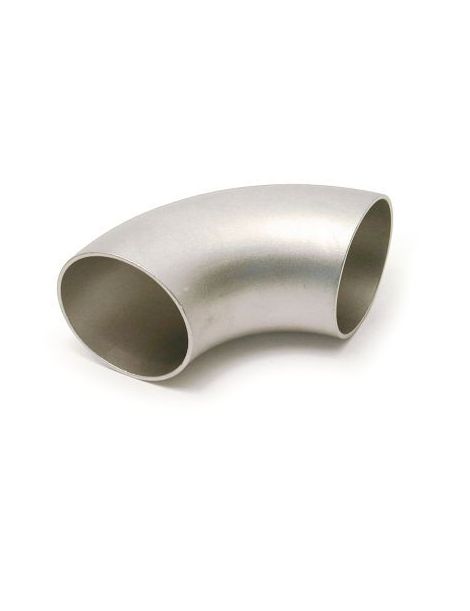

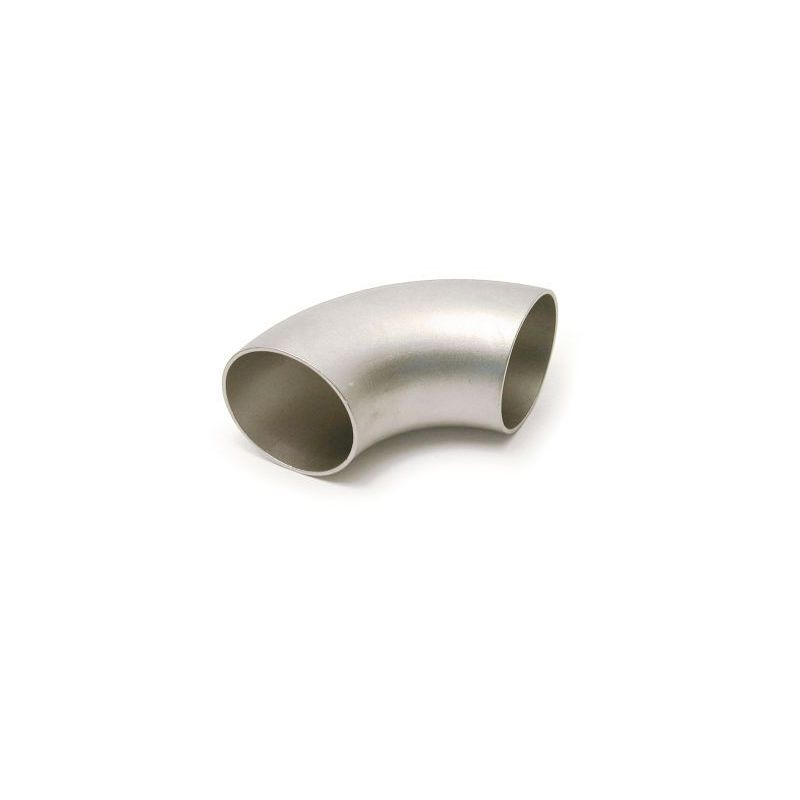

90 3D Stainless Steel Elbow for Manifolds and Exhaust Systems

This exhaust elbow can be used to make a manifold or exhaust system. For turbo manifolds, we recommend 90 stainless steel elbows with a 2mm thickness.

This 90 stainless steel elbow will provide a long lifespan, a great sound, and a lightweight exhaust system/manifold.

For your exhaust system to be efficient, it must be as direct as possible: avoid bends, obstacles, and reducers, and ensure it is perfectly airtight (no leaks).

If it is a collector, be careful not to create too sharp an angle. In the case of a naturally aspirated engine manifold: the distance from the cylinder head outlet to the pipe assembly must be identical from one cylinder to the other.

Custom exhaust systems are not EEC approved and are therefore prohibited from being used on public roads.

Find all the necessary components for manufacturing a custom exhaust here (pipe, reducer, flex pipe, flange, bracket, rubber mount, universal muffler, etc.): Exhaust custom

Characteristics:

• Material: 304L stainless steel
• Type: welded rolled
• External diameter: 42.4mm
• Internal diameter: 39.2mm
• Thickness: 1.6mm
• Radius: 48mm
• Weight: 0.12kg


Generic photo
