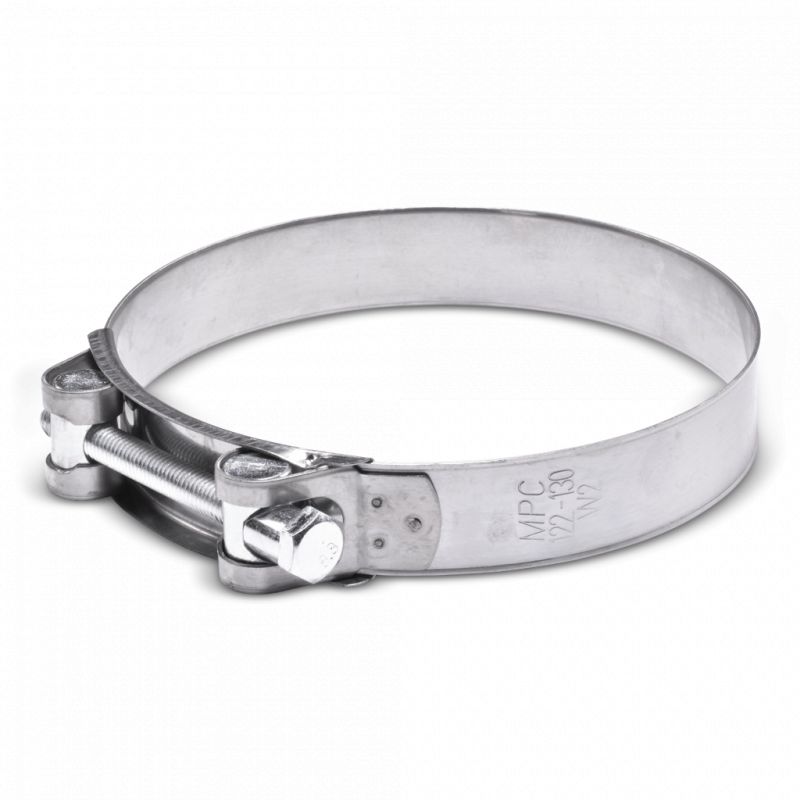

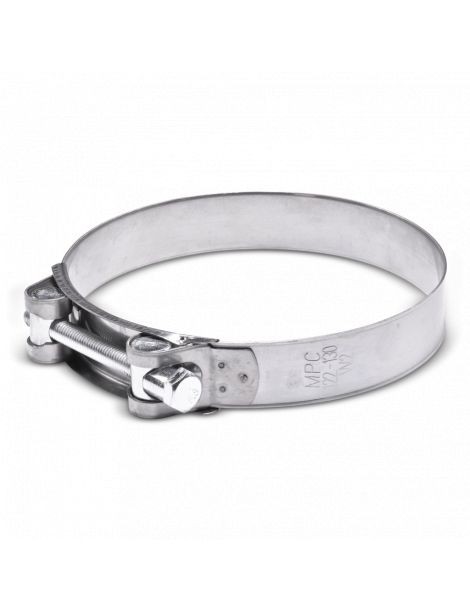

122-130mm - Reinforced collar in AISI 304 stainless steel

Reinforced hose clamp, diameter 122-130mm, in AISI 304 stainless steel

This clamp is suitable for silicone hoses, braided hoses, DASH hoses, original type hoses, and exhausts.

Dimensions:

• d: minimum clamp diameter: 122mm
• D: maximum clamp diameter: 130mm
• B1: collar width: 24mm
• S1: collar thickness: 0.8mm
• L2: screw head width: 13mm
• M: screw diameter: 8mm
• Recommended tightening torque: 18Nm
• Maximum tightening torque: 25Nm style="text-decoration:underline;">Characteristics:
  • 4-point weld connection
  • Tightening by screw
