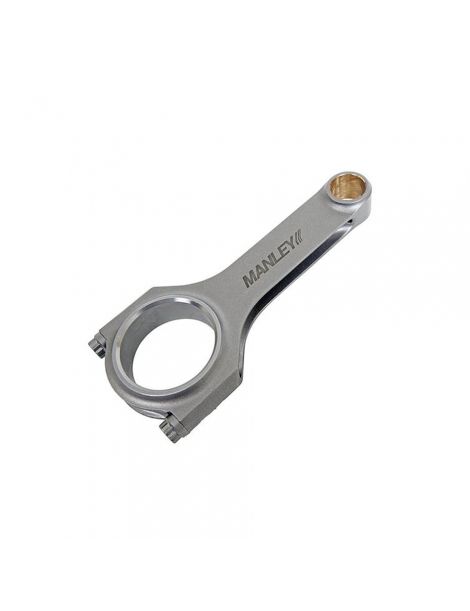

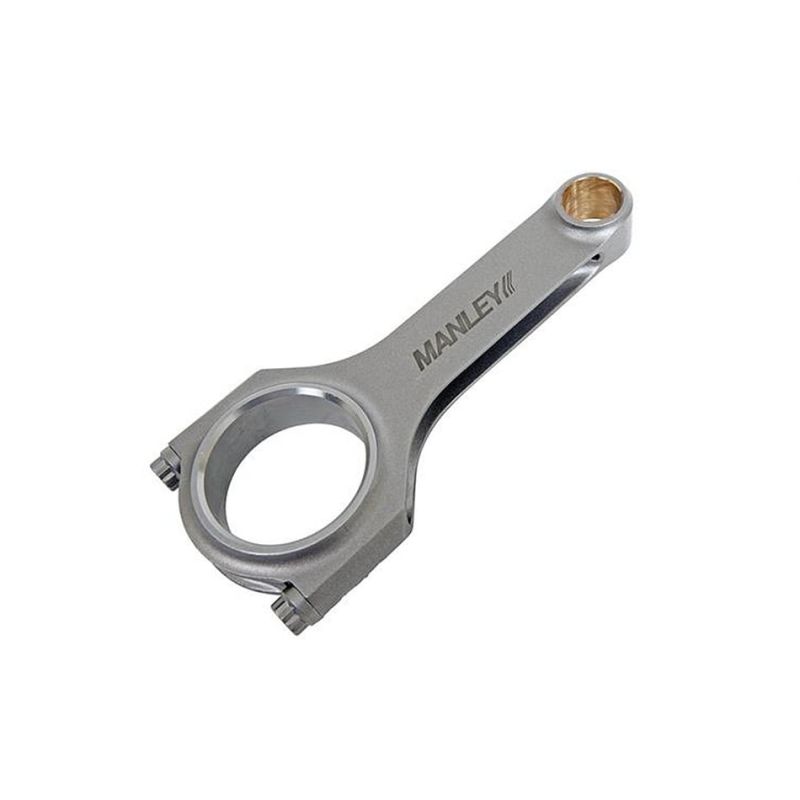

Forged H-shaped connecting rod MANLEY MAZDA 2.3 MZR DISI TURBO 3 MPS

This MANLEY forged connecting rod, part number 14032-1, is specifically designed for modified Mazda Speed __3 and MZR 2.3L DISI Turbo engines. Made from 4340 aerospace-grade forged steel, it offers the best strength-to-weight ratio for significant power increases on turbocharged engines. The H-beam design ensures exceptional rigidity while optimizing weight. Each connecting rod is machined to the strictest tolerances in the MANLEY factory, then heat treated, shot peened and checked by magnetic penetrant testing (magnaflux) to guarantee maximum quality.

Verified technical specifications:

• Center length: 5.927" (150.5mm)
• Connecting rod diameter (big end): 2.166" (55.01mm)
• Connecting rod width: 0.859" (21.82mm)
• Piston pin diameter: 22.5mm (0.886")
• Weight: approximately 610 grams
• ?balancing: +/- 1.5 gram
• Fasteners: ARP

compatible Applications: Mazda 3 MPS / Mazda Speed __3 (2007-2013) with MZR 2.3L DISI Turbo engine, ideal for Drift, Circuit, Rally and TrackDay preparations requiring reinforced connecting rods capable of withstanding high RPMs and turbo pressure increases.

MANLEY Strengths: This This connecting rod is part of MANLEY's H-Beam Series, renowned for offering competition-level quality at an economical price. Machining tolerances, bore finishing, thread detail, and straightness control are treated with the same rigor as on the Sportsmaster and Pro Series ranges. Important note: This is a single-rod connecting rod. For a complete 4-cylinder engine, order 4 connecting rods or opt directly for the complete kit, reference 14032-4.

Available from stock at NSB France or NSB Europe, with fast Fast shipping. Benefit from the best European prices all year round on your forged engine preparation parts.
