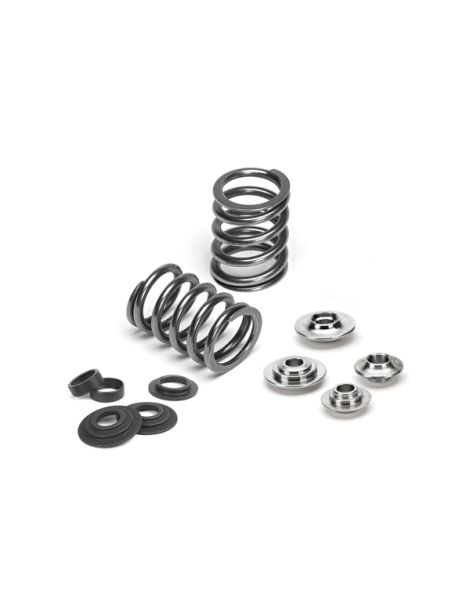

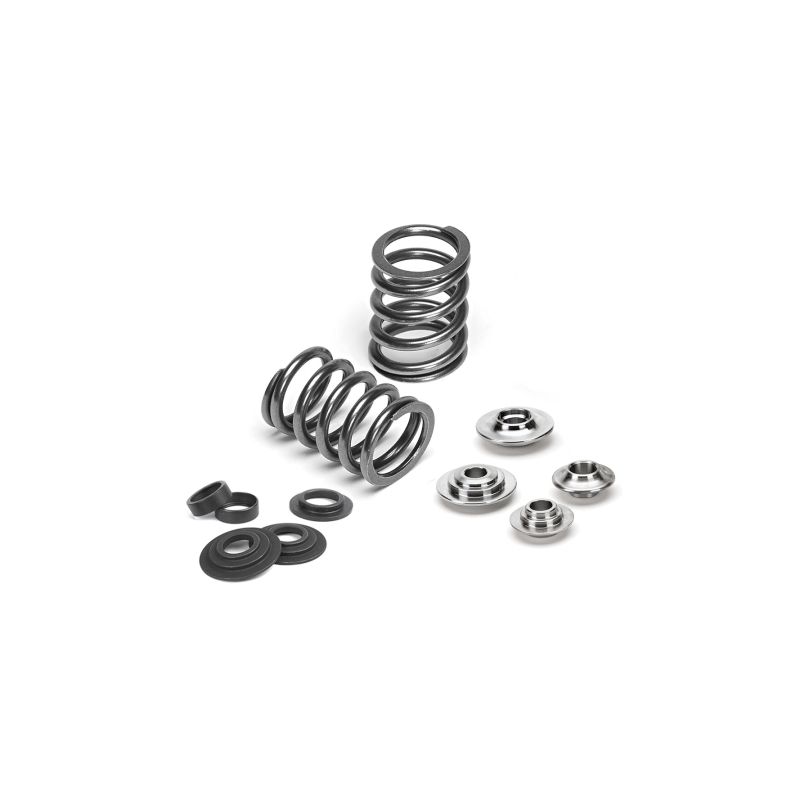

Reinforced valve springs Audi S6 RS6 C7 4.0 TFSI V8 - 32 valves

New product

Reinforced SUPERTECH valve spring kit for Audi 4.0 TFSI V8 engine CGWB CWGD CTGE CTGA CTGB:

  • AUDI S6 C7 4.0 TFSI V8 2012 - 2018
  • AUDI RS6 C7 4.0 TFSI V8 2013 - 2018
  • AUDI S7 C7 4.0 TFSI V8 2012 - 2018
  • AUDI RS7 C7 4.0 TFSI V8 2013 - 2018
  • AUDI S8 D4 4.0 TFSI V8 2012 - 2017

More details

1 101,50 € tax incl.

-20%

1 376,88 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • The SUPERTECH reinforced spring kit consists of 32 single springs SPR-A2416N and 32 titanium retainers RET-A2416-N2.

    Technical specifications

    • Spring type: single
    • Outer diameter: 24.00 mm
    • Inner diameter: 16.50 mm
    • Coil bind: 24.90 mm
    • Rate: 10.50 lbs/mm
    • Seat pressure / installed height intake: 73 lbs @ 37.40mm
    • Seat pressure / installed height exhaust: 85 lbs @ 36.00mm
    • Pressure / 10mm lift intake: 178 lbs
    • Pressure / 10mm lift exhaust: 190 lbs
    • Max lift intake: 12.50mm
    • Max lift exhaust: 11.00mm
    • Reference: SPRK-A2416N2-V8

    Supertech Valve Springs are made from high quality chrome silicon vanadium steel alloy. This alloy has the advantage of offering superior performance and reliability, especially at high speeds, and has better structural memory. Supertech Reinforced Valve Springs are computer designed to ensure harmonics remain under control and stress levels remain within material fatigue diagrams.

    The Supertech cups are made of titanium alloy and machined by numerical control in order to obtain the best fit.
