Mechanical tappets AUDI S2 S4 AAN ABY

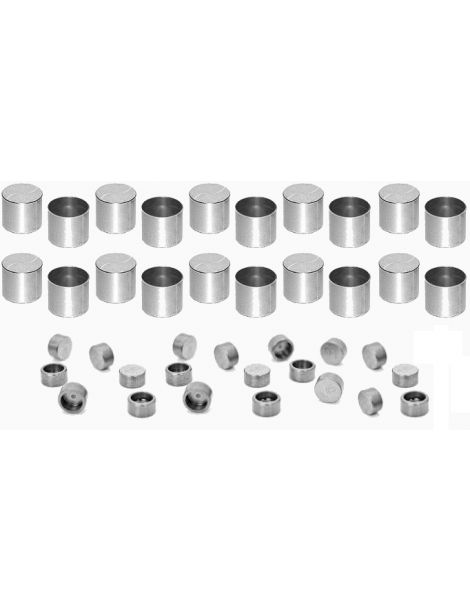

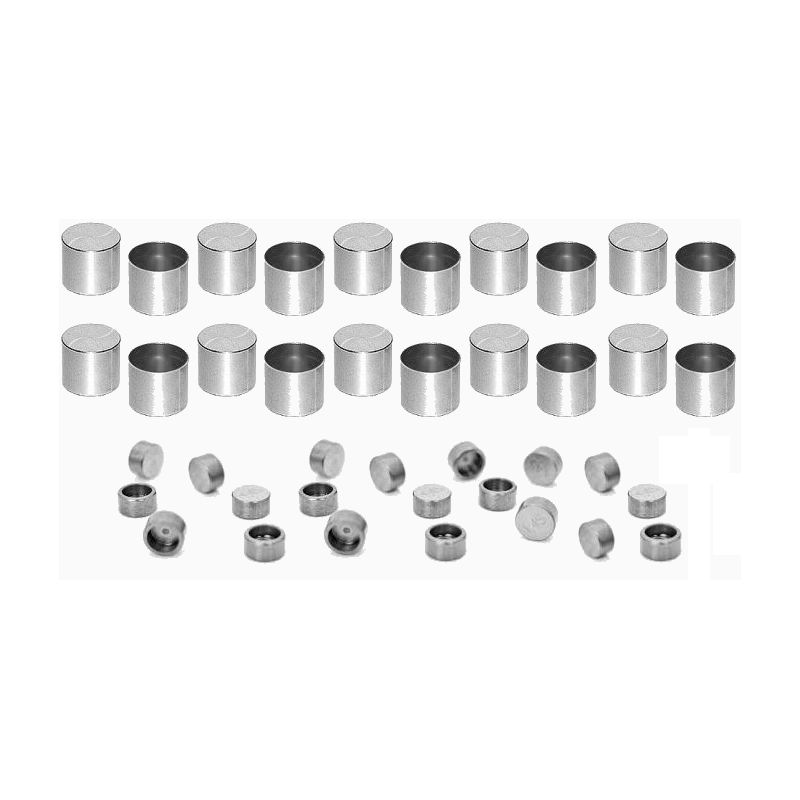

This mechanical tappet kit for AUDI S2 and S4 is composed of 20 CATCAMS mechanical tappets CC005 and 20 pads CATCAMS TS102.

After placing your order, we will send you an e-mail to find out the thickness of the pads desired.

CATCAMS CC005 mechanical tappets:

• External diameter: 34.97mm
• Internal diameter: 33.00mm
• Diameter of contact surface with the pad: 6.90mm
• Total external height: 26.30mm
• Inner height (between AAC contact/pusher and pusher contact/pad): 14.70mm
• Thickness (between AAC contact/pusher and the hollow of the pusher): 3.1mm
• Weight: 46grs

CATCAMS TS102 pellets for valve stem diameter 7mm:

• Thickness: according to your needs
• Outer diameter: 10mm
