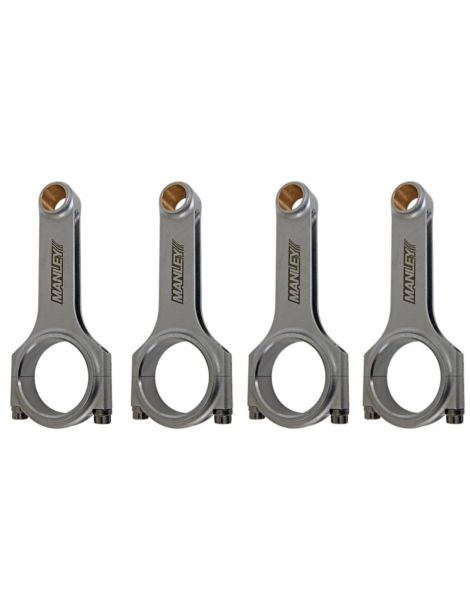

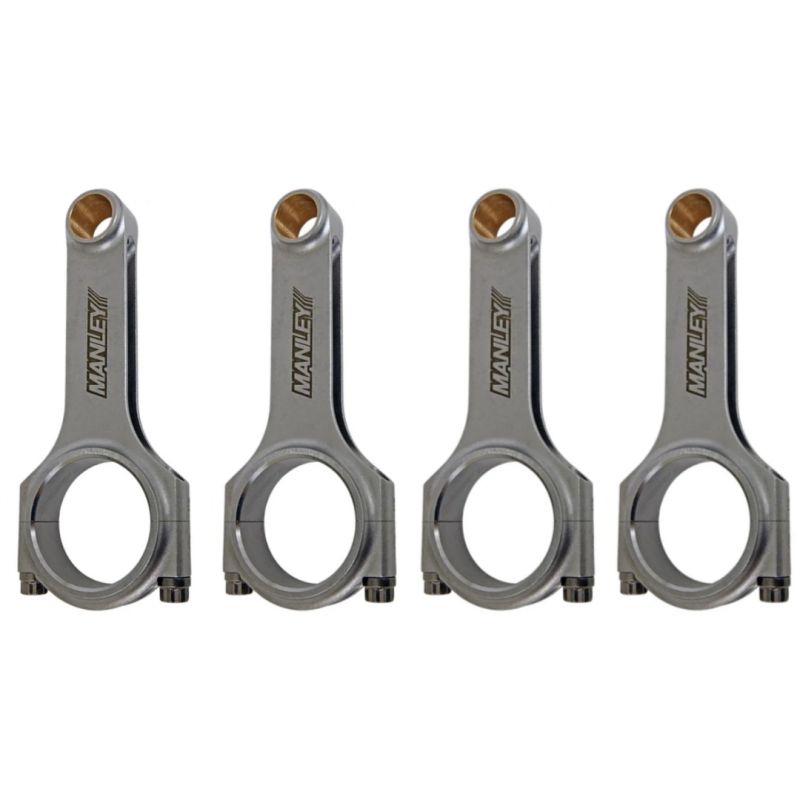

HONDA 1.6 D16Y7 D16Y8 D16Z forged connecting rods

Connecting rods forged kits MANLEY for motor HONDA 1.6 D16Y7 are composed of 4 Connecting rods and delivered with the Rod bolts ARP.

Find below (click on the image) the forged pistons and bearings of tri-metal Connecting rods for engines HONDA 1.6D16Y7:

Original technical characteristics of the engine:

• Pin: 137.01mm
• Head diameter: 48.01mm
• Piston pin / Gudgeon pin diameter: 19.00mm

Technical characteristics screw ARP:

• ARP2000: up to 150HP per cylinder or 8500rpm
• ARP L19: up to 200HP per cylinder or 10000rpm
• ARP Custom Age CA625+: up to 250HP per cylinder or beyond 10,000rpm

Technical characteristics

• Range: Manley
• Connecting rod type: H
• Rod bolts: ARP 2000
• Screw thread: 3/8"
• Weight: 525gr
• Steel type: 4340
• References: 14013-4

Created in 1966, the company Manley Performance Products offers a wide range of internal engine parts for performance, such as forged pistons, forged connecting rods and even forged crankshafts. Whether H or I, the Manley forged Connecting rods are made from 4340 aircraft grade steel and are delivered with ARP Rod bolts.

compatible:

• CIVIC VI 1.6 (EK1) 107CV D16Y7
• CRX III 1.6 i (EG1) 107CV D16Y7
• CIVIC VI 1.6 (EJ8) 118CV D16Y8
• CIVIC VI 1.6 i Vtec (EM1) 125CV D16Y8
• CIVIC VI 1.6 i Vtec (EJ8) 129CV D16Y8
• CRX III 1.6 Si (EH6) 129CV D16Y8
• CIVIC IV 1.6 i 16V (ED4) 110CV D16Z2
• CIVIC V 1.6 (EG6) 107CV D16Z2
• CIVIC IV 1.6 (ED) 124CV D16Z5
• CRX II 1.6 i 16V (ED9) 124CV D16Z5
• CIVIC V 1.6 (EG5) 125CV D16Z6
• CRX III 1.6 i (EG1) 107CV D16Y7
