Reinforced Valve Springs HONDA 1.6 B16A B16A1 B16A2 B16A3 1.7 B17A

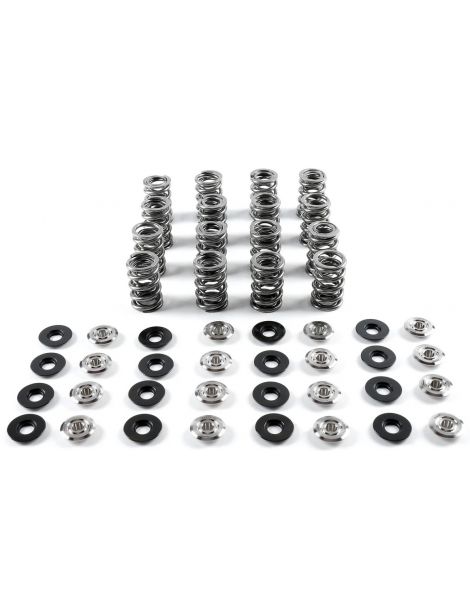

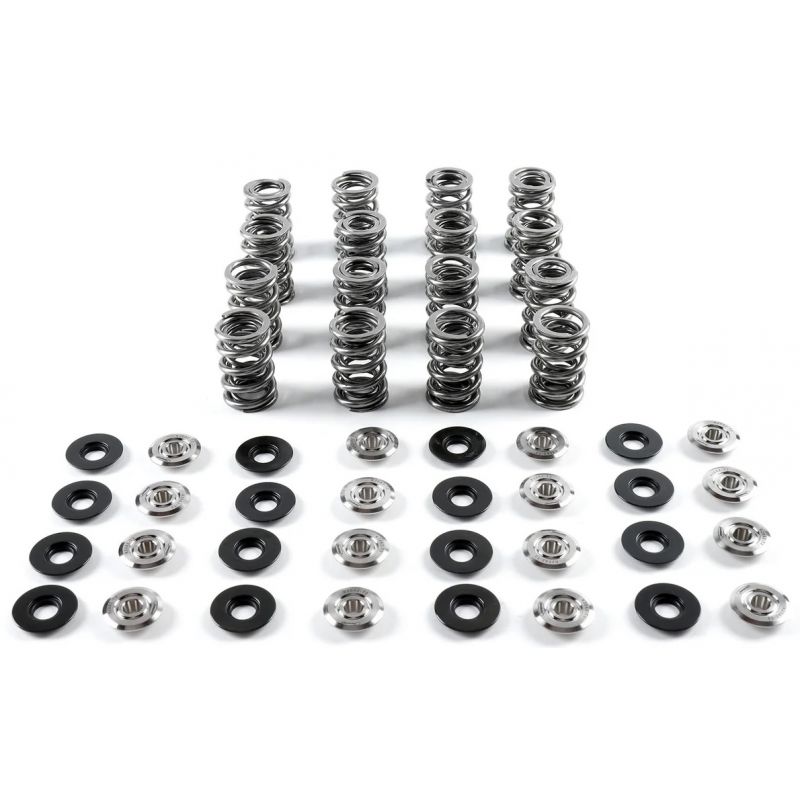

The reinforced springs kitSUPERTECHis composed of16 double springs with cups forHONDA 1.6 B16A B16A1 B16A2 B16A3 1.7 B17A

List of compatible vehicles:

• HONDA CIVIC IV (ED,EF) 1.6 16V 107hp D16A1,
• HONDA CIVIC IV 1.6 i 16V Vtec (EE9) 150hp B16A1
• HONDA CIVIC V 1.6 VTi 16V (EG6) 160hp B16A2
• HONDA CIVIC IV 1.6 i 16V (ED4) 110hp D16A6
• HONDA CIVIC VI 1.6 VTi (EK4) 160hp B16A2
• HONDA CRX II 1.6 i 16V Vtec (EE8) 150hp B16A1
• HONDA CRX III 1.6 i VTi (EG2) 160hp B16A2 B16A3
• HONDA Integra 1.6 Vtec (DA6) 170hp B16A
• Acura Integra GS-R 1.7 (DA9) 160hp B17A1

Technical characteristics

Seat pressure: 100lbsat 33.5mm
Opening pressure: 222lbsat 10mm
Coil connection: 20.00 mm
External diameter of the outer spring: 30.20 mm
External diameter of the internal spring: 22.20 mm
Internal diameter of the inner spring: 16.80 mm
Rate: 12.2
Spring kit: SPR-H200DR
Quantity of Springs in the kit: 16
Restraint device: RET-K20A2/T2
Internal diameter of the external spring: 22.20 mm
Quantity of Springs: 16

SPRK-H100DR:Max lift: 15.00mm

Seat pressure: 85lbsat 33.5
Opening pressure: 210lbsat 10
Coil connection: 18.50 mm
External diameter of the outer spring: 30.20 mm
External diameter of the internal spring: 22.20 mm
Internal diameter of the inner spring: 16.80 mm
Rate: 12.5
Spring kit: SPR-H100DR
Quantity of Springs in the kit: 16
Restraint device: RET-K20A2/T2
Internal diameter of the external spring: 22.20 mm
Quantity of restraints: 16

Supertech Valve Springs are made from high quality chrome silicon vanadium steel alloy. This alloy has the advantage of offering superior performance and reliability, especially at high revs, and has better structural memory. Supertech Reinforced Valve Springs are computer designed to ensure harmonics remain under control and stress levels remain within material fatigue diagrams.

The Supertech cups are made of titanium alloy and machined by numerical control in order to obtain the best fit.

Compatibility:
