2.5L 20v - DAZA DNWA
Manufacturers
2.5L 20v - DAZA DNWA
Warning: Last items in stock!
New product

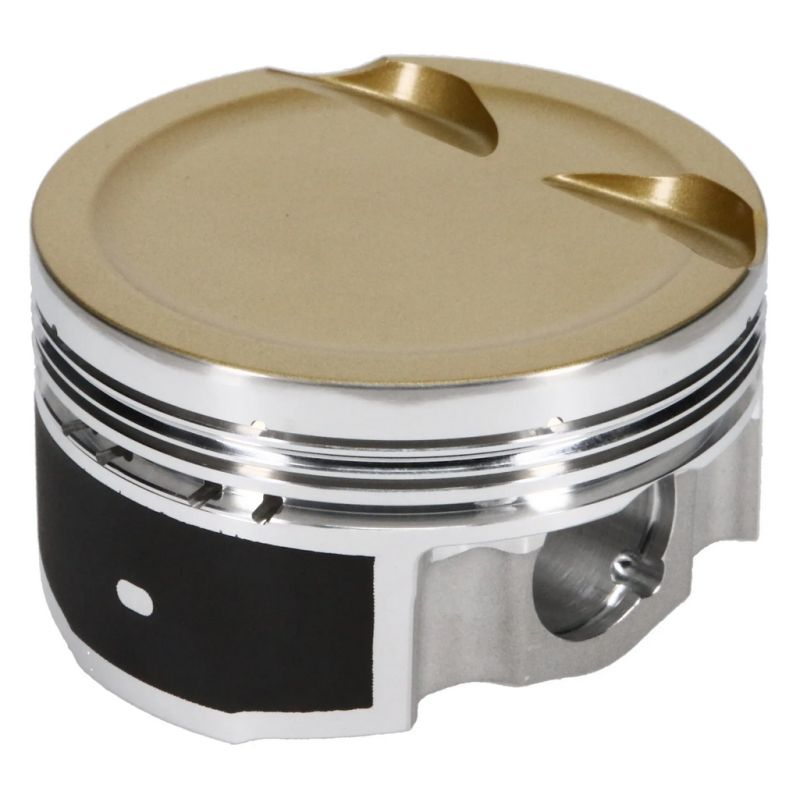

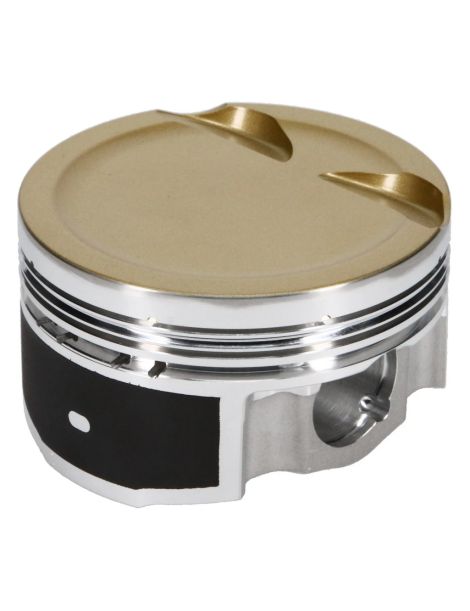

Forged pistons 2.5 TFSI EA855 EVODAZA DNWA DNWB DNWC DXHA: Rings included, Bores OEM/oversize, Pin OEM 23 mm, CH 29.60 mm. COMPatibilities Audi RS3/TT RS/RS Q3 and Cupra Formentor VZ5.
Specifications of the forged pistons offered by NSB Concept for Audi 2.5 L 20 V EA855 EVO (RS3 / TT RS / RS Q3 / Formentor VZ5) :
| Reference | OEM Bore 82,50 mm | OEM CR 10,0 :1 | OEM Pin 23 mm | Height OEM Pin 29,60 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-380156 | 82.5 | 9.5:1 | 23 | 29.4 | JE Ultra Series | NC | NC | NC | -7.5 | NC | NC |
Compatibility (engine codes):
Original vehicles equipped with the 2.5 TFSI EA855 EVO :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | RS Q3 F3 | DNWA/DNWC | 400 hp | 2019 – present |
| Audi | RS3 8V (FL) Sportback/Sedan | DAZA | 400 hp | 2017 – 2018 |
| Audi | RS3 8V (FL) Sportback/Sedan | DNWA | 400 hp | 2019 – 2020 |
| Audi | RS3 8Y Sportback/Sedan | DNWB/DNWC/DXHA | 400 hp | 2021 – present |
| Audi | TT RS 8S | DAZA | 400 hp | 2016 – 2018 |
| Audi | TT RS 8S | DNWA | 400 hp | 2019 – 2023 |
| Cupra | Formentor VZ5 | DNWB/DNWC | 390 hp | 2021 – present |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
Forged pistons 2.5 TFSI EA855 EVO : rings included, bores OEM/oversize, pin OEM 23 mm, CH 29,60 mm. Compatibility Audi RS3/TT RS/RS Q3 and Cupra Formentor VZ5.
Forged pistons EA855 EVO 2.5 TFSI (RS3/TT RS/RS Q3) | NSB Concept
Kit forged pistons 2.5 TFSI EA855 EVO : 82,5 mm, pin 23 mm, CH 29,60 mm. Compatibility Audi RS3 8V/8Y, TT RS 8S, RS Q3 F3, Formentor VZ5.
EA855 EVO, 2.5 TFSI, DAZA, DNWA, DNWB, DNWC, DXHA, RS3, TT RS, RS Q3, Formentor VZ5, forged pistons, 82.5 mm, pin 23 mm, NSB Concept
