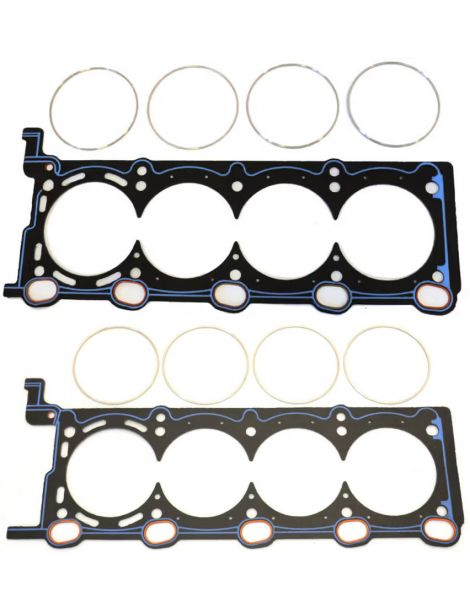

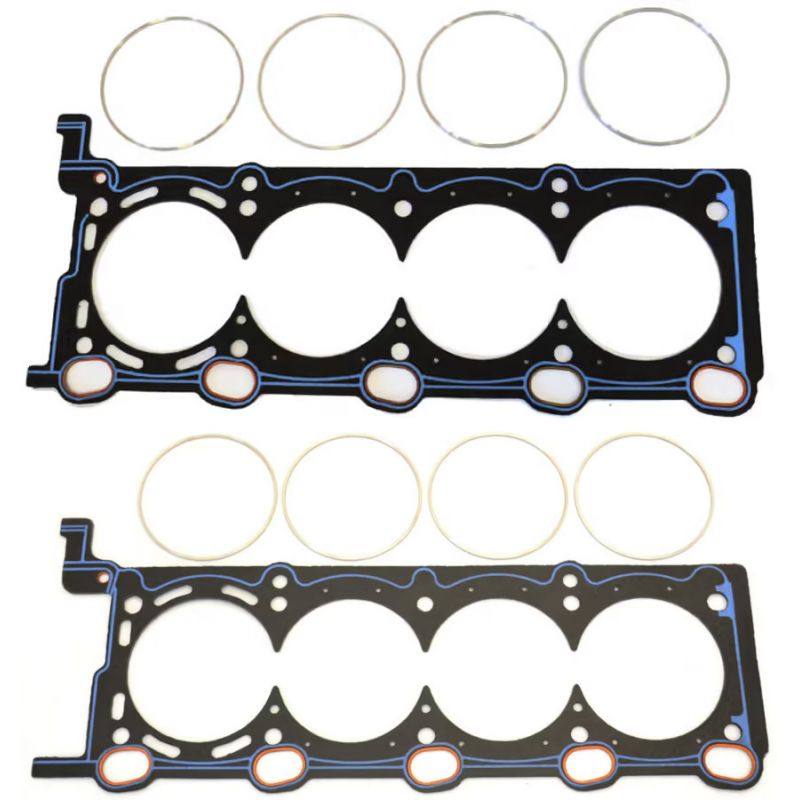

Gasket Cylinder head reinforced BMW 540i E39 M62B44

We offer you here a pair of reinforced Cylinder head Gaskets for M62B44 engine from BrandATHENA the technical characteristics of which you will find below.

Technical characteristics of the Original Gasket

• Motor bore: 92mm
• Thickness: 1.74mm

Technical characteristics

• Motor bore: up to 93.6mm
• Thickness(es) to choose from: 2.00mm
• Gasket Type: O-Ring

Designed and manufactured in Italy, the reinforced Cylinder head Gaskets from the Brand Athena are available in two forms:

• MLS:these Gasketsare MADE UP of several sheets of stainless steel superposed and riveted together. The stainless steel sheets are laser cut for increased precision and receive an elastomer-based surface treatment (NBR or FKM). In order to obtain optimal sealing, the contours of the cylinders and water and oil passages are stamped/embossed. Forthe most extreme Applications, reinforcement at the level of the cylinders is added.
• O-Ring:these Gasketsconsist of a steel sheet covered with asbestos-free aramid fiber and an AISI 304 stainless steel ring(at the cylinder level). A bead of silicone applied to critical points (water and oil passages) ensures maximum sealing of the Head Gasket. This type of Gasket is mandatory for heavily supercharged engines.
