1.3L 8v - TU2J2
Manufacturers
1.3L 8v - TU2J2
Warning: Last items in stock!
New product

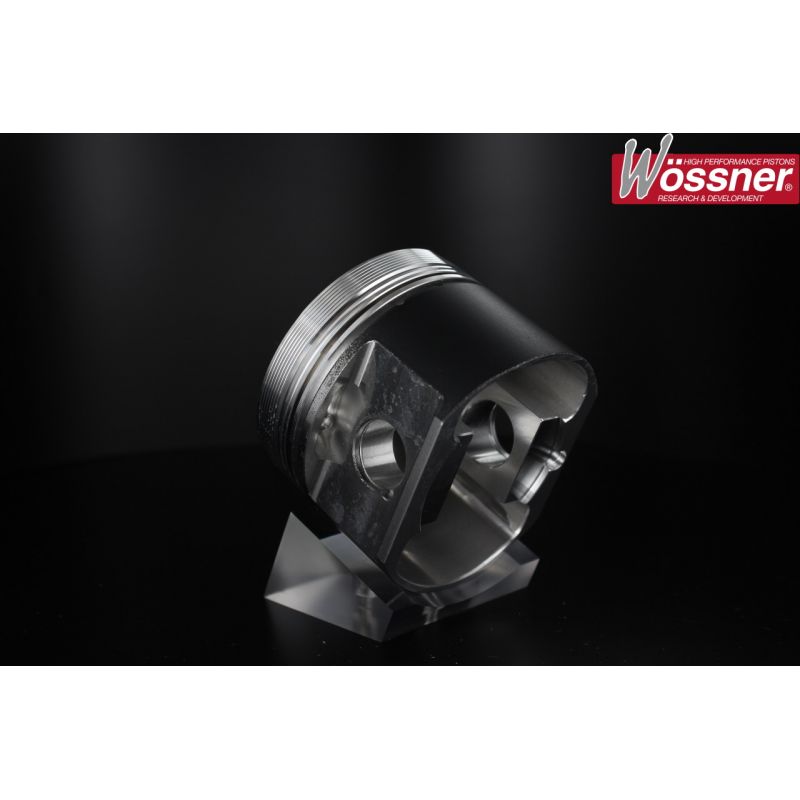

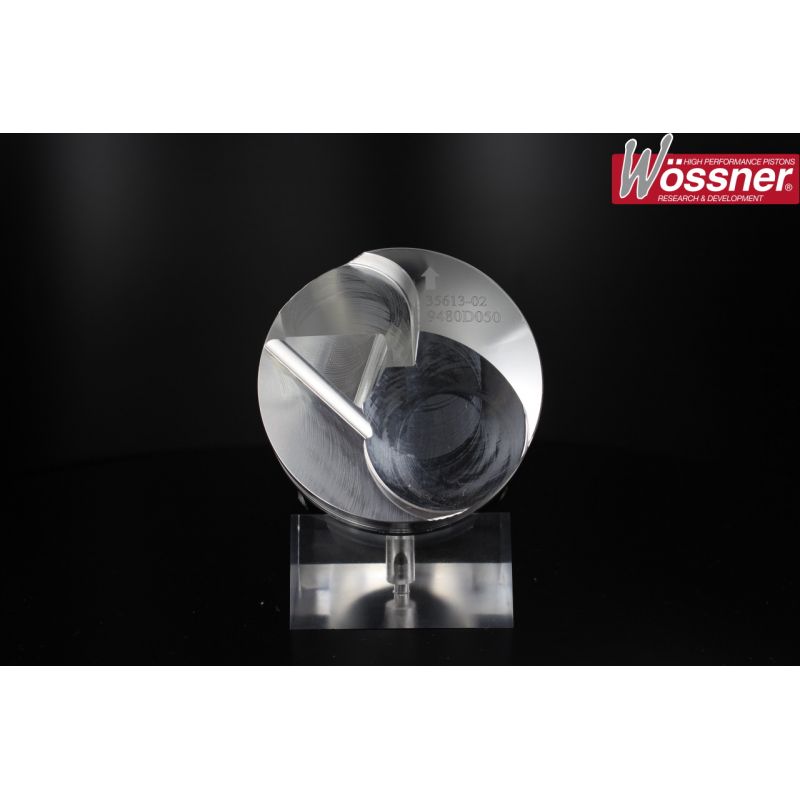

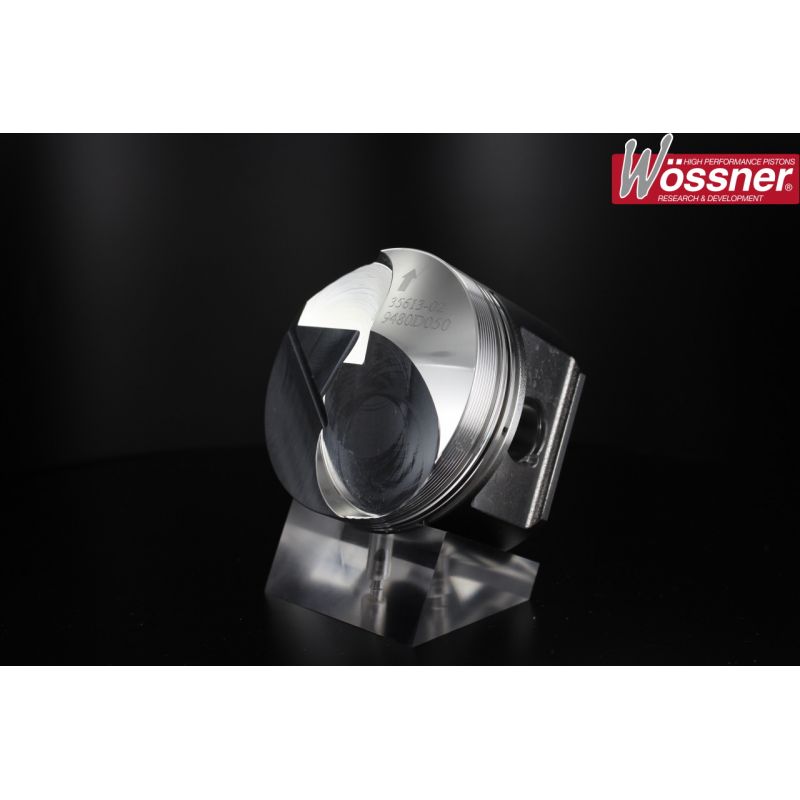

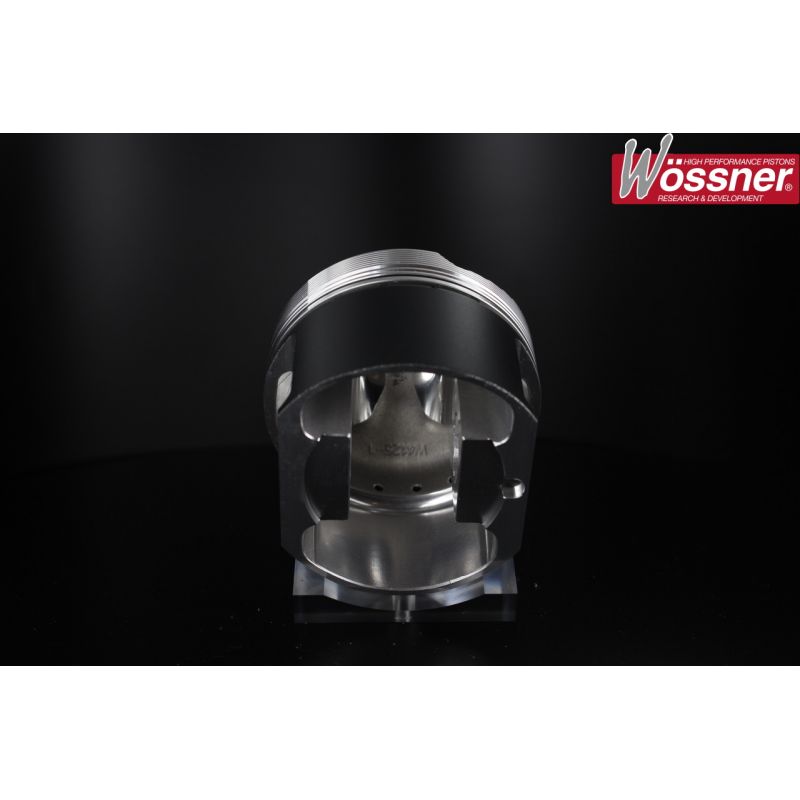

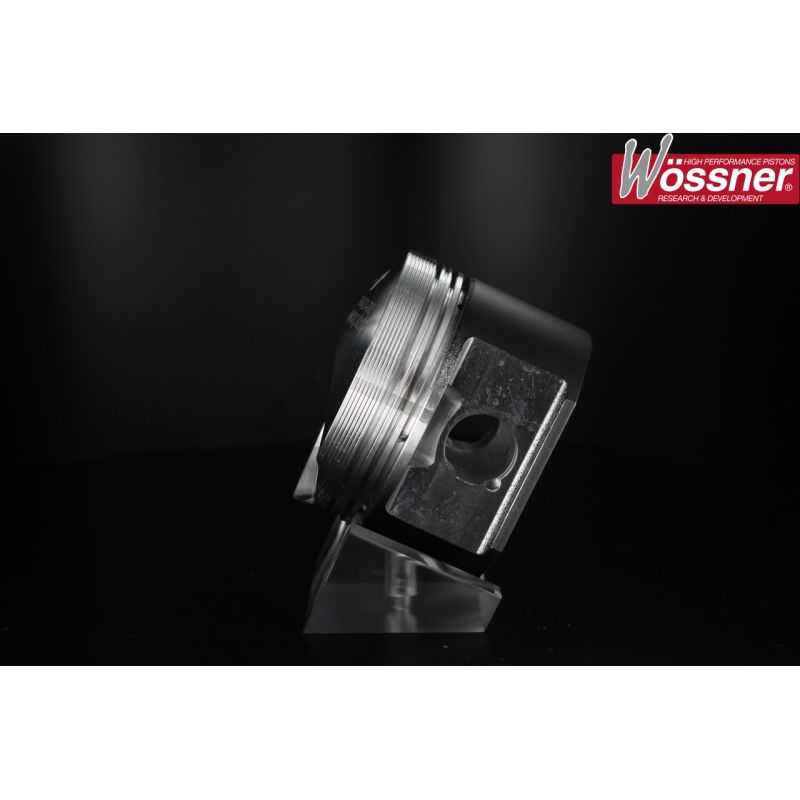

Forged pistons TU2J2 1.3L 8v (Peugeot 106 Rallye S1 1993.1996) bore 75.76 mm, axle 18 mm, CH 37 mm, RV 10.6:1 to 11.8:1. Ref. OEM Peugeot (liners+pistons kit) 0111X8APR.
Specifications of the forged pistons offered by NSB Concept for 1.3 L 8 v TU2J2 (Peugeot/Citroën) :
| Reference | Bore (mm)OEM 75 | CROEM 10,2 :1 | pin (mm)OEM 18 | Height pin (mm)OEM 37 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9480DA | 75 | 10,6 :1 | 18 | 37 | Wossner | NC | NC | Round | 4,35 | NC | 750XDS |
| K9107DA | 75 | 11,5 :1 | 18 | 37 | Wossner | NC | NC | Round | 7,1 | NC | 750XDS |
| K9480D050 | 75,5 | 10,6 :1 | 18 | 37 | Wossner | NC | NC | Round | 4,35 | NC | 755XDS |
| K9107D050 | 75,5 | 11,6 :1 | 18 | 37 | Wossner | NC | NC | Round | 7,1 | NC | 755XDS |
| K9107D100 | 76 | 11,8 :1 | 18 | 37 | Wossner | NC | NC | Round | 7,1 | NC | 760XDS |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Peugeot | 106 Rallye (Phase 1) | S1 | TU2J2 (MFZ) | 98 | 1993 – 1996 |
Manufacturer piston references (officielle) :
| Brand | Model | Engine code | Years | Ref. OEM piston |
|---|---|---|---|---|
| Peugeot | 106 Rallye (Phase 1) | TU2J2 (MFZ) | 1993 – 1996 | 0111X8APR – Kit chemises + pistons Ø75 (OEM) |
Warning : Before any installation, please imperatively check the integrity and compliance of each component of the piston kit as well as the compliance of the assembly in the engine; any possible warranty is strictly limited to the piston kit parts only.
