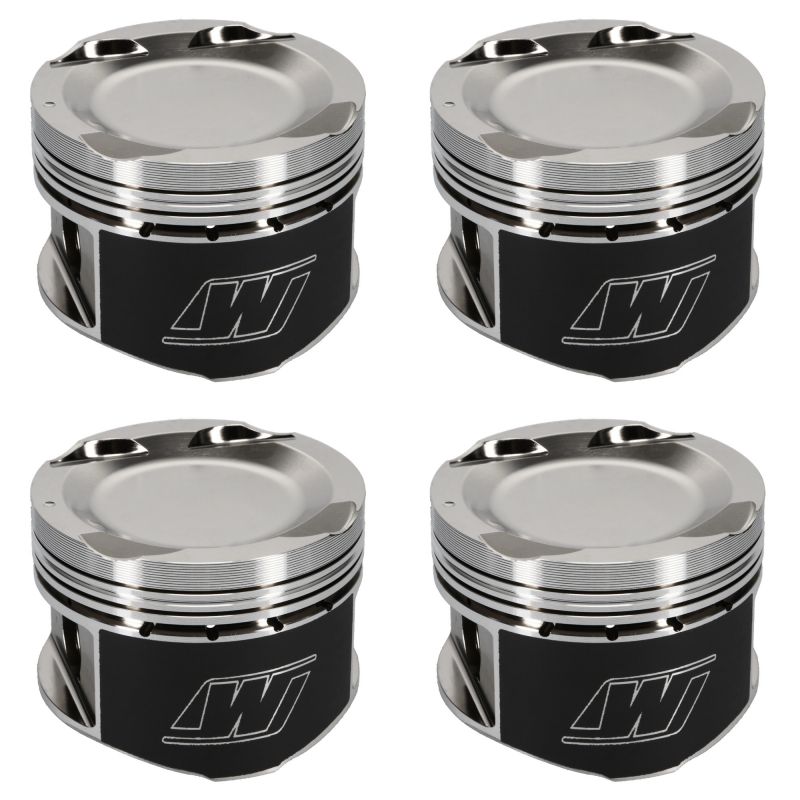

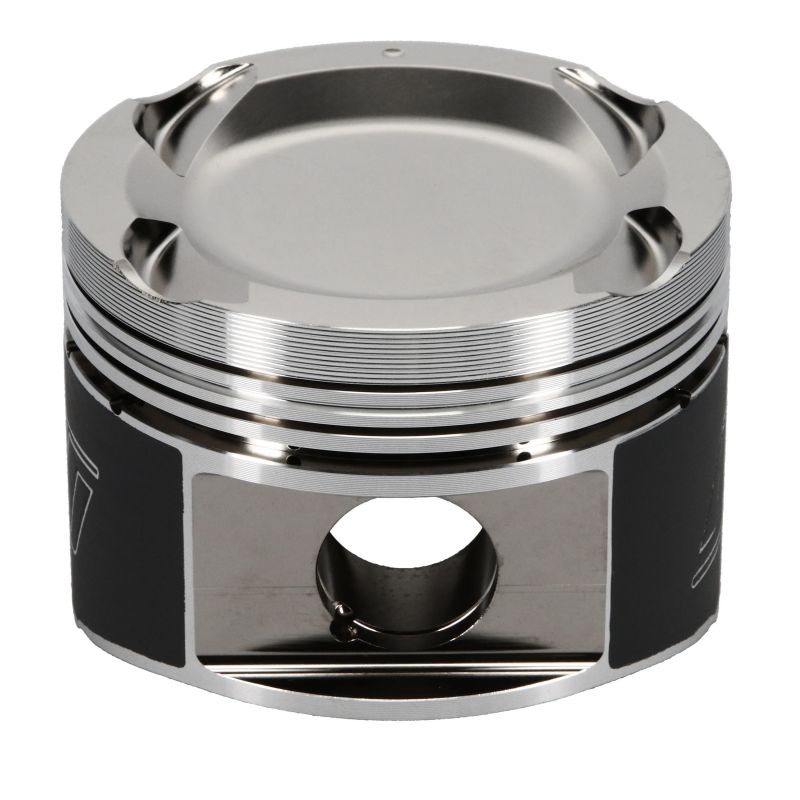

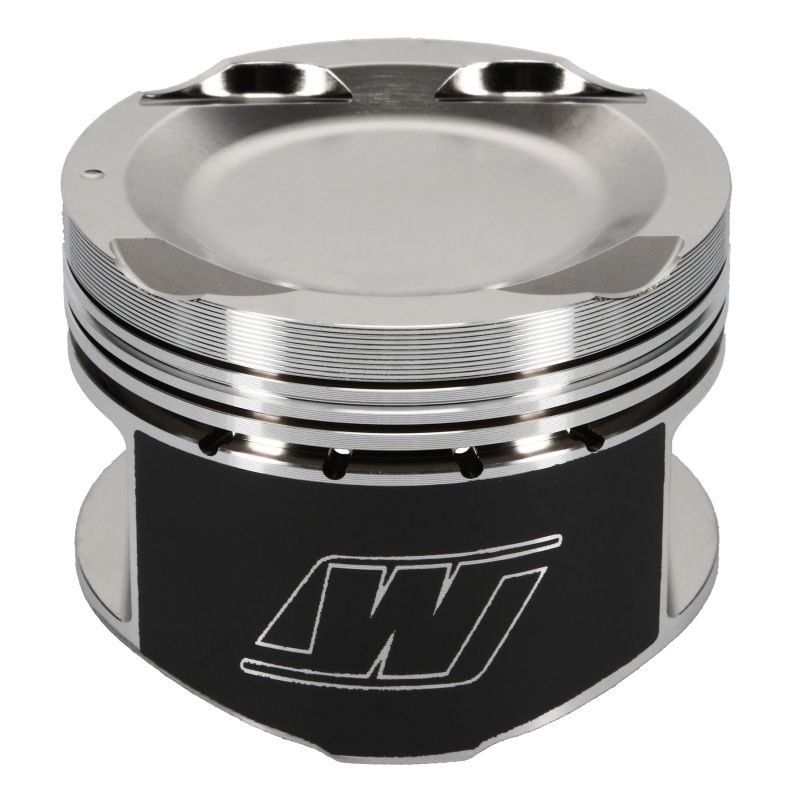

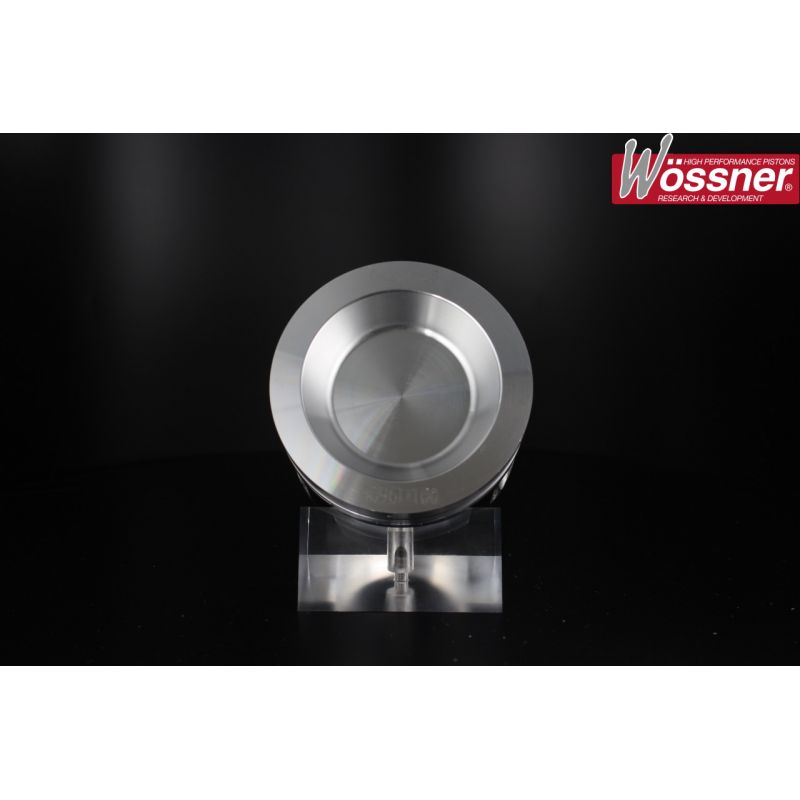

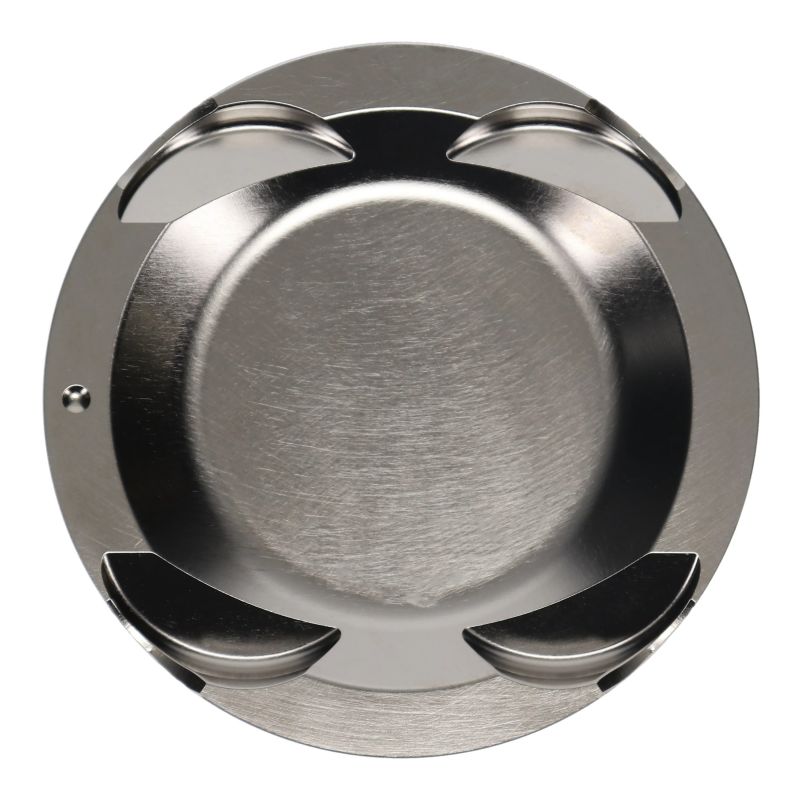

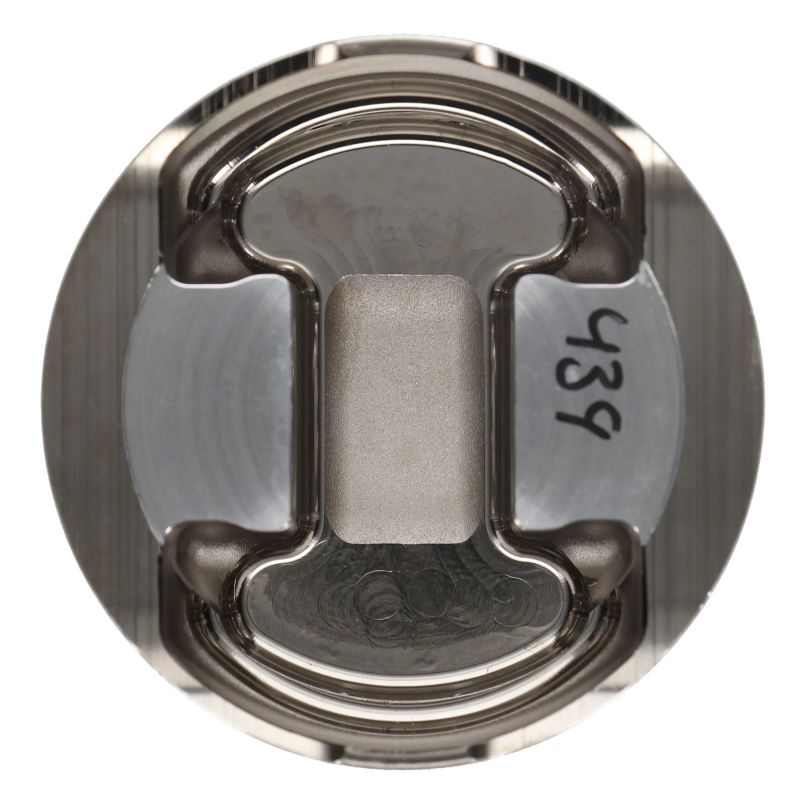

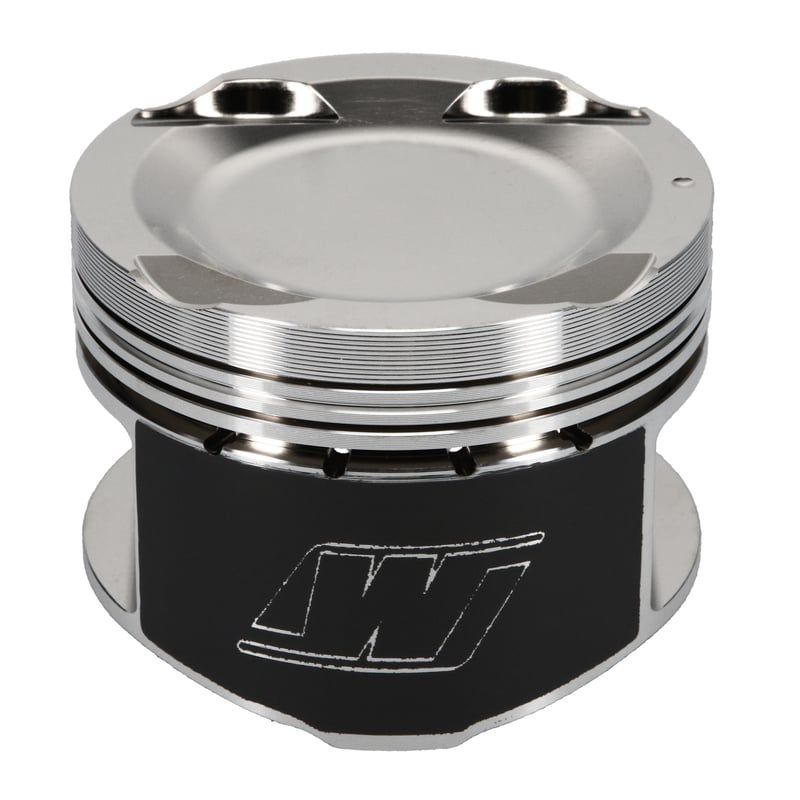

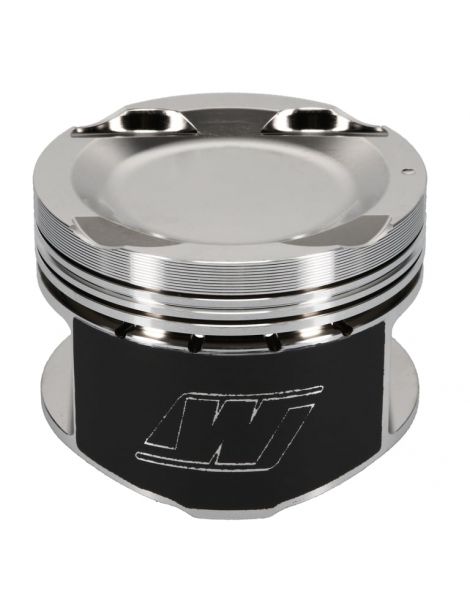

Forged pistons for VW 1.3L 8v G40 (PY): Bores 75 77 mm, Volume ratio 8.0:1/12.5:1 according to ref., Pin 20 mm, Dome according to ref., Rings included. Polo G40 Compatibilities.
Characteristics of the forged pistons offered by NSB Concept for Volkswagen 1.3 L 8 V G40 (PY):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE197M75 | 75.00 | 8:1 | 20 | 40.17 | Wiseco | Skirt | 2618 | N/A | -27.0 | N/A | 7500XX |
| K9096DA | 75.00 | 8:1 | 20 | 40.0 | Wossner | N/A | N/A | Round | 0.0 | N/A | 750XPZ |
| WKE195M75 | 75.00 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7500XX |
| WKE197M755 | 75.50 | 8:1 | 20 | 40.17 | Wiseco | Skirt | 2618 | N/A | -27.0 | N/A | 7550XX |
| K9096D050 | 75.50 | 8.1:1 | 20 | 40.0 | Wossner | N/A | N/A | Round | 0.0 | N/A | 755XPZ |
| WKE195M755 | 75.50 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7550XX |
| WKE197M76 | 76.00 | 8:1 | 20 | 40.17 | Wiseco | Skirt | 2618 | N/A | -27.0 | N/A | 7600XX |
| K9096D100 | 76.00 | 8.2:1 | 20 | 40.0 | Wossner | N/A | N/A | Round | 0.0 | N/A | 760XPZ |
| WKE297M76 | 76.00 | 8.5:1 | N/A | N/A | Wiseco | Skirt | N/A | N/A | N/A | N/A | N/A |
| WKE195M76 | 76.00 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7600XX |
| WKE197M7625 | 76.25 | 8:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -27.0 | N/A | 7625XX |
| WKE195M7625 | 76.25 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7625XX |
| WKE197M765 | 76.50 | 8:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -27.0 | N/A | 7650XX |
| K9096D150 | 76.50 | 8.3:1 | 20 | 40.0 | Wossner | N/A | N/A | Round | 0.0 | N/A | 765XPZ |
| WKE297M765 | 76.50 | 8.5:1 | N/A | N/A | Wiseco | Skirt | N/A | N/A | N/A | N/A | N/A |
| WKE195M765 | 76.50 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7650XX |
| WKE197M77 | 77.00 | 8:1 | 20 | 40.17 | Wiseco | Skirt | 2618 | N/A | -27.0 | N/A | 7700XX |
| K9096D200 | 77.00 | 8.4:1 | 20 | 40.0 | Wossner | N/A | N/A | Round | 0.0 | N/A | 770XPZ |
| WKE195M77 | 77.00 | 12.5:1 | 20 | 40.17 | Wiseco | Skirt | N/A | N/A | -10.0 | N/A | 7700XX |
Compatibilities (engine codes):
PY 1.3 G40 (1272 cm3), 85 kW (115 hp).
MM 1.3 G40 (1272 cm3), 85 kW (115 hp).
Original vehicles equipped with the 1.3 G40:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Volkswagen | Polo Coupe GT G40 (86C) | PY | 115 hp | 1987 1990 |
| Volkswagen | Polo G40 (2F) | PY | 113 hp | 1991 1994 |
Piston manufacturer references (OEM):
Volkswagen Polo Coupe GT G40 (86C, 1987.1990)
: 030 107 065 AG (complete piston, STD 75.00 mm).
Volkswagen Polo G40 (2F, 1991.1994)
: 030 107 065 AG (complete piston, STD 75.00 mm).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
Forged pistons for VW 1.3L 8v G40 (PY): bores 75.77 mm, RV 8.0:1/12.5:1 according to ref., axle 20 mm, dome according to ref., segments included. Polo G40 compatibility.
Forged pistons VW 1.3 G40 (PY) 75.77 mm
VW 1.3 G40 (PY) pistons 75 to 77 mm, RV 8.0:1/12.5:1, axis 20 mm, dome according to reference, segments included. Polo G40.
Volkswagen,Polo G40,PY,MM,1.3,8v,forged pistons,Wiseco,Wossner,75mm,76mm,77mm,8.0: 1.20mm
