CATCAMS mechanical cam followers VW Golf 3 VR6 2.8 AAA

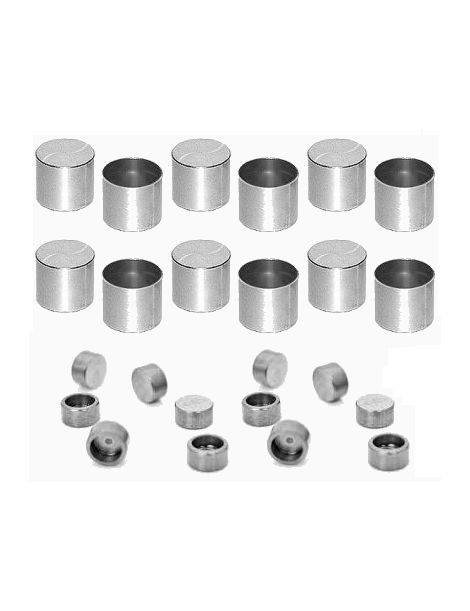

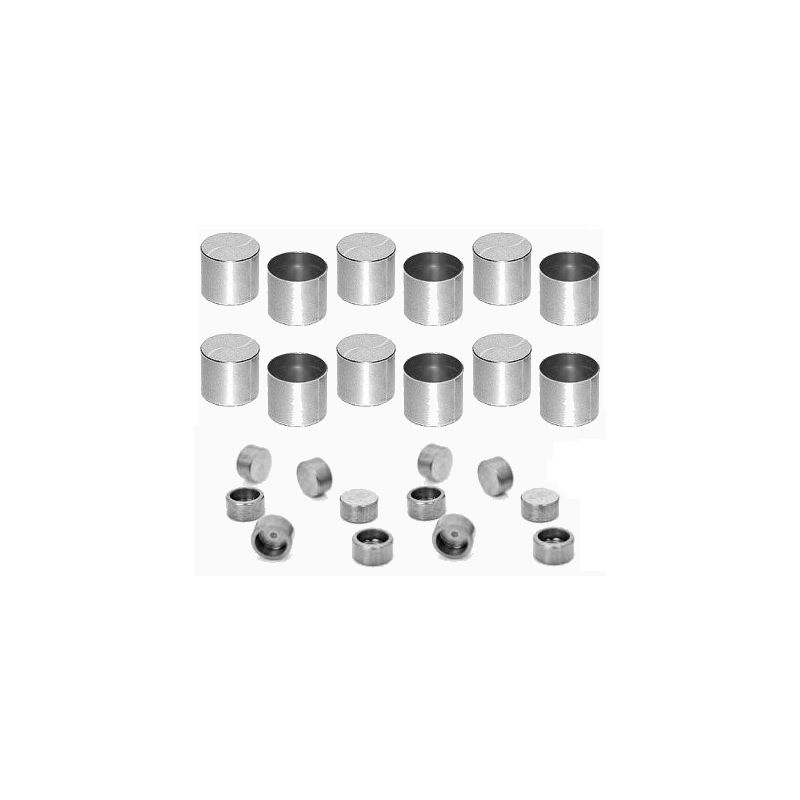

This mechanical cam follower kit for the VAG VR6 AAA engine consists of 12 mechanical cam followers CATCAMS CC005 and 12 shims CATCAMS TS102.

Once your order has been placed, we will email you to confirm the shim thicknesses you require.

CATCAMS CC005 mechanical cam followers :

• Outside diameter: 34.97mm
• Inside diameter: 33.00mm
• Contact face diameter with the shim: 6.90mm
• Overall outside height: 26.30mm
• Inside height (between camshaft/follower contact and follower/shim contact): 14.70mm
• Thickness (between camshaft/follower contact and the recess of the follower): 3.1mm
• Weight: 46g

CATCAMS TS102 shims for 7mm valve stem diameter :

• Thickness: to suit your requirements
• Outside diameter: 10mm
