2.3L 8v - B230
Manufacturers
2.3L 8v - B230
Warning: Last items in stock!
New product

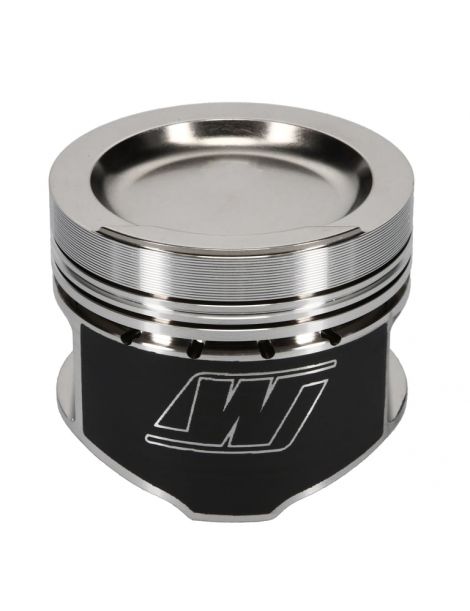

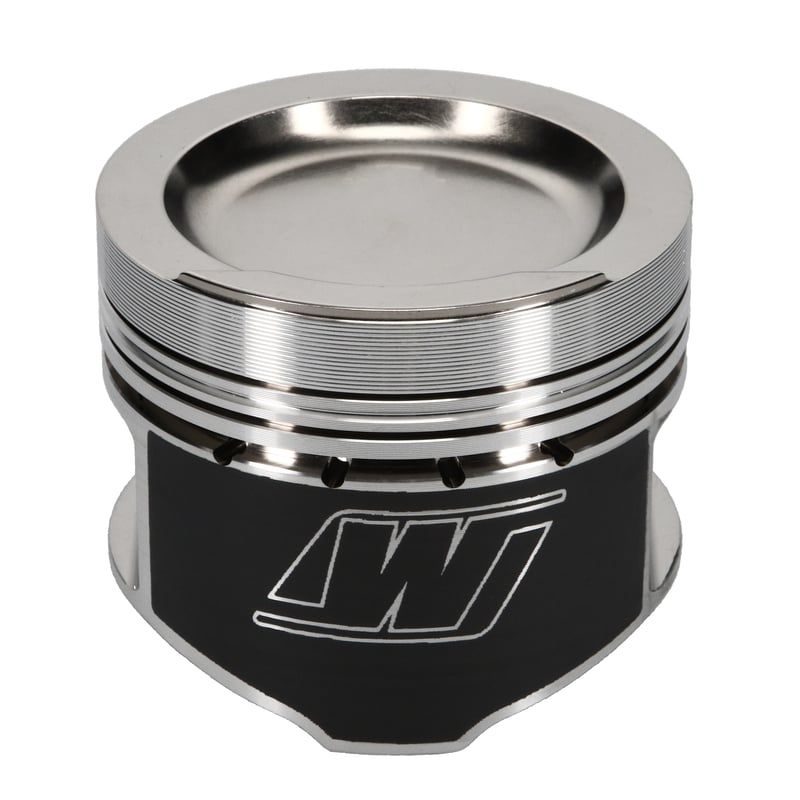

Forged pistons for Volvo B230 2.3 8V: Bores according to reference, RV according to reference, Pin 23 mm. COMPLETE table + 240/740/940 compatibilities.
Specifications of the forged pistons offered by NSB Concept for Volvo 2.3 L 8 V B230 :
| Reference | OEM Bore 96,00 mm | OEM CR 9,8 :1 | OEM Pin 23 mm | Height OEM Pin 39,70 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE208M96 | 96.00 | 8:1 | 24 | 46.38 | Wiseco | Skirt | 2618.0 | NC | -14.0 | NC | 9600XX |
| WKE206M96 | 96.00 | 8.2:1 | 23 | 38.9 | Wiseco | Skirt | NC | NC | -14.0 | NC | 9600XX |
| WKE208M9625 | 96.25 | 8:1 | 24 | 46.38 | Wiseco | Skirt | NC | NC | -14.0 | NC | 9625XX |
| WKE206M9625 | 96.25 | 8.2:1 | 23 | 38.9 | Wiseco | Skirt | NC | NC | -14.0 | NC | 9625XX |
| WKE208M965 | 96.50 | 8:1 | 24 | 46.38 | Wiseco | Skirt | NC | NC | -14.0 | NC | 9650XX |
| WKE206M965 | 96.50 | 8.2:1 | 23 | 38.9 | Wiseco | Skirt | 2618.0 | NC | -14.0 | NC | 9650XX |
| WKE208M97 | 97.00 | 8:1 | 24 | 46.38 | Wiseco | Skirt | 2618.0 | NC | -14.0 | NC | 3819XH |
| WKE206M97 | 97.00 | 8.2:1 | 23 | 38.9 | Wiseco | Skirt | 2618.0 | NC | -14.0 | NC | 3819XH |
Compatibility (engine codes):
Original vehicles equipped with the B230 2.3 8V :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Volvo | 240 (244/245) 2.3 | B230F | 114–116 hp | 1987 – 1993 |
| Volvo | 740 (744/745) 2.3 | B230E/B230F | 116–131 hp | 1985 – 1992 |
| Volvo | 740 Turbo (744/745) | B230FT | 155–165 hp | 1986 – 1992 |
| Volvo | 940 (944/945) 2.3 | B230F | 115–131 hp | 1990 – 1998 |
| Volvo | 940 Turbo (944/945) | B230FT/FK | 135–190 hp | 1991 – 1998 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
Forged pistons for Volvo B230 2.3 8V : bores depending on reference, CR depending on reference, pin 23 mm. table complete + compatibilities 240/740/940.
Forged pistons Volvo B230 2.3 8V – table complete
pistons Volvo B230 2.3 8V – specs, compatibilities 240/740/940, pin 23 mm. CR and bores depending on reference.
Volvo,B230,B230F,B230E,B230FT,B230FK,240,740,940,forged pistons,pin 23 mm
