Forged pistons 2.3L 20v VR5 VW

Condition: New product

Forged pistons for Volkswagen VR5 2.3 20v (AQN/AZX): bore 81.83 mm, axle 20 mm, RV OEM 10.8:1. Detailed specs, compatibilities, original vehicles and OEM references.

More details

More info
Reviews (0)

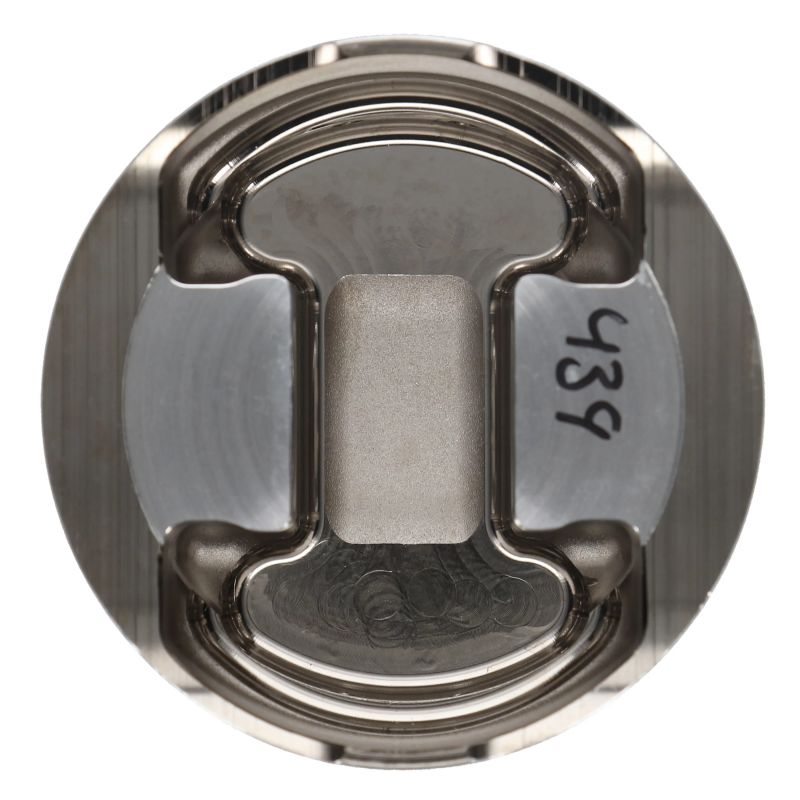

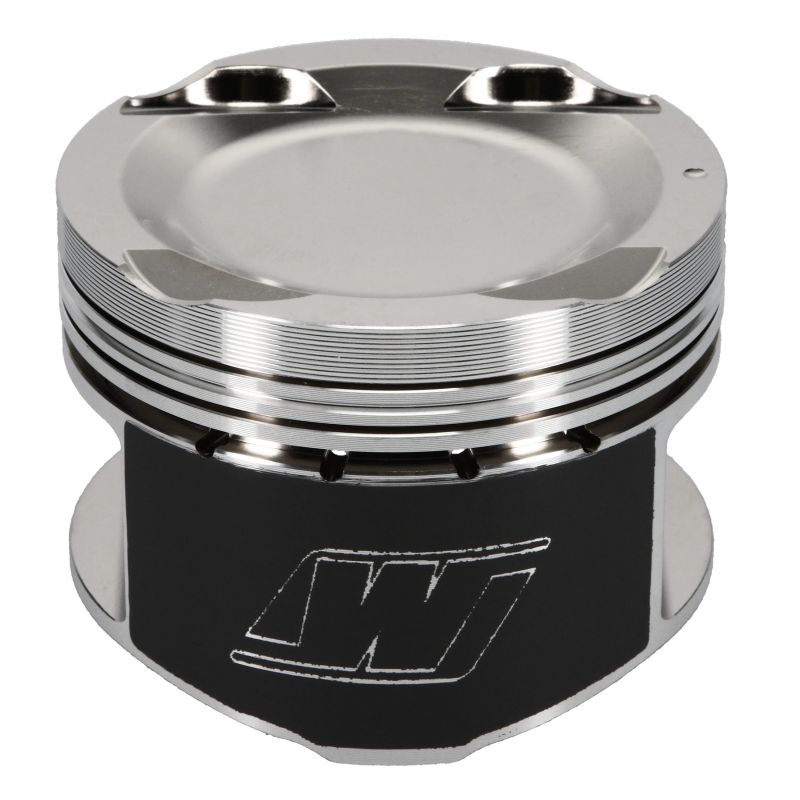

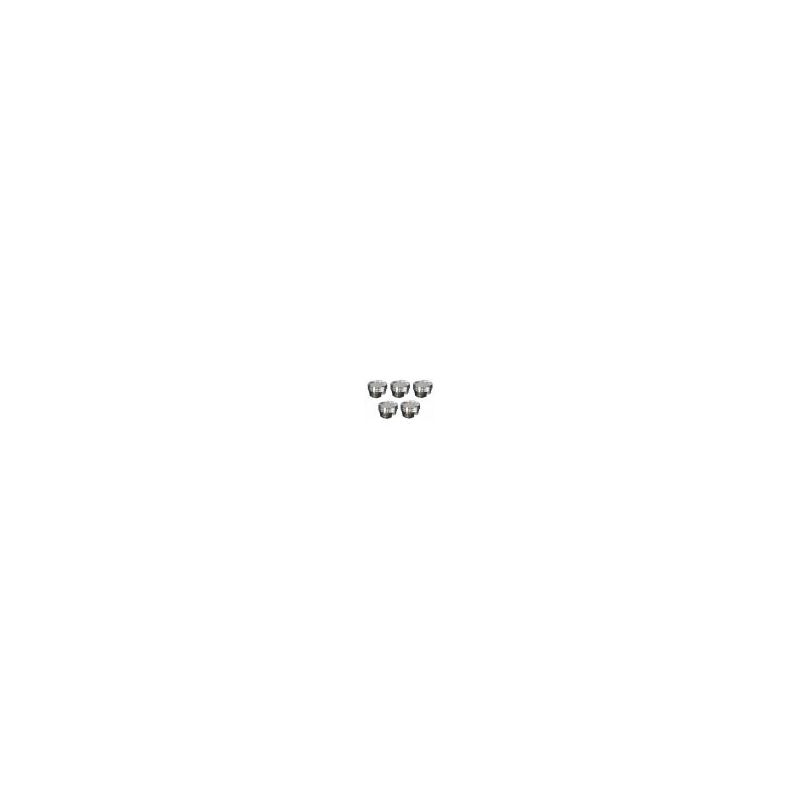

Characteristics of the forged pistons offered by NSB Concept for Volkswagen 2.3 L 20 V VR5 (AQN/AZX):

Reference	Bore OEM 81.00 mm	CR OEM	Pin OEM 20mm	Pin Height OEM 40.80mm	Range	Treatment	Aluminum	Forging	Dome	Weight	Rings

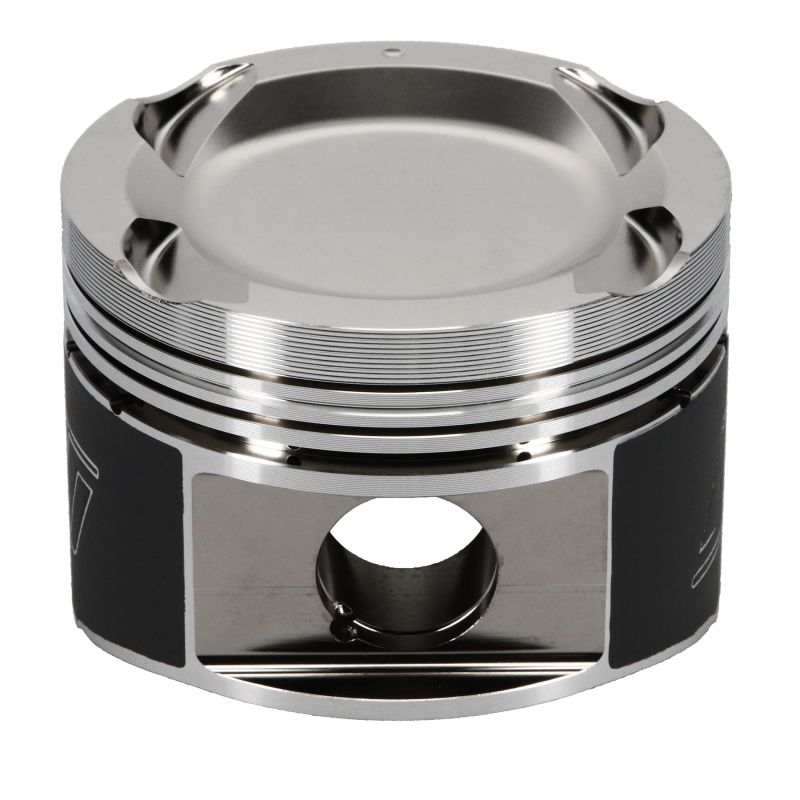

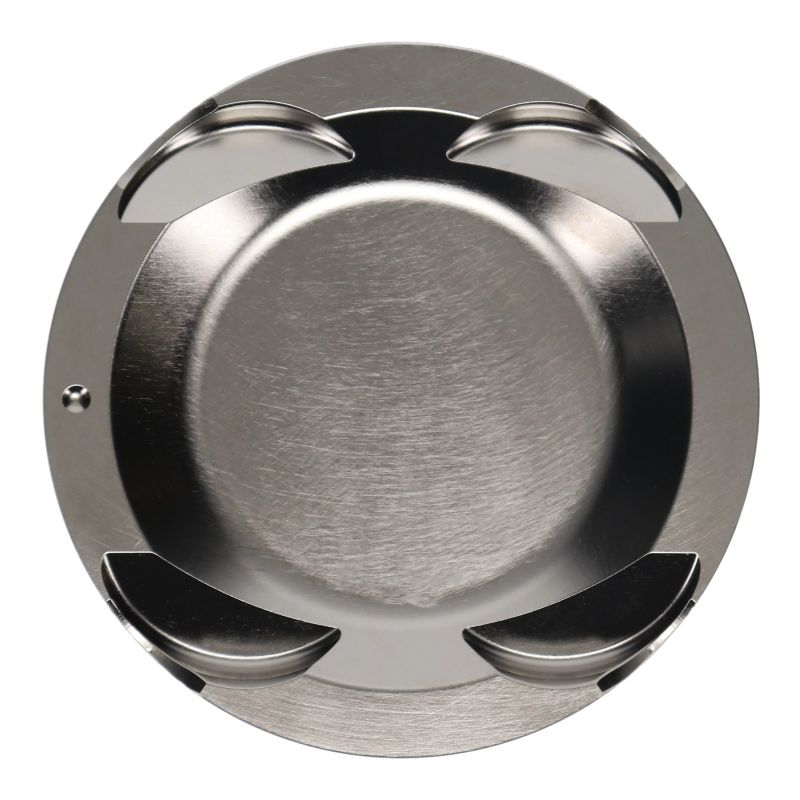

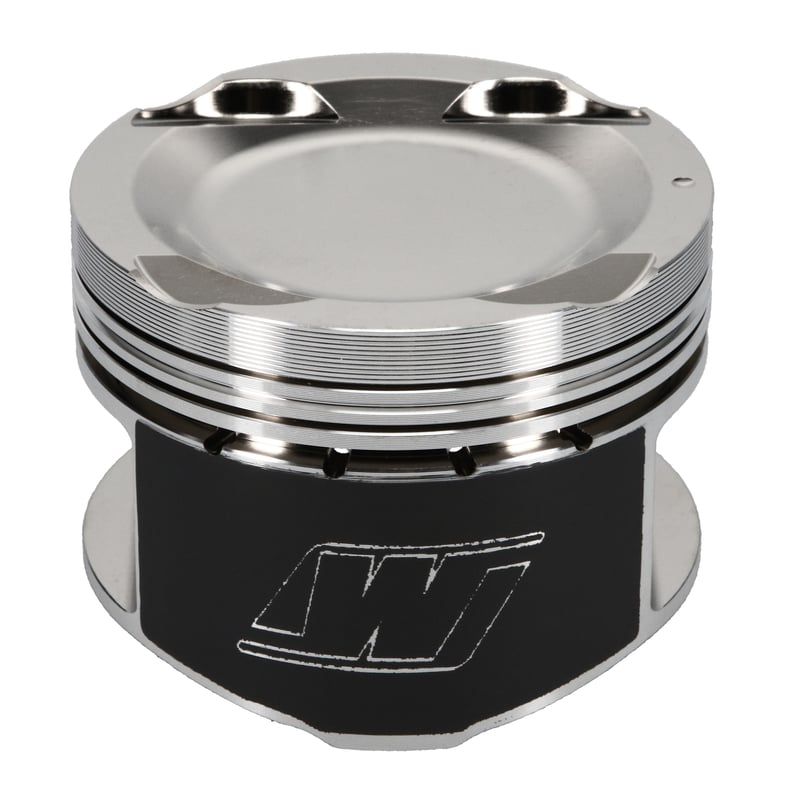

WKE203M81	81	8:1	20	37.1	Wiseco	Skirt	NC	NC	-20.2	NC	8100XX

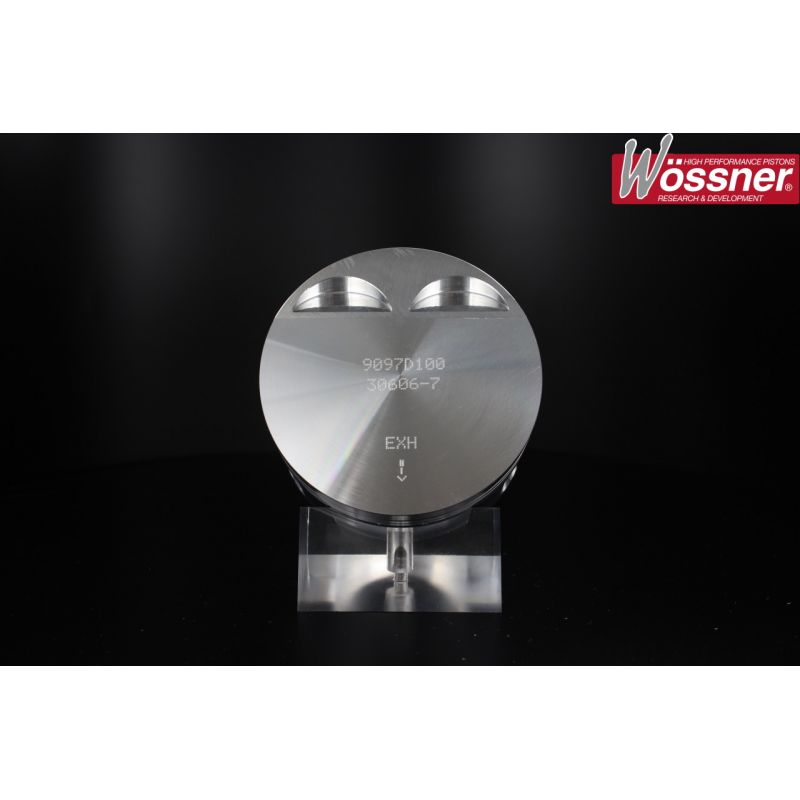

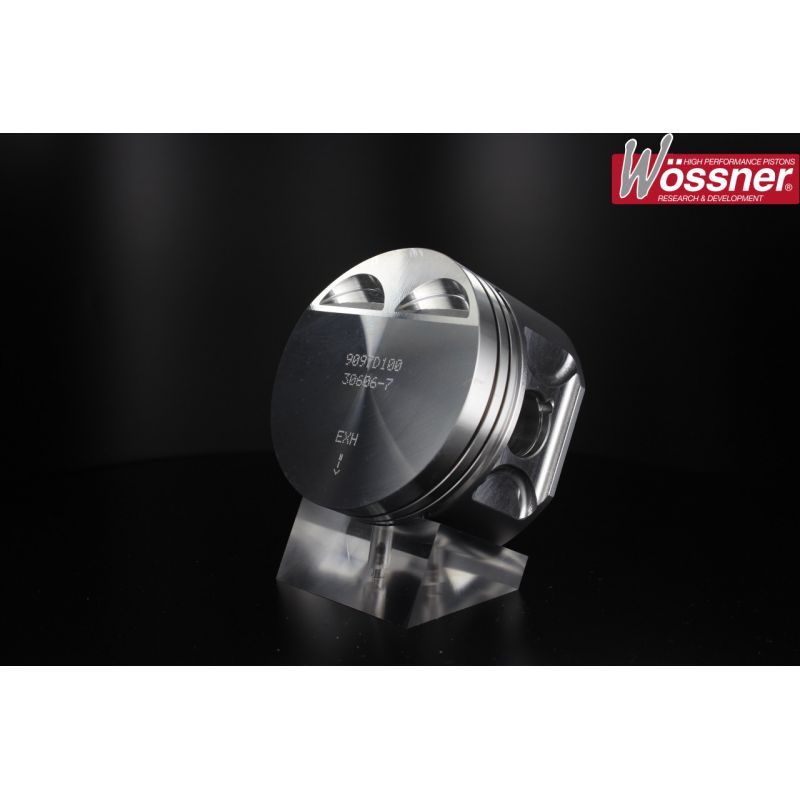

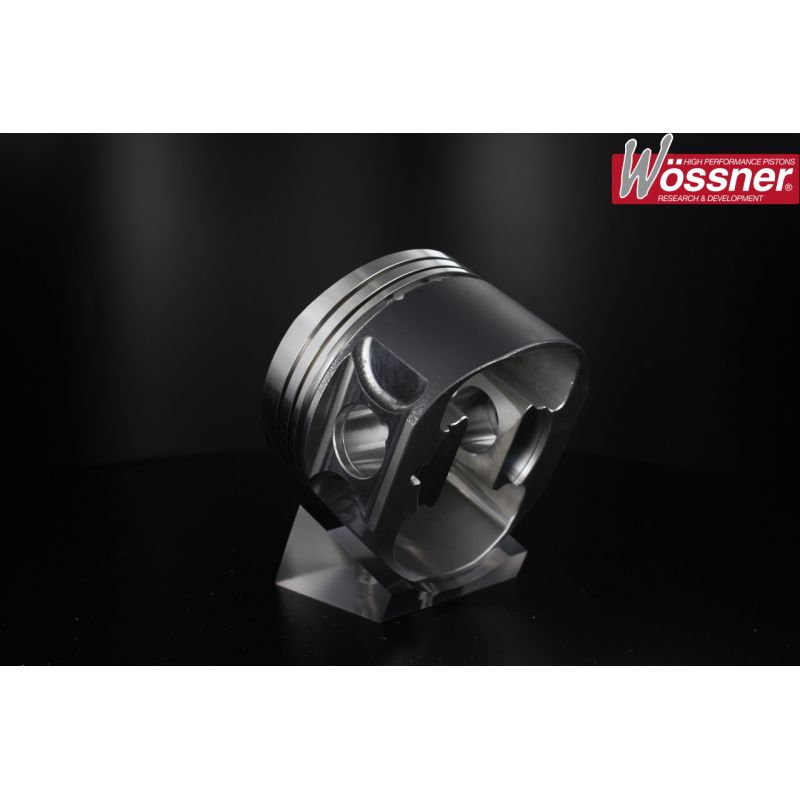

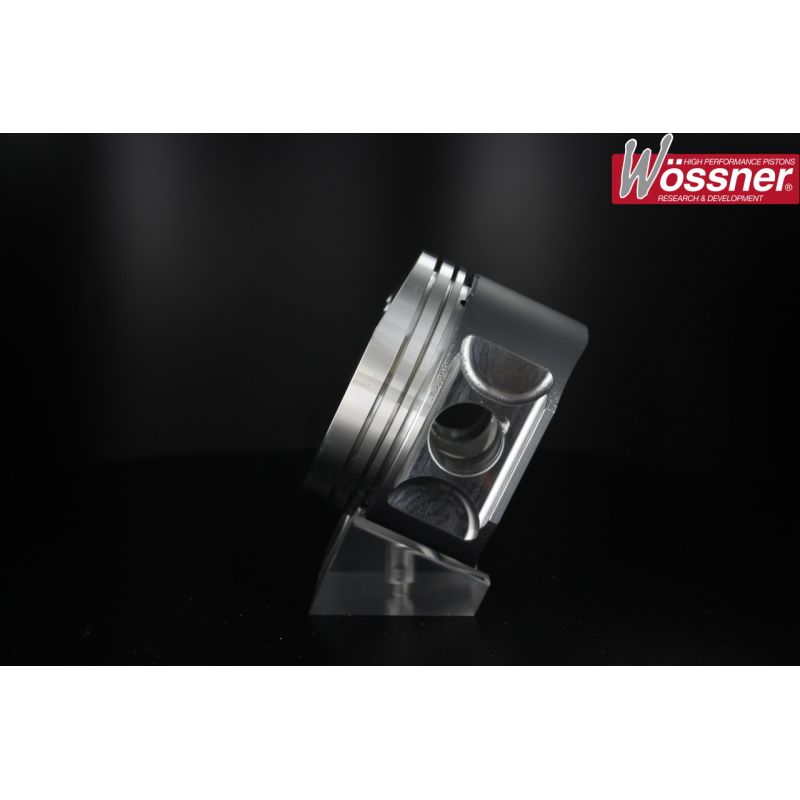

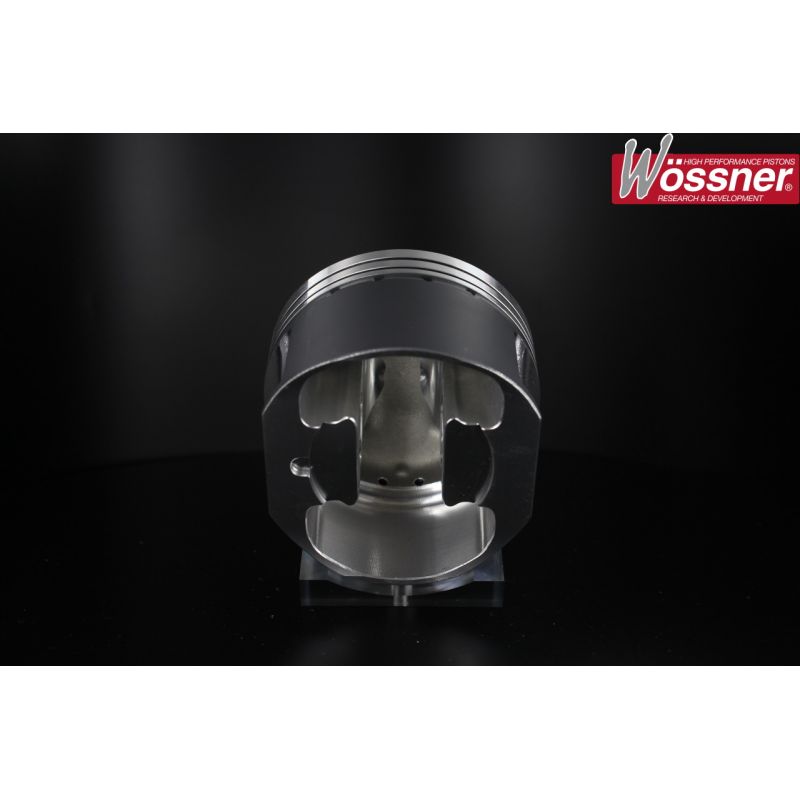

K9097DA	81	10.8:1	20	35.1	Wossner	NC	NC	NC	2.45	NC	810XPY
WKE203M8125	81.25	8:1	20	37.1	Wiseco	Skirt	NC	NC	-20.2	NC	8125XX
WKE203M815	81.5	8:1	20	37.1	Wiseco	Skirt	2618.0	NC	-20.2	NC	8150XX
WKE203M82	82	8:1	20	37.1	Wiseco	Skirt	NC	NC	-20.2	NC	8200XX
K9097D100	82	10.8:1	20	35.1	Wossner	NC	NC	NC	2.45	NC	820XPY
K9097D150	82.5	10.8:1	20	35.1	Wossner	NC	NC	NC	2.45	NC	825XPY
K9097D200	83	10.8:1	20	35.1	Wossner	NC	NC	NC	2.45	NC	830XPY

COMPatibilities (engine codes):

AQN 2.3 VR5 20v (Golf/Bora/Toledo/New Beetle, transverse)
AZX 2.3 VR5 20v (Passat B5.5, longitudinal)

Original vehicles equipped with VR5 2.3 20v:

Brand	Model	Engine Code	Power	Years
Seat	Toledo II (1M2) 2.3 V5 20v	AQN	170 hp	2000 2003
Volkswagen	Bora (1J2) 2.3 V5 20v	AQN	170 hp	2000 2005
Volkswagen	Bora Variant (1J6) 2.3 V5 20v	AQN	170 hp	2000 2005
Volkswagen	Golf IV (1J1) 2.3 V5 20v	AQN	170 hp	2000 2006
Volkswagen	Golf IV Variant (1J5) 2.3 V5 20v	AQN	170 hp	2000 2006
Volkswagen	New Beetle (9C) 2.3 V5 20v	AQN	170 hp	2000 2005
Volkswagen	Passat B5.5 (3B/3BG) 2.3 V5 20v	AZX	170 hp	2001 2005

Manufacturer Pistons References (OEM):

VW VR5 2.3 20v (AQN/AZX): 071 198 401 (set Piston+Rings), 022 107 065 G (Piston).

Attention:before any assembly, please check the integrity and conformity of each COMPONENT of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
